See the solution below in Explanation:
Solution:

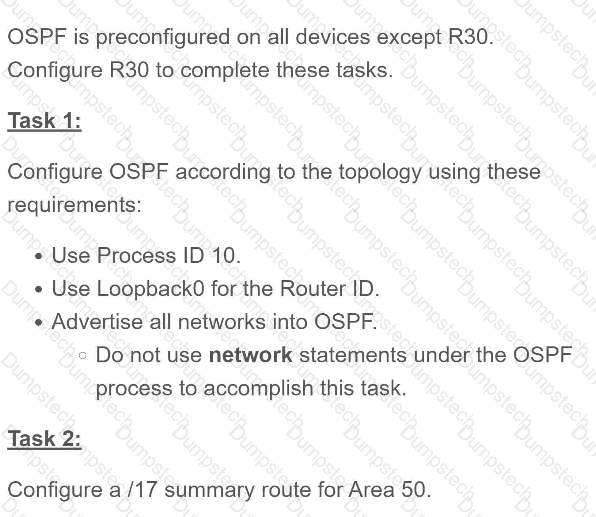

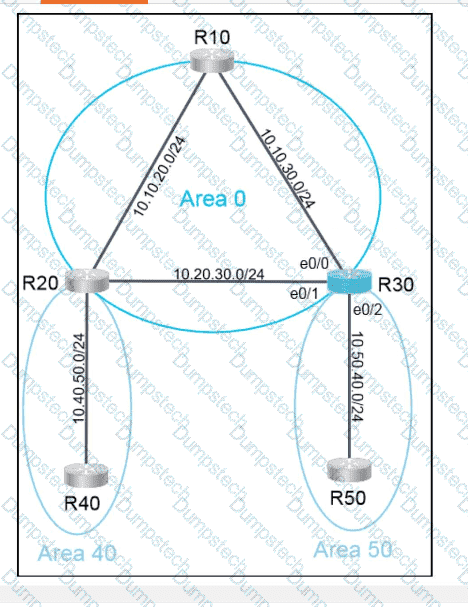

R30
Config t
router ospf 10
router-id 10.0.1.30
int ran lo0 , e0/0-1
ip ospf 10 a 0
exit
int et0/2
ip ospf 10 a 50
area 50 range 10.10.0.0 255.255.128.0
area 50 range 10.50.0.0 255.255.128.0
end

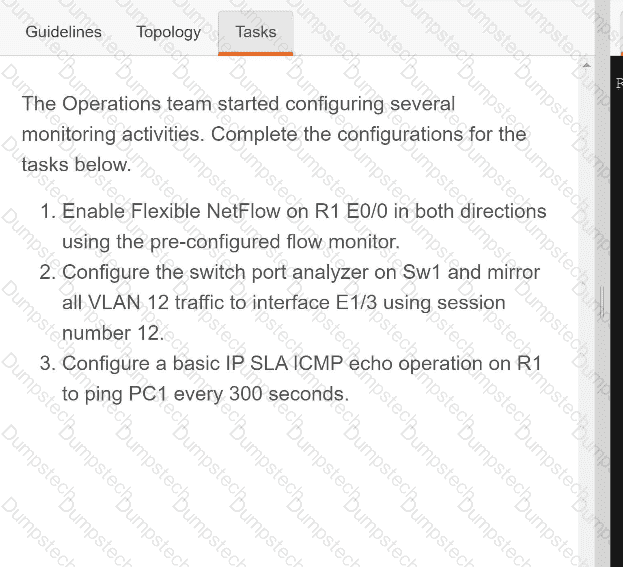

R1
Int et0/0
Ip flow monitor Monitor-R1Flow input
Ip flow monitor Monitor-R1Flow output
Exit
Ip sla 1
Icmp-echo 10.12.1.2
Freq 300
Ip sla schedule 1 life foreve start-time now
Sw1
Monitor session 12 source vlan 12
Monitor session 12 destination interface et1/3

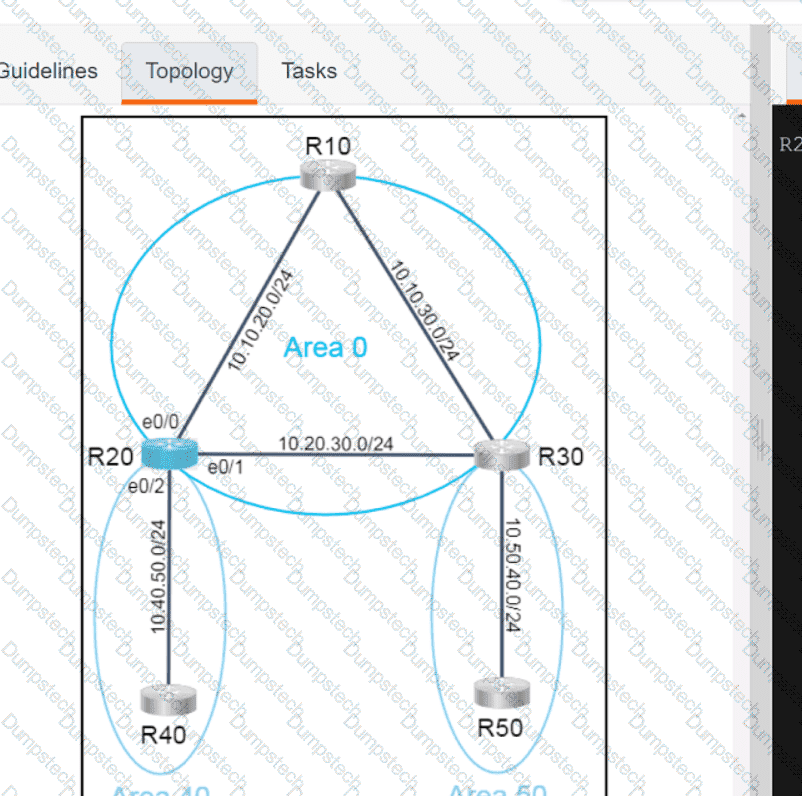

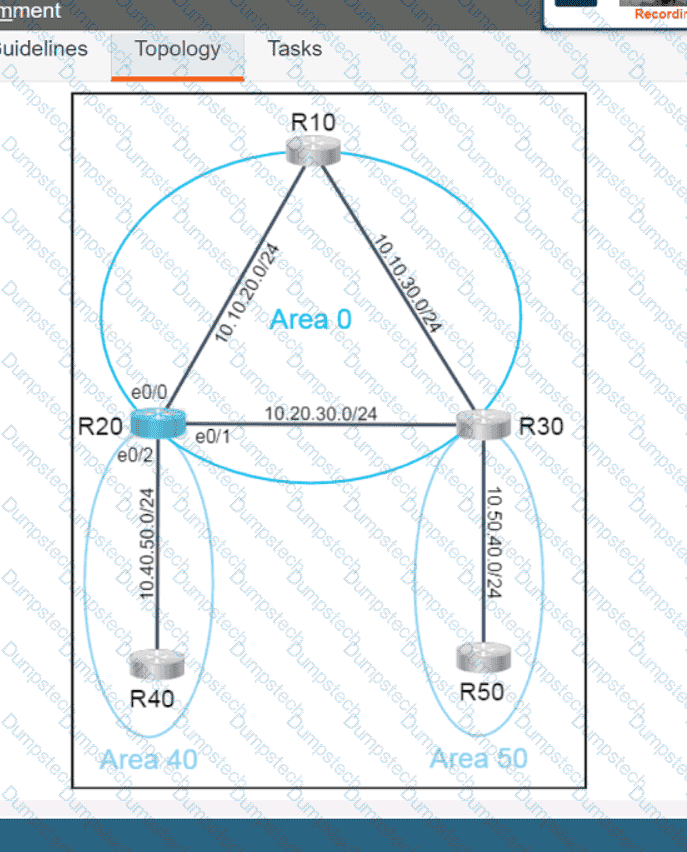

router ospf 100
ip ospf 100 a 0
ip ospf 100 a 50
router ospf 30
area 50 range 10.10.0.0 255.255.192.0
area 50 range 10.50.0.0 255.255.192.0
wr

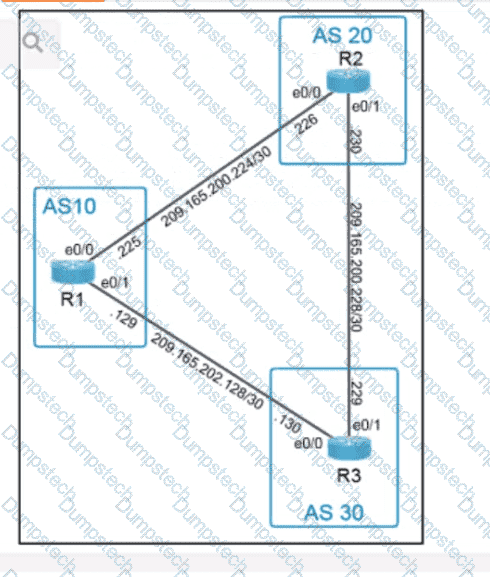

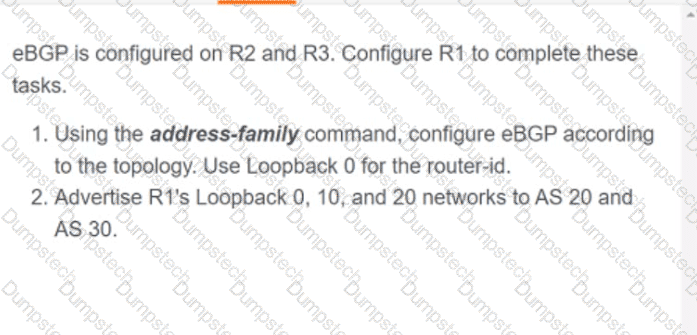

router bgp 10
bgp router-id 10.1.1.111
no bgp defa ipv4-unicast
nei 209.165.200.226 remote-as 20
nei 209.165.202.130 remote-as 30
address-family ipv4
neigh 209.165.200.226 activate
neigh 209.165.202.130 activate
network 10.1.1.10 mask 255.255.255.255
network 209.165.201.10 mask 255.255.255.255
network 209.165.201.20 mask 255.255.255.255
Solution:-
Copy run start
Solution on R1:
R1# copy run start
Verification:
OR

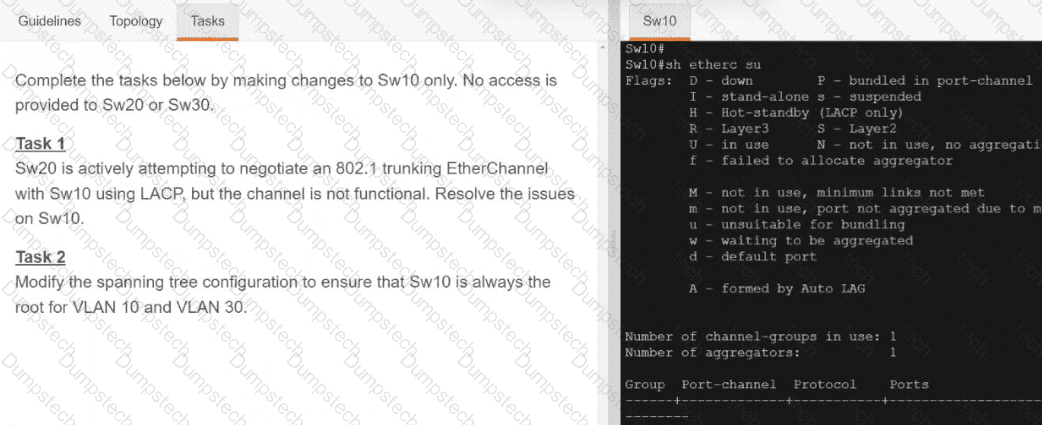

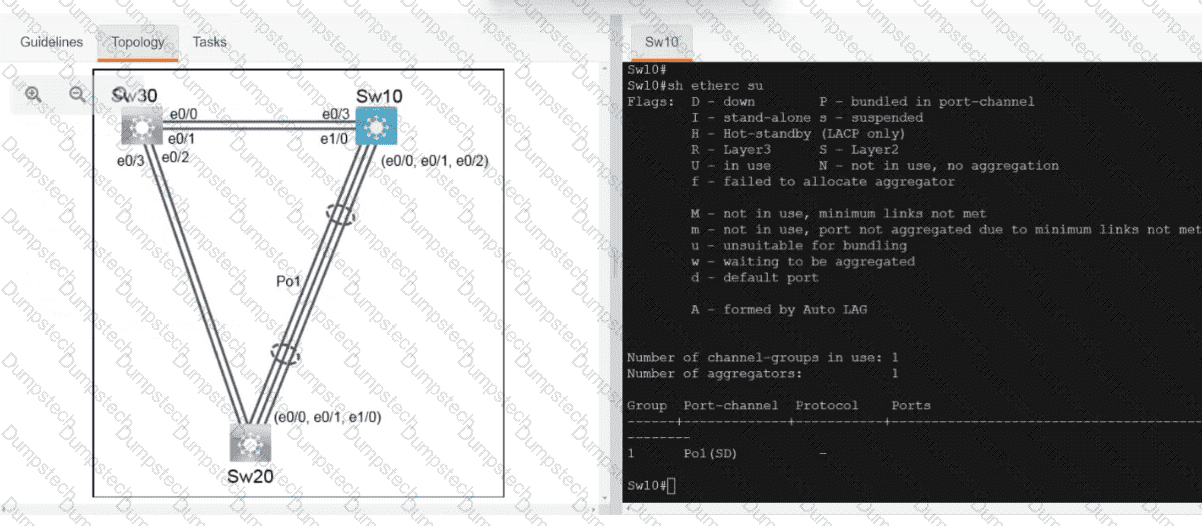

Sw10
no int po1
default int ran et0/0-2
int ran e0/0-2
switchport trunk encap dot1q
switchport mode trunk
channel-group 1 mode active
no shut

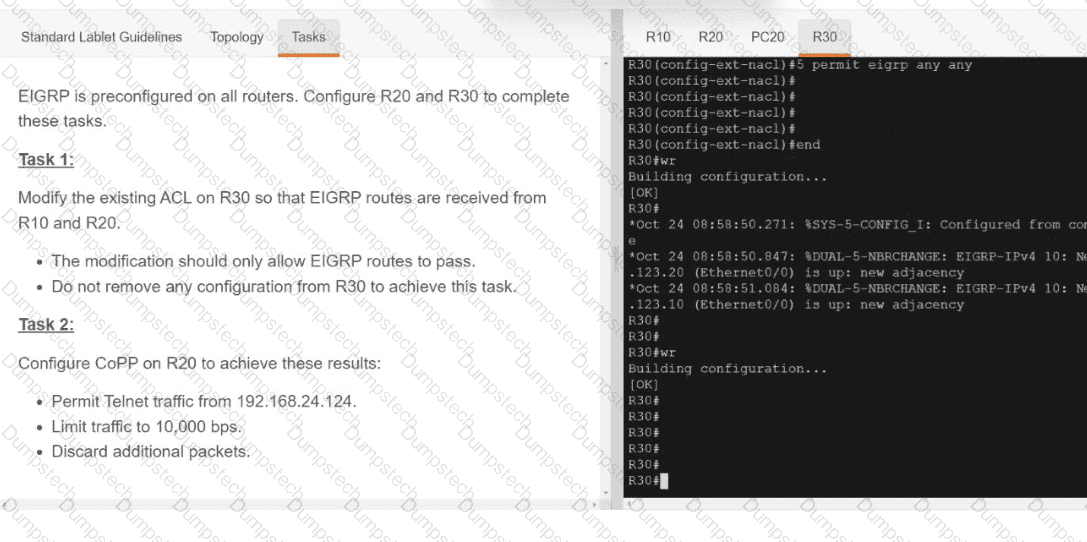

show ip access-list
config t
ip access-list extended 120
5 permit eigrp any any

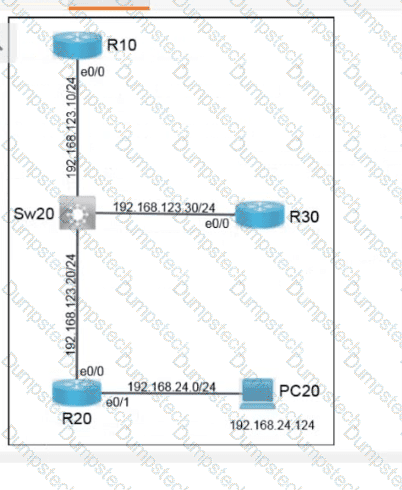

R20
ip access-list extended 100
permit tcp 192.168.25.0 0.0.0.255 any eq 23
class-map match-any TELNET
match access-group 100
policy-map CoPP
class TELNET
police 10000 conform-action transmit exceed-action drop
control-plane
service-policy input CoPP

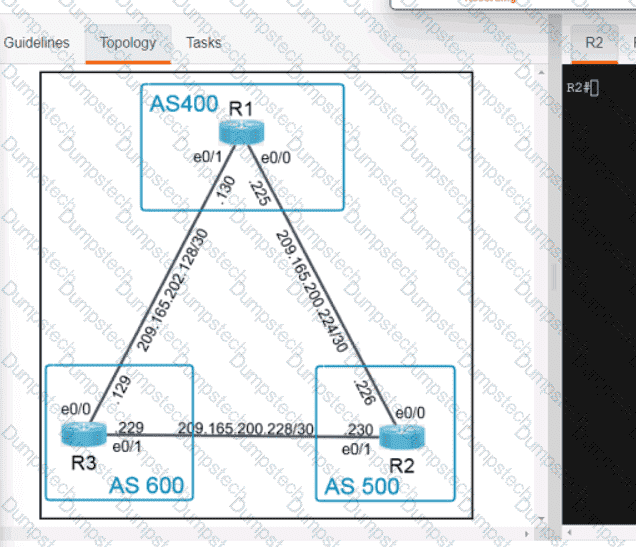

R2
ip access-list extended 151

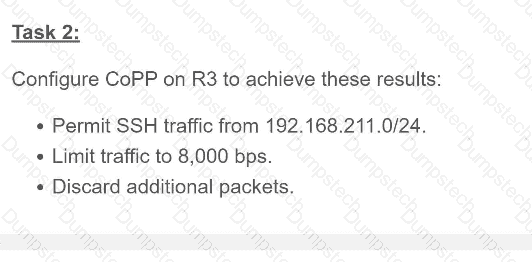

R3
permit tcp 192.168.211.0 0.0.0.255 any eq 22
class-map match-any SSH
class SSH
police 8000 conform-action transmit exceed-action drop

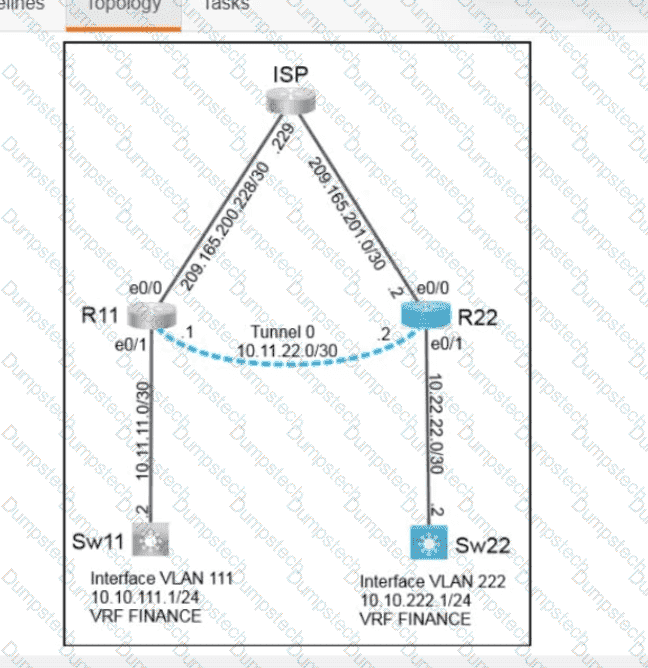

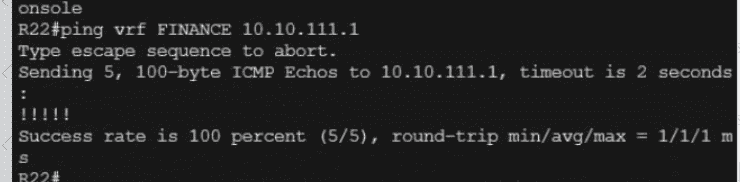

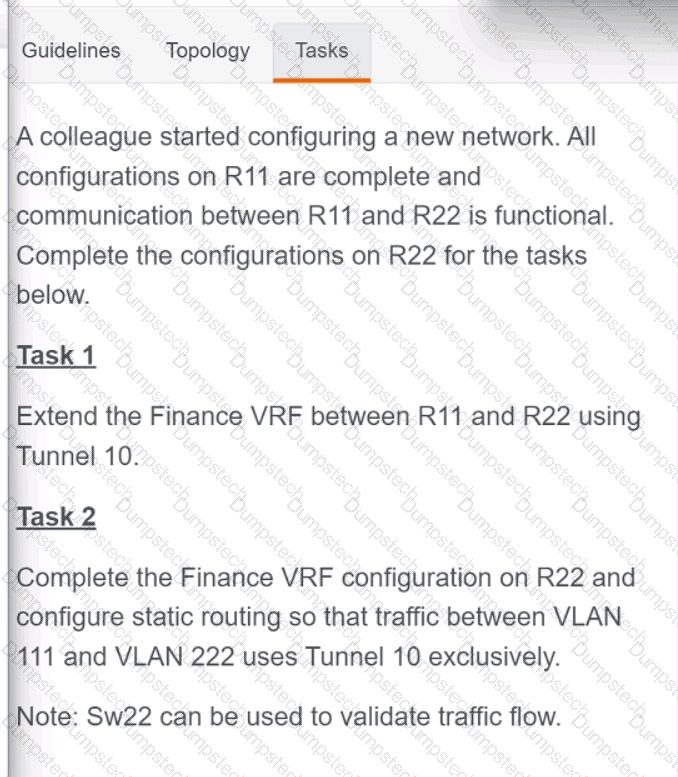

R22
int tunn0
vrf forwarding FINANCE
ip add 10.11.22.2 255.255.255.0
tunn so e0/0
tunn dest 209.165.200.230
int et0/1
vrf forward FINANCE
ip add 10.22.22.1 255.255.255.252
ip route vrf FINANCE 10.10.111.0 255.255.255.0 tunn0
