EIGRP’s convergence time is heavily impacted by the size of the query domain — the group of routers involved when a route goes into active state. The larger the query domain, the longer the convergence. Summarization naturally bounds query propagation because routers receiving a summary have no knowledge of individual prefixes beyond that summary, preventing them from being queried about specifics they don’t track.

This design technique is emphasized in CCDE v3.1 because:

Summarization reduces the query scope.

Faster convergence happens as fewer routers process queries.

Hierarchical design is enabled for stability and scalability.

Why other options are incorrect:

A: Distribute lists filter prefixes but don ' t reduce query propagation.

B and C: Triangulated or squared physical topology doesn’t control protocol-level query scope.

E: Default routes may help limited routing domains but don’t optimize EIGRP convergence specifically.

—

This scenario describes a centralized control mechanism where:

The SDN controller learns the network topology using BGP Link-State (BGP-LS).

The controller installs control-plane policies using protocols like PCEP or BGP.

Policies are pushed centrally and result in new RIB entries at the routers.

This is the hallmark of a centralized SDN architecture:

The controller has a global view and decision-making logic.

Routers remain relatively simple in the control plane and act on instructions.

This aligns with CCDE v3.1 under the “Technology Comparisons and Use Cases” topic, where SDN models are compared:

Centralized SDN (controller-driven)

Distributed SDN (traditional)

Hybrid (a blend of both, which is not represented here)

==========

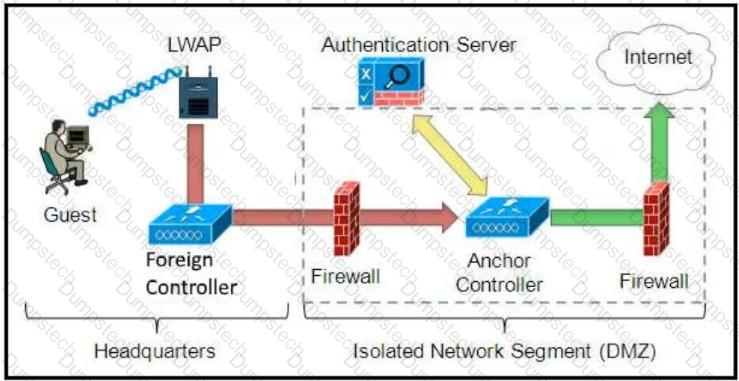

In Cisco Wireless Guest Anchor deployments, traffic between foreign and anchor controllers is typically tunneled using CAPWAP (Control and Provisioning of Wireless Access Points).

The CAPWAP tunnel operates over IP and can traverse MPLS VPN or VRF-Lite Layer 3 segmentation to maintain logical separation across different segments or geographic sites.

This allows end-to-end isolation of guest traffic from the enterprise network into the DMZ anchor location, as shown in the diagram.

Why other options are incorrect:

B: Unencapsulated traffic would expose guest traffic inside the enterprise network.

C: EoIP is not a standard Cisco wireless tunneling method.

D: IPinIP or IPsec tunnels are not typically used between WLCs for guest anchor tunneling.

In an IS-IS design, placing the Level-1/Level-2 (L1/L2) boundary at the core limits the extent of the flooding domain, improving scalability and stability.

By limiting Level-2 flooding to the core, instability or frequent changes in the access/distribution layers (typically Level-1) do not impact the core.

The core remains stable, while routing changes are isolated within the Level-1 domains.

Other options explained:

A: Overlapping domains are not a design objective.

B: This has no direct impact on Layer 1 complexity.

C: IS-IS design must match topology hierarchy; this is not universally applicable.

—

Just-in-time (JIT) manufacturing relies on precision timing and real-time data exchanges between production systems and external suppliers. Network latency can directly impact the efficiency and viability of such a system. For this reason, the architect must prioritize a network design that ensures minimal delay and rapid delivery of application and sensor data.

According to CCDE v3.1 design principles, when latency is tied directly to business outcomes (e.g., manufacturing workflow dependencies), the network must be designed with a focus on:

End-to-end low-latency infrastructure

Predictable jitter and delay control

Application prioritization mechanisms (QoS)

High availability and redundancy

This allows the manufacturer to optimize production throughput while reducing delays caused by communication lag with external component providers.

Why other options are incorrect:

A. Automation helps with operational efficiency, but it does not directly ensure low-latency communication.

B. Zero Trust is a security model, not latency-related.

D. Modularity is about design structure, not latency performance.

==========

B (Encrypt data when it is at rest and in motion): In hybrid cloud deployments, encryption is one of the most critical mechanisms to protect sensitive enterprise data both during storage (at rest) and while being transmitted (in motion). This ensures confidentiality and integrity across both private and public cloud environments.

Other options explained:

A: Using standard protocols is a general best practice but insufficient without encryption.

C: Communication of risks is part of compliance but does not enforce technical security.

D: Using standard protocols without encryption exposes data to risks.

—
