Pass the HP Aruba Certified Professional - Campus Access HPE7-A01 Questions and answers with Dumpstech

Spectrum Monitor is an Aruba AP mode that is sending captured RF data to Aruba Central for waterfall plot. Spectrum Monitor is a mode that allows an AP to scan all channels in both 2.4 GHz and 5 GHz bands and collect information about the RF environment, such as interference sources, noise floor, channel utilization, etc. The AP then sends this data to Aruba Central, which is a cloud-based network management platform that can display the data in various formats, including waterfall plot. Waterfall plot is a graphical representation of the RF spectrum over time, showing the frequency, amplitude, and duration of RF signals. The other options are incorrect because they are either not AP modes or not sending RF data to Aruba Central. References: https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/1-overview/spectrum_monitor.htm https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/1-overview/waterfall_plot.htm https://www.arubanetworks.com/products/network-management-operations/aruba-central/

The standard that is supported by some Aruba APs and can enable a customer to accurately locate wireless client devices within a few meters is A. 802.11mc.

802.11mc is an IEEE standard that enables computing devices to measure the distance to nearby Wi-Fi access points using a technique called Fine Timing Measurement (FTM). FTM uses precise timestamps to calculate the round-trip time of Wi-Fi frames between the device and the access point, and then converts it to a distance estimate. By using multiple access points and triangulation methods, the device can determine its location with high accuracy 1 .

According to the Aruba document 802.11mc Support , this feature is supported on 500 Series, 510 Series, 530 Series, 550 Series, 560 Series and 570 Series access points. These APs act as FTM responders to time measurement queries sent from a client. To configure the AP to send FTM responses, you need to enable the ftm-responder-enable parameter in the WLAN SSID profile 1 .

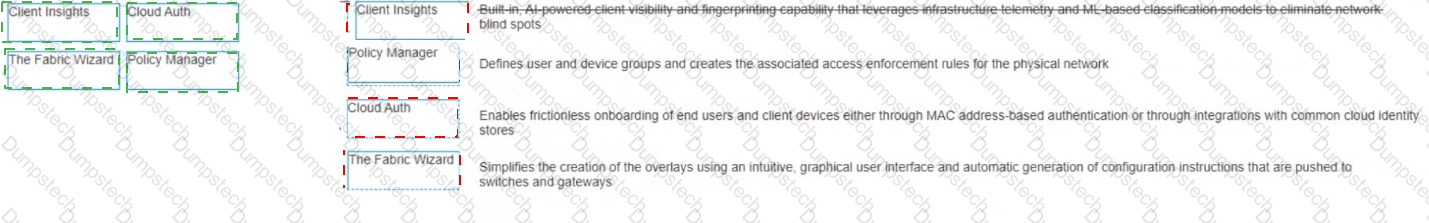

Client Insights  matches with  Built in , AI powered client visibility and fingerprinting capability that leverages infrastructure telemetry and ML based classification models to eliminate network bling spots

Client Insights is a solution component of NetConductor that provides built-in, AI-powered client visibility and fingerprinting capability that leverages infrastructure telemetry and ML-based classification models to eliminate network blind spots. Client Insights uses machine learning to automatically detect, identify, and classify devices on the network, such as IoT devices, BYOD devices, or rogue devices. Client Insights also provides behavioral analytics and anomaly detection to monitor device performance and security posture. Client Insights helps network administrators gain visibility into the device landscape, enforce granular access policies, and troubleshoot issues faster. References: https://www.arubanetworks.com/products/network-management-operations/central/netconductor/ https://www.arubanetworks.com/assets/wp/WP_NetConductor.pdf

Cloud Auth  matches with  Enables fictionless onboarding of end users and client devices either through MAC address-based authentication or through integrations with common cloud identity stores

Cloud Auth is a solution component of NetConductor that enables frictionless onboarding of end users and client devices either through MAC address-based authentication or through integrations with common cloud identity stores. Cloud Auth is a cloud-native network access control (NAC) solution that is delivered via Aruba Central. Cloud Auth allows network administrators to define user and device groups, assign roles and policies, and enforce access control across wired and wireless networks. Cloud Auth supports MAC authentication for devices that do not support 802.1X, as well as integrations with cloud identity providers such as Azure AD, Google Workspace, Okta, etc. References: https://www.arubanetworks.com/products/network-management-operations/central/netconductor/ https://www.arubanetworks.com/assets/wp/WP_NetConductor.pdf

The Fabric Wizard  matches with  Simplifies the creation of the overlays using an intuitive graphical user interface and automatic generation of configuration instructions that are pushed to switches and gateways

The Fabric Wizard is a solution component of NetConductor that simplifies the creation of the overlays using an intuitive graphical user interface and automatic generation of configuration instructions that are pushed to switches and gateways. The Fabric Wizard is a tool that allows network administrators to design, deploy, and manage overlay networks using VXLAN and EVPN protocols. The Fabric Wizard provides a graphical representation of the network topology, devices, and links, and allows users to drag and drop virtual components such as VRFs, VLANs, and subnets. The Fabric Wizard also generates the configuration commands for each device based on the user input and pushes them to the switches and gateways via Aruba Central. References: https://www.arubanetworks.com/products/network-management-operations/central/netconductor/ https://www.arubanetworks.com/assets/wp/WP_NetConductor.pdf

Policy Manager  matches with  Defines user and device groups and creates the associated traffic routing and access enforcement rules for the physical network

Policy Manager is a solution component of NetConductor that defines user and device groups and creates the associated traffic routing and access enforcement rules for the physical network. Policy Manager is a tool that allows network administrators to create and manage network policies based on user and device identities, roles, and contexts. Policy Manager uses Group Policy Identifier (GPID) to carry policy information in traffic for in-line enforcement. Policy Manager also integrates with Cloud Auth, ClearPass, or third-party solutions to provide flexible network access control. References: https://www.arubanetworks.com/products/network-management-operations/central/netconductor/ https://www.arubanetworks.com/assets/wp/WP_NetConductor.pdf

The show arp command displays the ARP table for a specific VRF or all VRFs on the switch. The ARP table contains the IP address to MAC address mappings for hosts that are directly connected to the switch or reachable through a gateway. If the client device is connected to another switch by VSX LAG, the ARP entry for the client device will not be present on the primary switch unless it has communicated with it recently. Therefore, to find the IP address of the client device, the administrator should run the show arp command on the secondary switch in the VSX pair, specifying the VRF name that contains the client device’s subnet. References: https://techhub.hpe.com/eginfolib/Aruba/OS-CX_10.04/5200-6692/GUID-9B8F6E8F-9C7A-4F0D-AE7B-9D8E6C5B6A7F.html

The reason is that AOS 10.x does not support clustering gateways with different versions in the same cluster profile. A cluster profile defines the configuration settings for a group of gateways that are managed by Aruba Central.

According to the Aruba documentation 2 , “You can combine 7200 Series and 7000 Series gateways in the same cluster with a maximum size of four devices with reduced AP client capacity on 7000 Series gateways.”
