The Huawei flash-storage feature table defines SmartThin as “Intelligent thin provisioning.” Therefore, when the provisioning type is configured for thin provisioning, the associated feature is SmartThin.

The DME Storage course separately states that block-storage service levels support resource-tuning policies for Thin/Thick mode, deduplication and compression, and SmartTier. These are separate resource-tuning dimensions.

SmartTier concerns data placement among storage tiers, SmartCompression performs data reduction by compression, and SmartDedupe eliminates duplicate data. None of those features defines whether a LUN is thinly or thickly provisioned. SmartThin is specifically the capacity-allocation technology that exposes a logical capacity while allocating physical storage according to actual consumption.

Thus, among the four choices, SmartThin is the license/feature corresponding to the requested provisioning type.

The retrieved course material clearly maps SmartThin to intelligent thin provisioning and DME to Thin/Thick resource tuning; the exact licensing dialog wording is not separately reproduced in the parsed Training/Lab pages.

Study Guide Topics: Data Storage Management and O & M → DME Storage → Block Storage Service Level → Resource Tuning → Thin Provisioning → SmartThin.

The OceanProtect product-series section identifies X6000, X8000, and X9000, and shows X6000 as the mid-range platform and X8000/X9000 as higher-end systems. It also documents that OceanProtect supports both scale-up and scale-out, with a scale-out system reaching up to 9.2 PB physical capacity and 155 TB/hour. The software architecture further places multi-device management in the OceanProtect management layer, which is the basis for centrally managing multiple backup-storage nodes as one protection environment. For hybrid clustering, the higher-capability platform assumes the cluster-management roles while compatible lower-tier systems act as members. Therefore, X8000 can head a cluster containing X6000 members, and X9000 can head a cluster containing X8000 members. X3000 belongs to a different product category and is not mixed with X6000 in the proposed configuration.

Study Guide Topics: OceanProtect Backup Storage → Product Overview → Product Series → Scale-Up and Scale-Out → Software Architecture → Multi-device Management.

The command required is:

show upgrade package

The storage O & M section distinguishes current-version inspection from upgrade-package and historical-version management. For the current running version, the Training Materials explicitly instruct the administrator to log in to the CLI as a super administrator, run show system general, and check Product Version.

Historical upgrade information is associated with the software upgrade/package subsystem rather than the general system-information query. Therefore, show upgrade package is used to display information about storage-system upgrade packages and the historical software-version information retained by the system.

This distinction is operationally important. show system general tells the engineer what software version is currently active, whereas show upgrade package is used when examining the upgrade history/package information maintained by the controller environment. Huawei ' s O & M course also treats controller upgrades as a controlled lifecycle process involving imported upgrade packages, pre-upgrade inspection, upgrade execution, and result verification.

Study Guide Topics: Data Storage Management and O & M → Storage System Operation Management → Version Information → Controller Software Upgrade → Upgrade Package Management.

Huawei explains that a file-system snapshot is a point-in-time copy. When source data changes, ROW writes the new data to another location while the snapshot continues to reference the original data, thereby preserving the source file system ' s state at snapshot creation time.

The statement is TRUE. Snapshot rollback changes the active file-system data state back to the selected protection point. Active NAS clients must therefore not continue issuing file operations against the source file system while that authoritative state is being replaced. The host share is unmounted before rollback so that active client I/O cannot conflict with restoration of snapshot metadata and data mappings.

The HCIE materials also show the same operational consistency principle in rollback workflows: upper-layer service access is stopped before storage state is reverted. In the Lab Guide ' s rollback procedure, the first action is to stop upper-layer service access and unmount the relevant file system before storage mappings are changed.

This ensures that the post-rollback file system presents one internally consistent point-in-time image when service access resumes.

Study Guide Topics: Data Storage Technology Presentation → HyperSnap → File System Snapshot → ROW → Snapshot Rollback → NAS Data Consistency.

The statement is FALSE because it incorrectly places the application-side backup plug-in inside the OceanProtect appliance.

Huawei ' s OceanProtect architecture separates the ProtectManager/DataMoveEngine components on the protection system from ProtectClient components that protect application data on hosts. The course specifically states that ProtectClient protects host application data and that the application being protected determines which agent software is installed.

The database-protection workflow therefore uses OceanProtect to schedule and coordinate the job, while application-aware operations are performed through the client/agent located with the protected database environment. In analogous Huawei database workflows, DataMoveEngine creates backup storage space, instructs ProtectClient to start the backup operation, ProtectClient mounts the storage space, and the host-side application plug-in invokes the database-specific backup mechanism.

Thus, even though Oracle RMAN is Oracle ' s native backup/recovery technology, saying that an RMAN plug-in in the appliance directly invokes the database interface misrepresents the architecture. Application-aware execution occurs through the protection client/agent associated with the Oracle host.

Study Guide Topics: Data Protection Solution → OceanProtect → Database Backup → ProtectClient → RMAN → ProtectManager/DataMoveEngine.

Huawei states that “HyperLock is also called the Write Once Read Many (WORM) feature” and that it protects the integrity, confidentiality, and accessibility of stored data. The course further explains that with WORM, data can be written once and then cannot be rewritten, modified, deleted, or renamed during the protection period.

Therefore, HyperLock is the critical function for this requirement. Encryption protects data confidentiality, but encrypted backup data could still be deleted or maliciously overwritten if the attacker obtains sufficient privileges. Network isolation and stronger authentication reduce the attack surface, but neither provides the immutable-copy property specified in the scenario.

HyperLock establishes that immutable recovery layer. Even if ransomware compromises production data or attempts to destroy backup copies, properly locked backup data remains protected against unauthorized alteration or deletion throughout the retention period. This is precisely the security property needed when backup data must form the final recovery boundary against ransomware.

Study Guide Topics: Data Protection Solution → OceanProtect Backup Storage → High Security Design → HyperLock → WORM → Ransomware Protection.

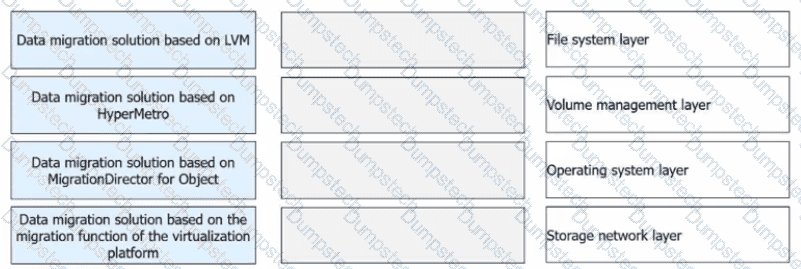

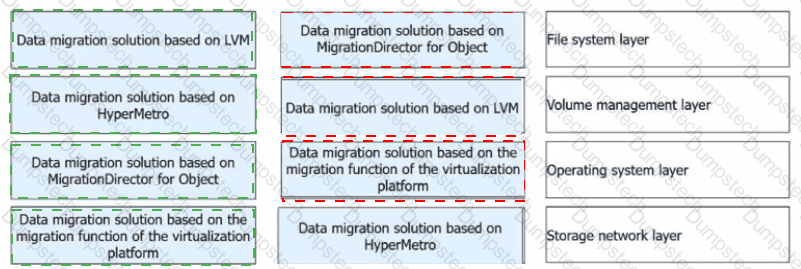

Data migration solution based on MigrationDirector for Object → File system layer; Data migration solution based on LVM → Volume management layer; Data migration solution based on the migration function of the virtualization platform → Operating system layer; Data migration solution based on HyperMetro → Storage network layer

The supplied practice-set answer maps the four migration approaches as shown above. Huawei’s migration architecture organizes migration technologies according to where the migration function is implemented in the host/storage stack. LVM-based migration operates through host volume management, while virtualization-platform migration uses capabilities supplied by platforms such as VMware or FusionCompute. HyperMetro/HyperReplication-based migration operates at the storage-network/storage-system level and moves or mirrors storage data independently of application logic.

There is one important source inconsistency in this item: the official Training Materials’ “Technical Structure of Huawei Storage Migration Solutions” explicitly places Migration Director for Object under the Object layer, while it separately associates the file-system layer with NAS migration. Therefore, the first match in the supplied question key does not align with the official training diagram.

For this practice set, the answer above reproduces the supplied key; for study purposes, remember that Huawei’s official architecture classifies object migration at the Object layer.

Study Guide Topics: Data Migration Solution → Huawei Migration Architecture → LVM → Virtualization Platform → MigrationDirector → HyperMetro.

The correct selections are IPMI, RESTful, and Redfish.

Huawei describes DME as “the unified management software integrating software and hardware for data centers” and states that it controls, manages, and analyzes VMs, datastores, databases, servers, switches, and storage devices.

For API-oriented integration, RESTful is explicitly part of Huawei ' s DME architecture. The storage-management course states that the open southbound system manages storage, switch, and host resources through management protocols including RESTful.

IPMI and Redfish provide the hardware-management interfaces required when the management platform interacts with server/BMC infrastructure. Redfish supplies a modern REST-oriented hardware-management model, while IPMI provides established out-of-band platform-management functions.

Telnet is not selected. It is a legacy plaintext terminal protocol and is not an appropriate protocol for the hardware/API interconnection functions being tested in this DME management architecture.

Study Guide Topics: Data Storage Management and O & M → DME/eDME → Unified Data Center Management → Southbound Interconnection → Server Hardware Management.

The supplied HCIE-Storage question set identifies A, B, and C as correct.

Link compression is an inter-array transmission optimization associated with HyperReplication. Because it operates on the replication path rather than in the host/application data path, it is transparent to the application server. The host continues to perform ordinary reads and writes against the primary storage system while HyperReplication handles the remote synchronization process.

Huawei describes HyperReplication as the core technology used to synchronize copies of local data to a remote storage system and distinguishes synchronous and asynchronous replication modes. For asynchronous replication, changed data is collected and transferred to the secondary system according to the replication period. Compression can therefore be applied inline to the transmission stream to reduce required WAN bandwidth.

Option D is not part of the keyed link-compression sequence. The retrieved Training Materials establish the HyperReplication transport and consistency mechanisms, but the parsed course text available here does not provide a detailed link-compression processing sequence that independently substantiates the specific “decompress first, then verify” assertion. Therefore, that additional sequence should not be inferred.

Study Guide Topics: Data Protection Solution → HyperReplication → Remote Replication Link → Link Compression → Bandwidth Optimization.

The HCIE Lab Guide states: “For bond ports of the Bond4 type on the host, the dynamic LACP mode must be configured for the bond ports on the switch.”

Therefore, the correct selection is B. Mode 4.

Mode 4 corresponds to the Bond4/LACP-based link-aggregation design used where multiple physical Ethernet links operate as one logical connection. When front-end switches are deployed as an M-LAG pair, link aggregation can span the two physical switches while presenting a single logical aggregation relationship toward the connected system.

This design is specifically appropriate for switch-port and link redundancy. If one member link or one associated switch-side port fails, the remaining member links continue carrying traffic without requiring the logical storage interface to be taken offline. It also enables bandwidth aggregation under normal conditions.

The Lab Guide ' s networking principles distinguish this from simple standalone interfaces and explicitly require dynamic LACP on the switch side when Bond4 is used. That requirement aligns with an M-LAG front-end design where resilient link aggregation is required across redundant switches.

Study Guide Topics: Data Protection Solution → OceanProtect Network Planning → Front-End Storage Network → Bond4 → Dynamic LACP → M-LAG.
