In Junos OS, there is a distinct difference between show commands and monitor commands. While show commands provide a static snapshot of the current state of the device or its interfaces at the moment the command is executed, monitor commands provide dynamic, real-time updates. To view live traffic statistics across all physical and logical interfaces, the correct command is monitor interface traffic.

When this command is executed, the CLI enters an interactive text-based interface (TUI) that displays a list of interfaces along with their input and output rates in bits per second (bps) and packets per second (pps). The display refreshes automatically (usually every few seconds), allowing an administrator to observe traffic spikes or drops as they occur without manually re-running a command. This is an invaluable tool for troubleshooting congestion or verifying that traffic is flowing as expected after a configuration change. Commands like show interfaces extensive provide significantly more detail—including error counters and physical layer parameters—but they are not real-time and require manual execution to update the statistics. The monitor interface traffic command simplifies the view to focus specifically on throughput metrics across the entire device. Reference: Operational Monitoring and Maintenance, Interface Monitoring, Real-time Statistics.

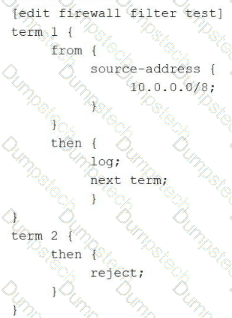

Junos OS firewall filters operate on a sequential, " first-match " logic, but their behavior is significantly influenced by the use of terminating versus non-terminating actions. In this exhibit, a packet with a source address of 10.0.0.0/8 is evaluated against the filter named test.

Evaluation begins with term 1 . The packet matches the source-address criteria, triggering the actions defined in the then statement. The first action is log, which sends the packet header information to the firewall task buffer for logging. The second action is next term . This is a critical non-terminating action ; it instructs the Packet Forwarding Engine (PFE) to continue the evaluation process using the subsequent term in the filter rather than stopping after the match.

Evaluation then moves to term 2 . Because term 2 contains no from match conditions, it acts as a " catch-all " for any traffic that reaches it. The action in this term is reject . This is a terminating action that discards the packet and sends an ICMP " destination unreachable " message back to the source. Therefore, the packet is first recorded by the logging process and is subsequently dropped by the rejection mechanism. If next term had not been present in term 1 , the packet would have been implicitly accepted (as any matched term without a terminating action like discard, reject, or accept defaults to an implicit accept in that specific term). However, the explicit instruction to move forward ensures the packet hits the reject statement.

In the Junos OS architecture, maintaining a reliable recovery point is a critical post-installation task. While the system automatically archives previous configurations as " rollback " files every time a commit is performed, these files are transient and can eventually be rotated out of the default 50-file history as new changes are made. To ensure a permanent and reliable recovery state, a Senior Architect should manually create a rescue configuration .

The rescue configuration is a specifically designated file used to restore a device to a known-working state if it becomes unreachable or the configuration becomes corrupted. Unlike standard rollbacks, the rescue configuration is only created or updated when an administrator explicitly issues the operational mode command request system configuration rescue save. This ensures that even if several subsequent commits flush the desired initial state from the standard rollback archive, the " safe harbor " configuration remains intact on the storage media. This state can then be re-activated via the rollback rescue command in configuration mode followed by a commit. Setting a rescue configuration after the initial setup is a foundational best practice for disaster recovery and operational stability, providing a " last resort " configuration that is immune to the automated rotation of the commit history.

Creating a new user account in Junos OS involves several specific steps within the [edit system login] configuration hierarchy. To establish a functional and secure user account, an administrator must first define the username and assign that user to a login class. Login classes are essential because they define the permissions and access levels for the user, such as super-user, read-only, or operator. Without a login class, a user would have no permissions to perform tasks within the CLI.

The second mandatory task is to configure an authentication method for the user, most commonly a password. This is typically done using the authentication plain-text-password command, which prompts the administrator to enter and confirm the secret string that the system then hashes and stores. While Junos also supports public-key authentication for SSH, a local password remains the standard for basic access control. It is important to note that SSH access is generally controlled at the system level under [edit system services] and does not need to be enabled on a per-user basis individually. Furthermore, allowing a user to bypass authentication is contrary to the Junos security model and is not a standard task in user account creation. Reference: User Interfaces, User Management, Login Classes.

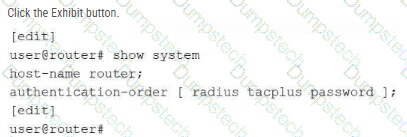

In the Junos OS architecture, the authentication-order statement within the [edit system] hierarchy defines the sequence in which the device attempts to validate user credentials against external and internal databases. The order specified in the exhibit is [ radius tacplus password ] , meaning the device first queries the RADIUS server, followed by the TACACS+ server, and finally the local password database.

A critical distinction in Junos authentication logic is the difference between a server being " unavailable " and a server " rejecting " a user. If an authentication server responds with an explicit access-reject (meaning it received the request but the credentials were invalid), the authentication process terminates immediately to maintain security integrity. However, if the server is unreachable or fails to respond within the configured timeout period (unavailable), the Junos Control Plane automatically falls back to the next method in the defined sequence. In this specific scenario, since the RADIUS server is unavailable, the device will proceed to attempt authentication using the TACACS+ server. If that were also unavailable, it would finally check the local password database. This fallback mechanism ensures that administrators can still access the device even during external server outages, provided they have a local account configured as the final method in the list.

The load command in Junos OS provides several operational methods for importing configuration data into the candidate buffer. When an administrator needs to perform a " clean slate " update—where the objective is to completely replace the existing candidate configuration with a new hierarchical file—the override option is the correct tool. Unlike load merge, which blends new data with the existing configuration, or load replace, which only updates specifically tagged sections, load override discards every statement currently in the candidate configuration and substitutes it entirely with the new content.

Using the terminal keyword in conjunction with override allows the architect to paste a large hierarchical configuration directly into the Command Line Interface (CLI). This is the most efficient method for applying validated templates, restoring full system backups, or migrating configurations between devices without having to manually delete existing parameters. After the data is pasted and the process is finalized (typically with a Ctrl+D sequence), the Junos OS kernel validates the new candidate configuration against the device ' s hardware and software capabilities. To make these changes active and operational, a subsequent commit command must be executed. This comprehensive replacement mechanism ensures configuration integrity by eliminating any potential remnants of previous, unwanted settings that might conflict with the new deployment.

In Junos OS, standard firewall filters operate as a primary security and traffic management tool within the forwarding plane. These filters are fundamentally stateless, meaning they evaluate each packet individually and in isolation without maintaining a session table or tracking the state of network connections. This stateless nature allows the Packet Forwarding Engine (PFE) to process filters at hardware speeds, ensuring minimal latency for transit traffic. This distinguishes them from the stateful security policies found on Junos security devices like the SRX Series, which track the entire lifecycle of a flow.

Furthermore, firewall filters are designed to inspect and match header information up to Layer 4 of the OSI model. This capability allows administrators to define terms based on parameters such as source and destination IP addresses (Layer 3) as well as TCP or UDP port numbers and protocol types (Layer 4). While they provide granular control over packet flow, they do not natively inspect Layer 7 application payloads, which is typically reserved for advanced services like Intrusion Detection and Prevention (IDP). By combining stateless execution with Layer 4 matching, Junos firewall filters provide an efficient method for implementing transit protection, rate limiting through policing, and protecting the local Routing Engine through loopback interface filtering. Reference: Routing Policy and Firewall Filters, Firewall Filter Framework.

==========

The Junos OS Command Line Interface (CLI) utilizes an advanced command-line editing environment influenced by standard Emacs and Unix terminal behaviors. One of the most critical features for operational efficiency is the command history buffer. This buffer automatically records a sequence of previously executed commands, allowing administrators to recall, modify, and re-execute them without manual re-entry.

The navigation of this history buffer is strictly chronological and operates as a stack. When the up arrow key is pressed once, the CLI retrieves the most recent command that was successfully entered—in this scenario, show chassis errors fpc-slot 0. Pressing the up arrow key a second time moves the cursor one step further back into the history stack to the command that preceded the most recent one. Following the provided sequence, the command executed prior to the " errors " check was show chassis fpc detail. Consequently, the second press of the up arrow key will display show chassis fpc detail at the prompt. This mechanism is essential for architects during intensive troubleshooting sessions, enabling them to cycle through relevant diagnostic commands rapidly while maintaining focus on the hardware output rather than syntax repetition. Reference: User Interfaces, CLI Editing Features, Command History.

==========

In the Junos OS architecture, configuration groups (defined under the [edit groups] hierarchy) provide a powerful mechanism for template-based management. This approach is specifically designed to handle scenarios where multiple configuration objects, such as twenty different Ethernet interfaces, require identical parameters like a specific description or MTU value. By defining these common settings once within a group, an administrator can then apply that group to multiple interfaces using the apply-groups statement.

This methodology drastically reduces the number of repetitive commands required and, more importantly, ensures strict consistency across the device. If the MTU needs to be adjusted in the future, the change is made in a single location—within the configuration group—and is automatically inherited by all interfaces to which the group is applied. This inheritance model prevents " configuration drift " where individual interfaces might otherwise end up with mismatched settings due to manual entry errors. Using configuration groups is considered a best practice for Senior Architects managing high-density platforms, as it simplifies the candidate configuration file and makes the management of bulk interface settings both scalable and error-resistant.

In the Junos OS architecture, maintaining visibility into the health of the Routing Engine (RE) is paramount for ensuring control plane stability. The command show chassis routing-engine is the primary tool for a high-level hardware status overview. It provides critical telemetry regarding the RE ' s current CPU utilization (broken down by user, background, and kernel tasks), memory usage statistics, and uptime. This command is essential for identifying if the device ' s " brain " is under significant stress due to heavy protocol processing or management tasks.

For a more granular, process-specific analysis, the show system processes extensive command is utilized. Similar to the ' top ' utility in Unix-based systems, it lists all active software daemons (such as rpd for routing, dcd for interfaces, and mgd for management) and ranks them by their real-time CPU and memory consumption. This allows an architect to pinpoint exactly which process might be causing a performance bottleneck. While show chassis environment focuses on physical hardware health like temperatures and fan speeds, and resource-monitor provides summary data, the combination of show chassis routing-engine and show system processes extensive offers the most comprehensive diagnostic view of the device ' s internal computational resources. Reference: Operational Monitoring and Maintenance, System Health Monitoring.

==========
