Traceoptions in the security flow hierarchy provide debugging for how packets are processed in the flow module.

The correct flag to capture detailed packet-level debugging is packet-dump (Option A) . This outputs packet-level trace messages showing flow decisions, NAT processing, and policy matches.

general (Option B): Provides basic flow trace information but not full packet inspection.

state (Option C): Tracks flow state transitions, less detailed than packet-dump.

basic-datapath (Option D): Provides high-level datapath debugging, not detailed flow troubleshooting.

Correct Flag: packet-dump

Routing instances: Security zones are local to their routing instance. They cannot be shared between routing instances (Option B is correct). Each routing instance must define its own zones.

Intrazone and interzone traffic: Both types of traffic require policies in Junos OS. Intrazone traffic must have an explicit intra-zone policy to be controlled (Option C is correct).

Sharing zones: Option A is incorrect, as zones cannot span routing instances.

Multiple zones: SRX devices fully support multiple security zones (trust, untrust, DMZ, etc.). Option D is incorrect.

Correct Statements: B and C

In Juniper SRX flow-based packet processing, the flow module is responsible for security functions such as screening, session management, NAT, and policy enforcement. The processing order is critical:

Screens are applied before any session lookup. This ensures that packets are inspected for anomalies, floods, or protocol violations before consuming resources for session management. Examples of these screens include TCP SYN flood protection, ICMP flood protection, and port scanning protection.

After screening, the session lookup occurs. At this point, the firewall checks whether the packet belongs to an existing session in the session table. If a matching session is found, the packet bypasses policy evaluation and is forwarded according to the session state.

If no existing session is found, the packet continues through route lookup, NAT processing, and security policy evaluation before a new session is created.

Thus, screening occurs before the session lookup , protecting the system early in the flow process. This design ensures efficiency by dropping malicious or malformed traffic before allocating session resources.

License Requirement (Option B): NextGen Web Filtering (NGWF) is a licensed feature on SRX devices. Without a license, the service cannot operate.

Local vs. Cloud Lists (Option C): NGWF checks local block/allow lists first . If the URL does not match locally, the request is then checked against the Juniper cloud database.

Option A: Incorrect, since the cloud is only consulted if the URL is not in the local list.

Option D: Incorrect, as NGWF requires a valid subscription/license.

Correct Statements: NGWF requires a license, and it checks local lists before cloud lookup.

Source NAT (Network Address Translation) is used on SRX devices to allow hosts with private IP addresses to access external networks, such as the Internet. The SRX translates the private IP address of the source host into a public IP address before forwarding traffic toward the destination.

It does not translate MAC addresses (Option A).

NAT is unidirectional in this case: it specifically translates private-to-public in the outbound direction, while the reverse (return traffic) is handled automatically through the session table. It is not a bidirectional translation (Option C).

NAT processing occurs as part of the flow module, not limited only to ingress traffic (Option D).

Therefore, the correct statement is that source NAT translates private IP addresses to public IP addresses .

The exhibit shows the traffic being dropped because the ingress logical interface ge-0/0/1.0 is in the null zone. On SRX Series Firewalls, traffic must enter through an interface that belongs to a valid security zone before normal zone-based policy processing can occur. Juniper defines security zones as logical entities to which one or more interfaces are bound. If the interface is not placed into the intended zone, the firewall cannot apply the expected zone context and the packet is dropped before a security policy can permit it. The fix is to assign ge-0/0/1.0 to the correct security zone. Assigning fxp0.0 would affect management access, and MPLS or inet flow-mode changes do not resolve a null-zone interface problem.

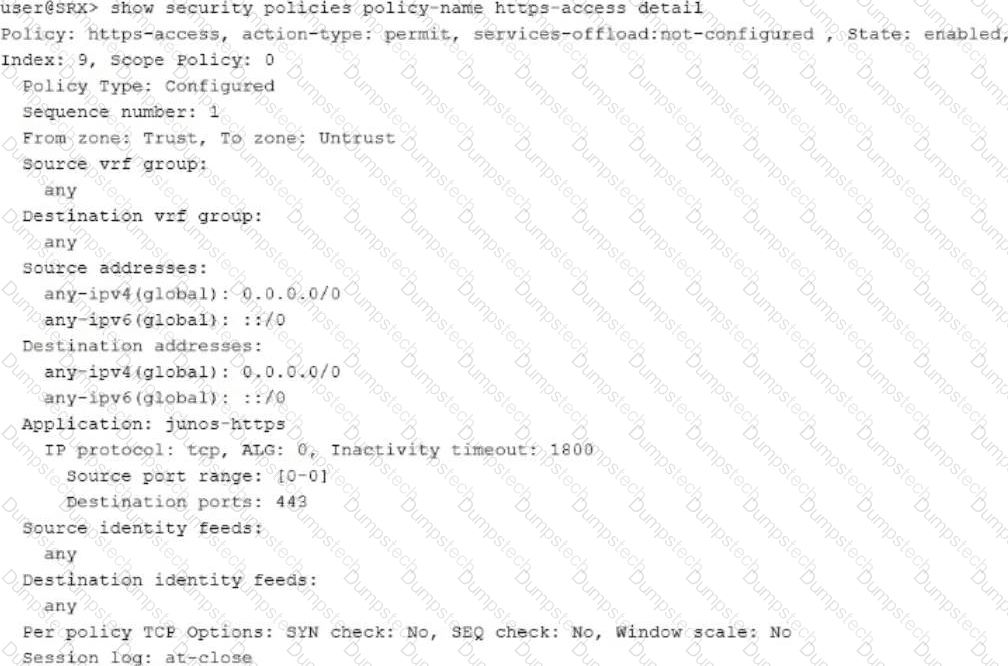

The exhibit shows From zone: Trust, To zone: Untrust, which identifies the policy as a zone-based security policy. It also shows the policy action as permit and the application as junos-https, with TCP destination port 443. Therefore, the policy permits HTTPS traffic. The displayed inactivity timeout is 1800 seconds, which is the normal value shown for predefined TCP applications such as HTTPS, so it does not prove a non-default timeout. The exhibit also shows sequence number 1, not sequence number 2, so it is not the second policy in the list. Junos security policies are configured in a from-zone to to-zone context and match traffic by criteria such as source address, destination address, and application before applying the configured action.

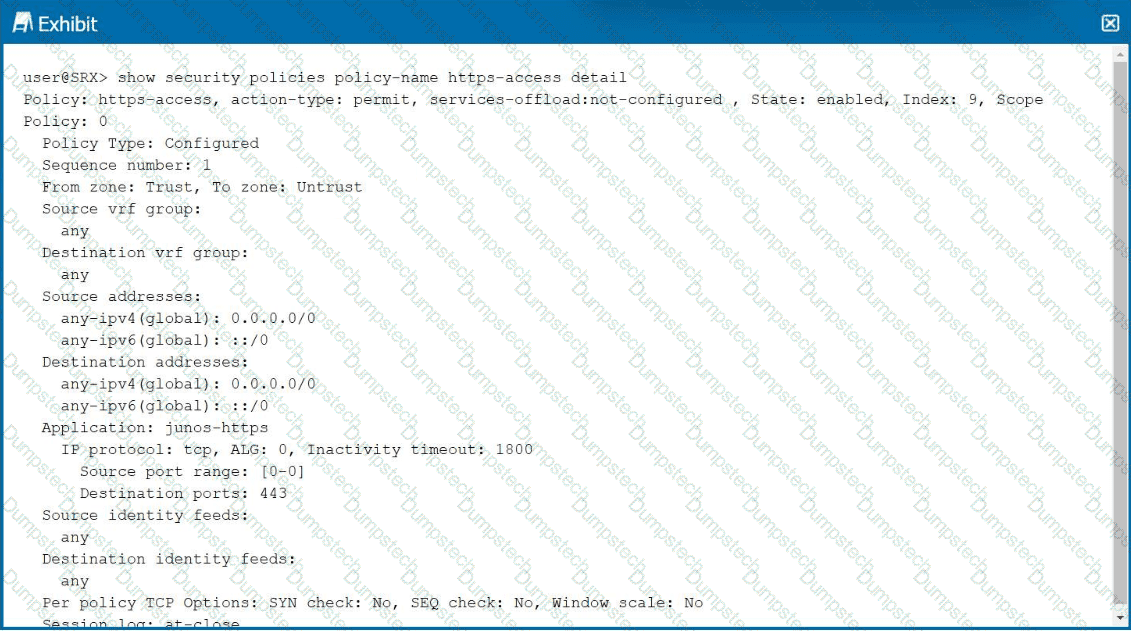

From the exhibit output:

Policy Information:

Policy: https-access, action-type: permit

From zone: Trust, To zone: Untrust

Application: junos-https

IP protocol: tcp, Destination port: 443

Inactivity timeout: 1800

Sequence number: 1

Analysis:

Option A: Correct. The default inactivity timeout for flow sessions is 60 seconds for TCP without activity . This policy shows an inactivity timeout of 1800 seconds , which is non-default.

Option B: Incorrect. The policy shows Sequence number: 1, which means it is the first policy , not the second.

Option C: Correct. The policy explicitly matches application junos-https (TCP port 443) and has an action of permit. Therefore, it allows HTTPS traffic.

Option D: Incorrect. This is clearly a zone-based policy , but the question asks for two correct statements. Between the four options, the explicitly correct ones are A and C.

Correct Statements: This security policy uses a non-default inactivity timeout, and this security policy permits HTTPS traffic.

Option B: Correct. Interfaces in the same security zone must belong to the same routing instance; zones cannot span multiple routing instances.

Option D: Correct. A security zone can contain multiple interfaces, allowing grouping of similar trust levels (e.g., multiple LAN subnets in a trust zone).

Option A: Incorrect. An interface can belong to only one zone at a time.

Option C: Incorrect. Interfaces within the same zone cannot be split across routing instances.

Correct Statements: Interfaces in the same zone must share the same routing instance, and a zone can contain multiple interfaces.

Transit traffic is defined as traffic that passes through the SRX (not destined to the Routing Engine). To capture transit traffic:

Sampling and port mirroring (Option D) are the correct supported methods for capturing or exporting transit traffic. Sampling allows captured packets to be sent to a file or collector, while port mirroring sends a copy to a monitoring interface.

Option A: Firewall filters on an egress interface cannot directly capture packets; they can only count, accept, discard, or sample. Sampling itself is separate.

Option B: Loopback interface (lo0) is for control-plane traffic, not transit traffic.

Option C: tcpdump is not supported on SRX as a tool for capturing transit packets; the operational command monitor traffic interface is used, but sampling/port mirroring is the recommended scalable approach.

Correct Method: Sampling and port mirroring
