Technical explanation

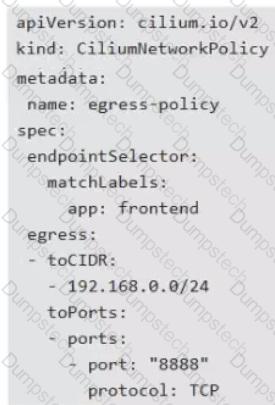

Option C has the correct Cilium policy structure. It selects pods labeled app: frontend , creates an egress rule with a valid CIDR entry, and combines that destination constraint with toPorts , port 8888 , and protocol TCP . Because the CIDR and port restriction are in the same egress rule, traffic must meet both conditions.

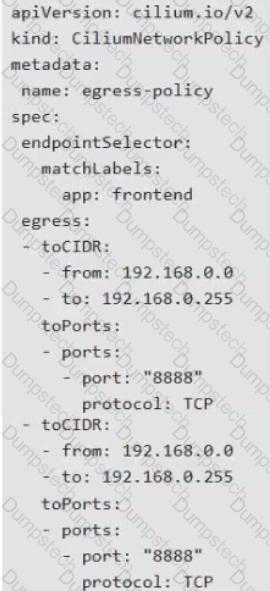

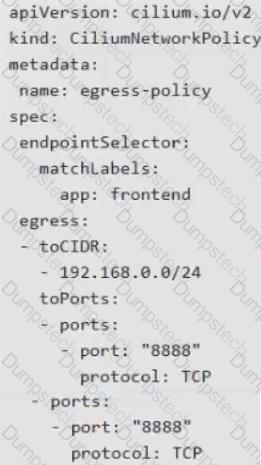

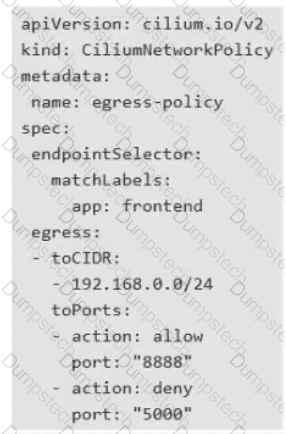

Option A uses an unsupported address-range structure with from and to fields rather than CIDR notation. Option B initially resembles the correct form but contains an additional malformed ports item at the egress-rule level. Option D uses unsupported action: allow and action: deny fields inside toPorts ; Cilium allow and deny behavior is expressed through policy sections such as egress and egressDeny , not per-port action properties.

The item is nevertheless defective. The prose and examples indicate 192.168.9.0/24 , while all displayed CIDR-based options specify 192.168.0.0/24 ; the source text itself shows the corrupted 192.168.e.e/24 . If 192.168.9.0/24 is authoritative, none of the exhibits permits the stated example. The supplied key B is structurally incorrect under the displayed manifests.

Official references

Cilium Layer 3 and CIDR Policies

Study Guide topic: CIDR selectors, Layer 4 ports, and rule composition.

Technical explanation

SPIRE supplies workload identities as SPIFFE Verifiable Identity Documents, including X.509 key material used for mutual authentication. SPIFFE’s identity model supports automatic issuance, rotation, and revocation, allowing short-lived certificates to be renewed without manually distributing static credentials. This makes D the correct statement.

Option A reverses the documented default. Cilium’s default SPIRE installation requires persistent-volume support. In-memory storage can be selected for laboratory environments by disabling server data storage, but that setting causes SPIRE data to be recreated if the server pod restarts. Option B also reverses the relationship between the projects: SPIFFE defines the identity standards and APIs, while SPIRE is a production-ready implementation of SPIFFE. Cilium’s mutual-authentication integration has been validated with SPIRE.

Option C overstates the operational requirement. A SPIRE server is involved, but Cilium’s Helm chart can deploy and configure the supported SPIRE server and per-node agents. Administrators may provide their own deployment, yet a completely manual installation is not mandatory.

Current documentation classifies this mutual-authentication implementation as beta and notes limitations, including incompatibility with Cluster Mesh trust domains. Those maturity constraints do not change the certificate-management behavior described in D.

Official references

Cilium Mutual Authentication .

Study Guide topic: Service Mesh.

Technical explanation

The Cilium Operator handles IP address management responsibilities in IPAM modes that require cluster-wide or cloud-integrated allocation. Current documentation identifies the operator as responsible for IPAM in Azure IPAM, AWS ENI, and cluster-scope mode. Cloud-specific operators populate the appropriate allocation information in CiliumNode resources, after which node-local agents allocate addresses to endpoints from the available ranges.

The phrase “when available” is important because responsibilities vary by IPAM mode. Under Kubernetes host-scope IPAM, Kubernetes allocates each node’s PodCIDR, and the Cilium agent consumes that range from the Kubernetes Node object. Nevertheless, among the supplied components, the operator is the component specifically associated with centralized IPAM requests and allocation management.

The Cilium agent implements each node’s datapath and endpoint lifecycle but is not the general cluster-wide IPAM answer intended here. Cilium API Server is not the documented allocation component. The misspelled Cilium CNIPIugin refers to the CNI plugin, which requests networking setup when a pod is created but does not replace the operator’s IPAM responsibilities.

Official references

Cilium Operator , Cilium IP Address Management

Study Guide topic: Cilium Operator responsibilities and IPAM modes.

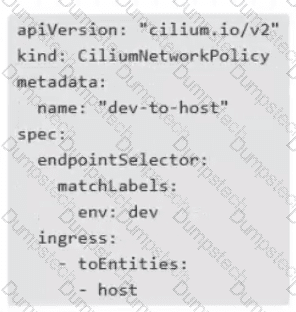

Technical explanation

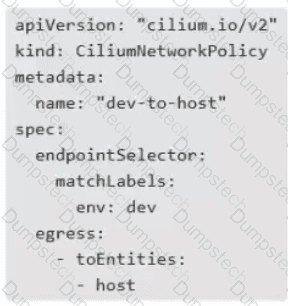

Option D uses the correct structure for permitting egress from selected endpoints to the local host entity. The endpointSelector selects endpoints whose label env equals dev . Because the intended traffic travels from those endpoints toward the host, the policy must contain an egress rule. An egress peer is expressed through toEntities , and host is the reserved entity representing the local host, including host-networked containers on that node.

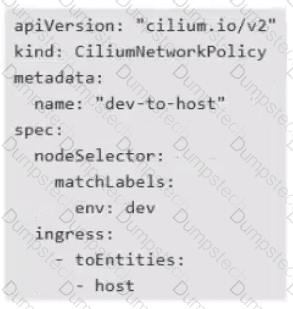

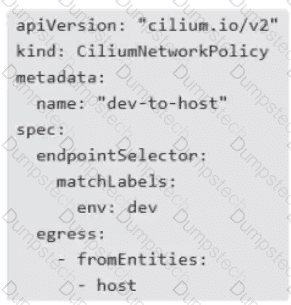

Option A is invalid because fromEntities is an ingress-oriented field and cannot express an egress destination. Option B uses nodeSelector , which selects nodes rather than workload endpoints and is only valid for node-level rules in a CiliumClusterwideNetworkPolicy ; it is not valid in the displayed namespaced CiliumNetworkPolicy . It also combines ingress with toEntities , reversing the rule direction. Option C has a valid workload selector but again uses toEntities under ingress ; ingress rules describe sources through constructs such as fromEntities .

Applying option D places the selected endpoints into egress default-deny mode and then expressly permits traffic whose destination is the host entity. Other egress traffic must be allowed separately.

Official references

Policy Enforcement and Rule Basics ; Endpoint Lifecycle policy examples .

Study Guide topic: Network Policy.

Technical explanation

cilium config view is the Cilium CLI command used to display the current Cilium configuration. It reads the configuration associated with the selected Kubernetes context, Cilium namespace, and Helm release. The command belongs to the cilium config command group, which manages installation configuration.

Option B reverses the expected command structure and does not correspond to a documented Cilium CLI operation. Option D resembles command syntax used on traditional network appliances but is not part of the Cilium CLI. Option C is both textually corrupted and conceptually inaccurate: Cilium configuration is not generally exposed through a cluster-wide resource named ciliumconfig.cilium.io . Runtime settings are commonly represented through the Cilium ConfigMap and Helm release values, while specialized resources such as CiliumNodeConfig apply targeted per-node configuration.

The wording “display show” is a source-bank editing defect but does not affect the answer. Administrators should also distinguish the external cilium management CLI from cilium-dbg , which runs with or communicates with the node-local Cilium agent and provides detailed datapath and agent diagnostics.

Official references

cilium config view , Cilium Component Overview

Study Guide topic: Cilium CLI configuration inspection and command structure.

Technical explanation

Hubble does not obtain Layer 7 protocol visibility exclusively through eBPF without a proxy. By default, Cilium’s datapath exposes Layer 3 and Layer 4 flow information. To produce supported application-layer events, traffic is selected through an L7 Cilium policy and redirected to the node-local Envoy proxy. Envoy parses the application protocol and forwards access-log information that Cilium and Hubble expose as Layer 7 flow events.

The other capabilities are supported. Hubble flow records contain the observing node, and the CLI provides node-based filtering. HTTP-aware flows can contain response status codes, enabling inspection or filtering for results such as 200 and 404. Hubble also records forwarding verdicts and drop reasons. Operators can filter for DROPPED traffic and distinguish policy-denied connections from forwarded traffic and other failure conditions.

This separation is fundamental to Cilium’s architecture: eBPF provides efficient kernel-level forwarding, security enforcement, and L3/L4 observability, while Envoy supplies protocol parsing when request-level context is required. The integration remains transparent to applications, but the proxy is still present in the traffic path for Layer 7 visibility.

Therefore, B describes the unsupported mechanism and is the correct answer.

Official references

Layer 7 Protocol Visibility ; Envoy ; Hubble CLI .

Study Guide topic: Network Observability.

Technical explanation

If a global Service has no healthy local endpoints matching its selector, every available backend can be remote. Cluster Mesh synchronizes remote service and endpoint information, allowing the local Cilium datapath to load-balance requests to backend pods in connected clusters. The absence of local endpoints therefore provides a direct explanation for the observed behavior.

If the local cluster were not part of the Cluster Mesh, its Cilium agents would not normally receive the remote endpoint state needed to route traffic through the global Service, so B does not explain successful remote-only selection. An affinity value of none is the default behavior and expresses no preference between local and remote endpoints. When both categories exist and are healthy, this permits load balancing across both; it does not require every connection to use remote backends.

Setting service.cilium.io/shared: "false" prevents the local Service’s backends from being shared with remote clusters. It does not instruct the local cluster to direct all requests toward remote endpoints.

A separate possible cause, not presented among the choices, would be service.cilium.io/affinity: "remote" . Among the supplied answers, however, A is the valid explanation.

Official references

Service Affinity ; Cluster Mesh .

Study Guide topic: Cluster Mesh.

Technical explanation

A Cluster Mesh can be created after assigning each cluster a unique name and numeric cluster ID. Cilium uses the cluster ID when constructing Cluster Mesh security identities, so duplicate values cannot safely identify endpoints from different clusters. The name must likewise be unique. These values can be changed after installation, although all existing workloads must then be restarted so their security identities are regenerated.

The other listed conditions are compatible. Both clusters use the same encapsulation datapath mode, their PodCIDRs are intended to be non-overlapping, and the nodes possess the required inter-cluster connectivity. Different Kubernetes patch or minor versions do not inherently prevent Cluster Mesh. Cilium versions may differ by one minor release, so versions 1.14 and 1.13 satisfy the documented compatibility rule.

Different certificate authorities are not an irreversible blocker under current documentation. Every cluster must trust certificates presented by the others. Operators may use a shared root CA or configure a CA bundle containing all trusted CA certificates. Consequently, B is too absolute. C is also false because changing the cluster identity is possible, subject to workload restarts. D is unnecessary because a one-minor Cilium difference is supported.

The source’s option A is truncated, but its intended corrective action is technically accurate.

Official references

Setting up Cluster Mesh .

Study Guide topic: Cluster Mesh.

Technical explanation

cilium config set debug true follows the supported Cilium CLI configuration syntax and sets the debug configuration key to true . The cilium config set command accepts a key/value pair and, by default, restarts the Cilium pods so that the changed configuration is applied. The Cilium configuration documentation defines debug as the setting that enables full debug mode. This increases agent logging verbosity and causes eBPF programs to emit additional visibility events for diagnostic use.

Options A, B, and D do not match documented Cilium CLI command structures. There is no cilium log level --set=debug command in the Cilium CLI hierarchy, and neither cilium logging.level=debug nor cilium logging debug is valid configuration syntax. A Helm-managed installation may also enable debugging through the chart value debug.enabled=true , but that does not make any of the alternative commands correct.

Debug mode should be enabled deliberately because it increases log volume and may generate additional datapath visibility information. After troubleshooting, operators should normally restore the previous setting to avoid unnecessary operational overhead.

The supplied answer key incorrectly identifies B. The verified answer is C.

Official references

Cilium configuration ; Cilium CLI `config set` ; Helm values .

Study Guide topic: Installation and Configuration.

Technical explanation

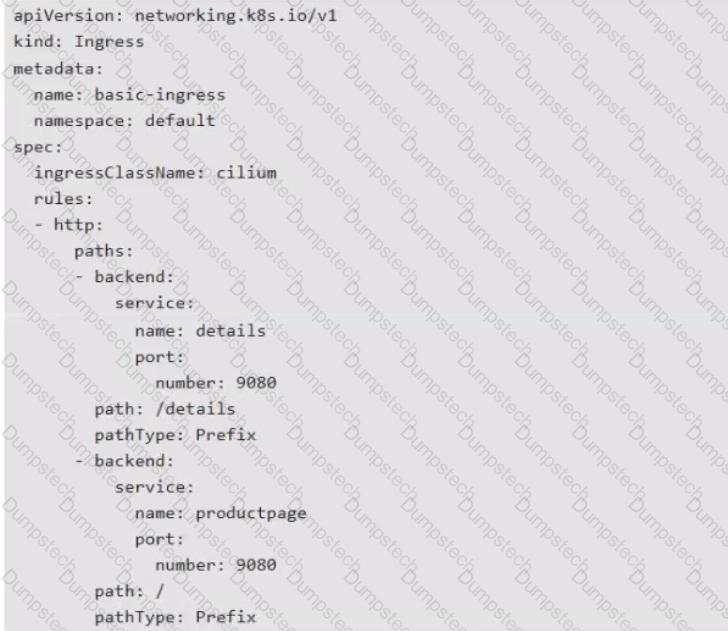

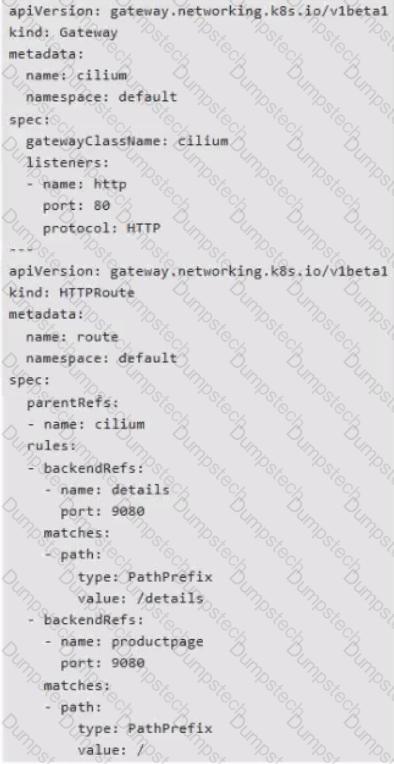

Option B correctly represents the Ingress as a Gateway and an attached HTTPRoute . The Gateway is named cilium , uses gatewayClassName: cilium , and exposes an HTTP listener on port 80. The HTTPRoute uses parentRefs with the same Gateway name, cilium , so the route attaches to the declared listener. Its two rules preserve the original routing behavior: /details with PathPrefix targets the details Service on port 9080, while / with PathPrefix targets productpage on port 9080.

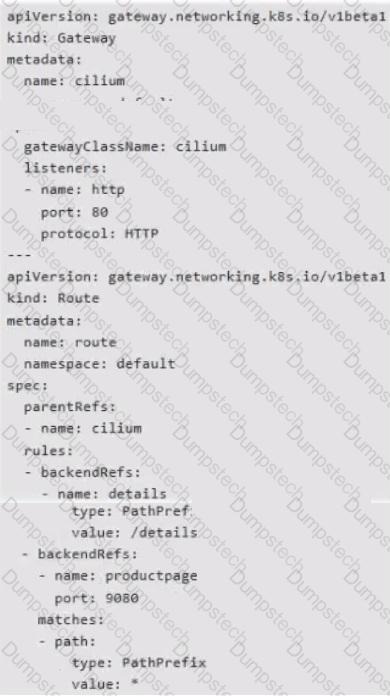

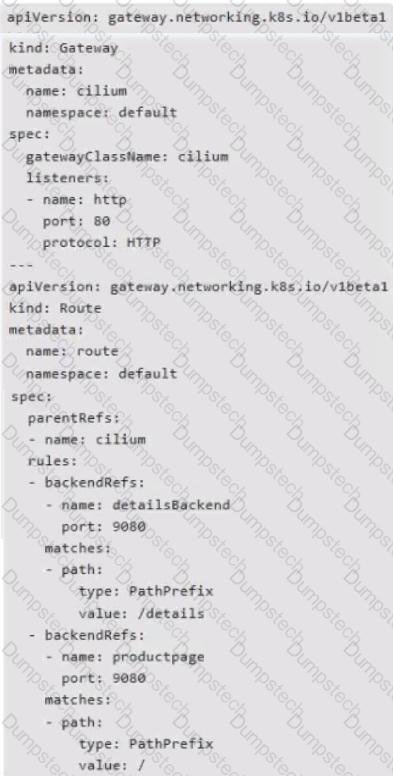

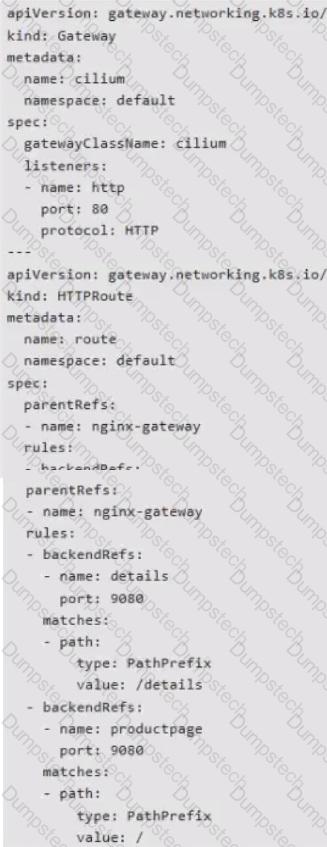

Option A declares a Gateway named cilium but attaches its route to nginx-gateway . Because the parent reference does not identify the displayed Gateway, it is not equivalent. Options C and D use kind: Route ; the correct resource kind for HTTP path routing is HTTPRoute . They also contain malformed or altered backend and matching fields. Option D changes the details backend name, while option C contains incorrect route structure and path content.

Cilium’s official migration example uses the same conversion pattern: the Ingress class becomes the Gateway’s class, paths move into HTTPRoute.rules , and the route identifies its Gateway through parentRefs .

The supplied key incorrectly identifies A. The verified answer is B.

Official references

HTTP Migration Example .

Study Guide topic: Service Mesh.
