VirtualBox is a hosted hypervisor, which means it runs as an application on top of an existing operating system, not as a special kernel that is booted before the first regular operating system starts1. VirtualBox supports a large number of guest operating systems, including Windows, Linux, Solaris, OS/2, and OpenBSD1. VirtualBox does not require dedicated shared storage, as it can store virtual machine disk images locally on block devices of the virtualization host, or on network shares, or on iSCSI targets1. VirtualBox provides both a graphical user interface (GUI) and command line tools (VBoxManage) to administer virtual machines1. VirtualBox is available for Windows, Linux, macOS, and Solaris hosts1, and does not require the source code of the currently running Linux kernel to be available. References:

Oracle VM VirtualBox: Features Overview

 LXD supports the following network interface types for containers: macvlan, bridged, physical, sriov, and ovn1. Macvlan creates a virtual interface on the host that is connected to the same network as the parent interface2. Bridged connects the container to a network bridge that acts as a virtual switch3. Physical attaches the container to a physical network interface on the host2. Ipsec and wifi are not valid network interface types for LXD containers. References:

1: Bridge network - Canonical LXD documentation

2: How to create a network - Canonical LXD documentation

4: LXD containers and networking with static IP - Super User

The file procs in a cgroup directory contains the list of processes belonging to this cgroup. Each line in the file shows the PID of a process that is a member of the cgroup. A process can be moved to a cgroup by writing its PID into the cgroup’s procs file. For example, to move the process with PID 24982 to the cgroup cg1, the following command can be used: echo 24982 > /sys/fs/cgroup/cg1/procs1. The file procs is different from the file tasks, which lists the threads belonging to the cgroup. The file procs can be used to move all threads in a thread group at once, while the file tasks can be used to move individual threads2. References:

Creating and organizing cgroups · cgroup2 - GitHub Pages

Control Groups — The Linux Kernel documentation

A hypervisor is a software that creates and runs virtual machines (VMs) by separating the operating system and resources from the physical hardware. One of the main tasks of a hypervisor is to map the resources of VMs to the resources of the host system, such as CPU, memory, disk, and network. This allows the hypervisor to allocate and manage the resources among multiple VMs and ensure that they run efficiently and independently123. Another important task of a hypervisor is to isolate the VMs and prevent unauthorized access to resources of other VMs. This ensures the security and privacy of the VMs and their data, as well as the stability and performance of the host system. The hypervisor can use various techniques to isolate the VMs, such as virtual LANs, firewalls, encryption, and access control145.

The other tasks listed are not part of a hypervisor’s responsibility, but rather of the guest operating system or the application running inside the VM. A hypervisor does not create filesystems during the installation of new VMs, as this is done by the installer of the guest operating system6. A hypervisor does not provide host-wide unique PIDs to the processes running inside the VMs, as this is done by the kernel of the guest operating system7. A hypervisor does not manage authentication to network services running inside a VM, as this is done by the network service itself or by a directory service such as LDAP or Active Directory8. References: 1 (search for “What is a hypervisor?”), 2 (search for “How does a hypervisor work?”), 3 (search for “The hypervisor gives each virtual machine the resources that have been allocated”), 4 (search for “Benefits ofhypervisors”), 5 (search for “Isolate the virtual machines and prevent unauthorized access”), 6 (search for “Create filesystems during the installation of new virtual machine quest operating systems”), 7 (search for “Provide host-wide unique PIDs to the processes running inside the virtual machines”), 8 (search for “Manage authentication to network services running inside a virtual machine”).

 The command vagrant init is used to initialize the current directory to be a Vagrant environment by creating an initial Vagrantfile if one does not already exist1. The Vagrantfile contains the configuration settings for the Vagrant box, such as the box name, box URL, network settings, synced folders, provisioners, etc. The command vagrant init does not execute any provisioning tool, start any box, install Vagrant on a Linux host, or download any box. Those actions are performed by other Vagrant commands, such as vagrant provision, vagrant up, vagrant install, and vagrant box add, respectively. References:

1: vagrant init - Command-Line Interface | Vagrant | HashiCorp Developer

The firmware attribute of the element in a libvirt domain definition specifies the type of firmware used to boot the virtual machine. The valid values for this attribute are efi and bios, which correspond to the Extensible Firmware Interface (EFI) and the Basic Input/Output System (BIOS) respectively. EFI is a newer standard that supports more features and security than BIOS, such as Secure Boot and faster boot times. BIOS is an older standard that is widely compatible and supported by most hypervisors and operating systems. The other values, scsi, virtio, and pcie, are not related to firmware, but to different types of devices or drivers that can be used in a virtual machine. References: 1 (search for firmware enum)

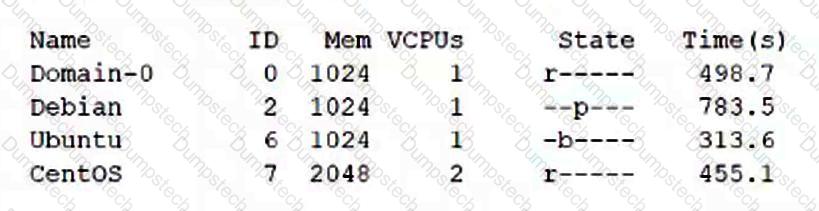

The output of xl list shows the state of the domains. The domain with ID 6, Ubuntu, has a state of “b—”. This means that the domain is blocked, which means it is idle or waiting for I/O.

https://xenbits.xen.org/docs/unstable/man/xl.1.html

The correct command to boot a QEMU virtual machine using hardware virtualization extensions is qemu -accel kvm -drive file-debian.img -cdrom debian.iso -m 1024 -boot d. This command uses the -accel option to specify the hardware accelerator to use, which in this case is kvm. KVM is a full virtualization solution for Linux on x86 hardware containing virtualization extensions (Intel VT or AMD-V)1. The -drive option specifies the disk image file to use, which in this case is debian.img. The -cdrom option specifies the ISO image file to use as a CD-ROM, which in this case is debian.iso. The -m option specifies the amount of memory to allocate to the virtualmachine, which in this case is 1024 MB. The -boot option specifies the boot order, which in this case is d, meaning to boot from the CD-ROM first. References:

https://access.redhat.com/documentation/en-us/red_hat_enterprise_linux/7/html/virtualization_deployment_and_administration_guide/sect-troubleshooting-enabling_intel_vt_x_and_amd_v_virtualization_hardware_extensions_in_bios

https://fedoraproject.org/wiki/Virtualization

Docker stack is a command that allows users to deploy and manage a stack of services on a Docker Swarm cluster. A stack is a group of interrelated services that share dependencies and can be orchestrated and scaled together. A stack is typically defined by a Compose file, which is a YAML file that describes the services, networks, volumes, and other resources of the stack. To use docker stack to run a Compose file on a Swarm, the user must first create and initialize a Swarm cluster, which is a group of machines (nodes) that are running the Docker Engine and are joined into a single entity. The Swarm cluster has one or more managers, which are responsible for maintaining the cluster state and orchestrating the services, and one or more workers, which are the nodes that run the services.

When the user runs docker stack deploy with a Compose file, the command parses the file and creates the services as specified. However, docker stack does not build or upload the images referenced in the Compose file to any registry. Instead, it instructs the Swarm nodes to pull the images from a registry, which can be the public Docker Hub or a private registry. The user must ensure that the images are available in the registry before deploying the stack, otherwise the deployment will fail. The user can use docker build and docker push commands to create and upload the images to the registry, or use an automated build service such as Docker Hub or GitHub Actions. The user must also make sure that the image names and tags in the Compose file match the ones in the registry, and that the Swarm nodes have access to the registry if it is private. By pulling the images from a registry, docker stack ensures that the Swarm nodes have the same and latest version of the images, and that the images are distributed across the cluster in an efficient way.

The other options are not correct. Docker stack does not build the images locally or on the Swarm nodes, nor does it copy or transfer the images to the Swarm nodes. Dockerstack also does not pass the images to the Swarm master, as this would create a bottleneck and a single point of failure. Docker stack relies on the registry as the source of truth for the images, and delegates the image pulling to the Swarm nodes. References:

Deploy a stack to a swarm | Docker Docs1

docker stack deploy | Docker Docs2

docker build | Docker Docs3

docker push | Docker Docs4

The unshare command is used to run a process in a new Linux namespace12. It takes one or more flags to specify which namespaces to create or unshare from the parent process1. For example, to run a shell in a new mount, network, and PID namespace, one can use:

unshare -mnp /bin/bash

References:

1: unshare(1) - Linux manual page - man7.org

2: A gentle introduction to namespaces in Linux - Packagecloud
