Comprehensive and Detailed Explanation From BIG-IP Administration S73upport and Troubleshooting documents: Persistence is critical for ensuring that a client's session remains with the same pool member throughout its duration. If primary persistence (like Cookie Persistence) fails—for instance, because the client has disabled cookies—load balancing will not work as expected, and the session may be broken. A "Fallback Persistence Profile" provides a backup method75. The most common and reliable fallback method is "Source Address Affinity"76. This method tracks the client's IP address in the BIG-IP's persistence table and ensures that any subsequent requests from that IP are routed to the same pool member, even if the primary persistence token is missing. Troubleshooting session drops often involves checking if a fallback method is configured to handle scenarios where the primary method is unsupported by the client's browser or environment. Without a fallback, the BIG-IP would revert to standard load balancing, potentially sending the client to a different server that lacks their session data.

Uneven load balancing on a BIG-IP system typically occurs when traffic is not distributed evenly across all available pool members. One common reason is thatmonitors have marked down multiple pool members (Option B). When health monitors fail for specific pool members, BIG-IP automatically removes those members from load-balancing decisions. As a result, traffic is sent only to the remaining healthy member, creating the appearance that load balancing is not functioning correctly. This behavior is expected and aligns with BIG-IP’s design to ensure traffic is sent only to healthy resources.

Another frequent cause isthe presence of a persistence profile on the pool or virtual server (Option C). Persistence (such as source address or cookie persistence) forces subsequent client connections to be sent to the same pool member for session continuity. While persistence is critical for certain applications, it can override the load-balancing algorithm and cause most or all traffic to be directed to a single pool member, especially during low traffic volumes or testing scenarios.

The other options are incorrect because avirtual server marked down (Option A)would not pass traffic at all, andall pool members marked down (Option D)would result in no connections rather than uneven distribution. This analysis follows standard BIG-IP troubleshooting methodology using pool status, monitor results, and persistence configuration review.

When load balancing is not working as expected across hardware hosting multiple services, the administrator must distinguish between "member" and "node" level algorithms102102102102. A "member" is a specific IP and port (e.g., 10.1.1.1:80), while a "node" is the physical server's IP (10.1.1.1) regardless of the port103. If servers host both FTP and HTTP services in separate pools, using "Least Connections (Member)" only balances connections within each individual pool. This can lead to a skewed distribution where one server is selected for a new HTTP connection because it has the fewest HTTP connections, even if it is currently overloaded with hundreds of FTP connections. By applying "Least Connections (Node)," the BIG-IP tracks the total number of connections to the physical hardware across all ports and pools106106106106. This ensures that the administrator can maintain an even distribution of the total workload across the server fleet, resolving the reports of uneven traffic distribution reported by the server support team

Comprehensive and Detailed Explanation From BIG-IP A41dministration Support and Troubleshooting documents:To confirm functionality across a complex environment, the "Network Map" is the most efficient troubleshooting tool in the Configuration Utility43. It provides a hierarchical, visual representation of the traffic management objects44. A single glance allows the administrator to see the status of a Virtual Server (Green/Red/Yellow), the status of its associated pool, the health of individual pool members, and which iRules are currently attached45. This view is superior to the standard "Virtual Server List" for troubleshooting because it maps the dependencies between objects46. For example, if a Virtual Server is "Red," the Network Map will show if that status is inherited from a failed pool or a specific monitor failing on a pool member. Reviewing these basic stats in the Network Map helps the administrator quickly isolate whether a failure is at the service level (Virtual Server), the logic level (iRule), or the hardware level (Pool Member).

A gateway_icmp monitor checks basic network reachability by sending ICMP echo requests (pings) to the pool member or its gateway. If the pool is markedDOWNwhile the server is confirmed to be online, the most likely cause is thatICMP traffic is being blocked.

Ahost-based firewall active on the server (Option C)can block ICMP echo requests or replies, preventing BIG-IP from receiving a successful response to the health check. This results in the monitor failing and the pool member being marked down, even though the server and application are otherwise functioning normally. This explanation is consistent with the scenario where other servers in the same subnet work correctly, indicating that routing and BIG-IP configuration are not the issue.

The other options are unrelated to ICMP monitoring. Logged-in users (Option A), missing patches (Option B), and stopped HTTP services (Option D) do not affect a gateway_icmp monitor. BIG-IP troubleshooting best practices recommend verifying ICMP reachability and firewall policies when diagnosing ICMP-based monitor failures.

Comprehensive and Detailed Explanation From BIG-IP Administration Support and Troubleshooting documents:Identifying network-level performance issues often starts with investigating hardware-level alerts78. In F5 terminology, a "Link" like "1.0" or "1.1" refers to a physical interface on the appliance79. When an SNMP trap reports that a link is "DOWN," it indicates a loss of signal or an administrative shutdown of the physical port80. To verify this, the administrator must navigate to Network > Interfaces > Interface List81. This screen provides real-time status, showing whether the interface is "up," "down," or "uninitialized," as well as any media speed or duplex mismatches that could be causing performance degradation82. Troubleshooting this is the first step in resolving "pool member down" or "VLAN failsafe" issues, as a down interface will take down any VLANs associated with it, immediately halting all traffic flow for the services relying on that physical path.

To successfully performSSL offload and re-encryptionon a BIG-IP system, the virtual server must be configured withboth a Client SSL profile and a Server SSL profile. The Client SSL profile enables BIG-IP to decrypt inbound HTTPS traffic from clients, while the Server SSL profile is required tore-encrypt traffic before forwarding it to the pool members.

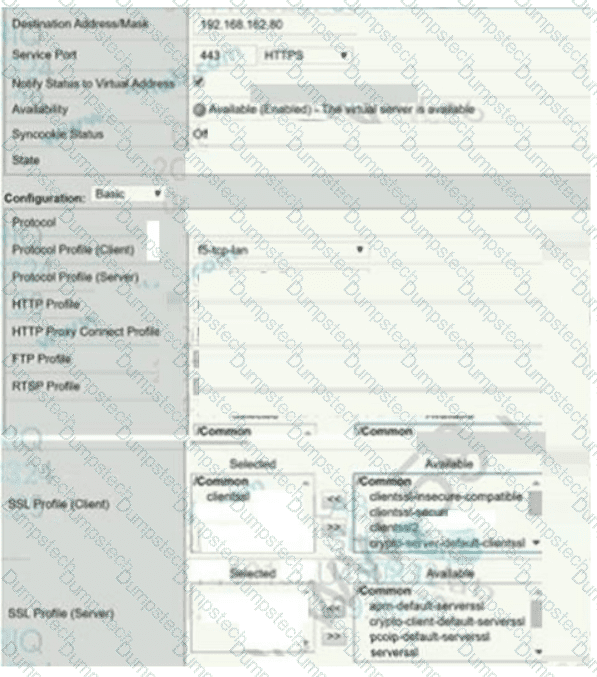

From the exhibit, the virtual server has aClient SSL profile configured, which allows BIG-IP to accept HTTPS connections from clients. However, there isno Server SSL profile attached, meaning BIG-IP attempts to sendunencrypted HTTP trafficto pool members listening on HTTPS (port 443). This protocol mismatch causes the server-side SSL handshake to fail, resulting in users being unable to connect to the application.

This behavior is well documented in BIG-IP SSL troubleshooting guides: when backend servers expect HTTPS, a Server SSL profile is mandatory to establish a secure connection from BIG-IP to the pool members.

The other options are incorrect:

Removing the Client SSL profile (Option A) would break client-side HTTPS.

The server-side TCP profile (Option B) is unrelated to SSL encryption.

Forward Proxy (Option C) is only used for outbound SSL inspection scenarios.

Therefore, configuring anSSL Profile (Server)is the correct and required solution.

This virtual server is intended to function as aforwarding (IP-forwarding) virtual server, which is commonly used for routing or firewall-style deployments where BIG-IP forwards traffic transparently without load balancing or address translation. For a forwarding virtual server to match and passall traffic, the destination must be configured as 0.0.0.0:anywith a mask of 0.0.0.0, not 255.255.255.255.

The configured mask 255.255.255.255 represents a/32 host mask, which restricts the virtual server to matching traffic destined only for the exact IP address 0.0.0.0. Since 0.0.0.0 is not a valid routable destination for normal traffic, no packets will ever match the virtual server, causing it to pass no traffic at all.

This is a well-documented BIG-IP behavior:

destination 0.0.0.0:any

mask 0.0.0.0

together define acatch-all forwarding virtual server.

The destination itself (Option A) is correct for a forwarding VS, and disabling address translation (Option C) is expected and required for IP-forwarding mode. Therefore, the incorrect subnet mask is the sole reason the virtual server is not functioning as expected.

In BIG-IP TMOS administration, the "Forwarding (IP)" virtual server type is unique because it is designed to act as a high-performance router rather than a typical load balancer. Unlike a "Standard" virtual server, which terminates a connection and directs it to a specific pool of members, a Forwarding (IP) virtual server is intended to forward packets based on the system’s routing table. Consequently, the configuration for this type of virtual server explicitly removes the option to associate a default pool. If an administrator is troubleshooting a scenario where they cannot assign a pool to a virtual server, they must verify if the type was accidentally set to Forwarding (IP). This type is most commonly used for outbound internet traffic (outbound SNAT) or to allow the BIG-IP to serve as a gateway between internal subnets. Identifying this constraint is vital for troubleshooting configuration errors where an administrator expects the system to load balance traffic but finds the pool association settings are grayed out or unavailable in the Configuration Utility.

In an HTTPS session, the application-layer payload—including HTTP request headers, response headers, cookies, and body content—is encrypted using SSL/TLS. Without decrypting the traffic (for example, without SSL offloading on BIG-IP or access to the private keys), a packet capture cannot reveal any HTTP-level details.

However,network-layer and transport-layer information remains visible, even when encryption is used. This includes source and destination IP addresses, source and destination ports, TCP flags, sequence numbers, and TLS handshake metadata. Therefore, thesource IP address (Option B)is visible in a packet capture of HTTPS traffic without decryption.

Options A, C, and D are incorrect because HTTP headers and cookies are part of the encrypted payload once HTTPS is established. BIG-IP troubleshooting documentation emphasizes this distinction when analyzing encrypted traffic flows using tcpdump, as administrators must rely on IP, port, and timing information unless SSL inspection or decryption is configured.
