In FortiOS 7.6, when a FortiGate is operating in NAT mode, physical interfaces that participate in traffic forwarding (such as LAN and DMZ) must meet certain fundamental requirements.

Correct statements

D. Both interfaces must have IP addresses assigned.

Correct

In NAT mode, FortiGate operates as a Layer-3 device.

Every interface that forwards traffic must have an IP address.

Without an IP address:

The interface cannot participate in routing

Firewall policies cannot be applied correctly

This is a mandatory requirement.

C. Both interfaces must have directly connected routes on the routing table.

Correct

When an IP address is assigned to an interface, FortiGate automatically installs a connected route for that subnet in the routing table.

These connected routes are required so FortiGate:

Knows how to reach the locally attached networks

Can forward traffic between LAN and DMZ

While administrators do not manually create these routes, their presence is required for correct operation.

Why the other options are incorrect

A. Both interfaces must have DHCP enabled and roles assigned.

Incorrect

DHCP is optional; interfaces can use static IPs.

Interface roles (LAN, DMZ, WAN) are administrative/GUI aids, not functional requirements.

B. Both interfaces must have the interface role assigned.

Incorrect

Interface roles affect GUI grouping and some default behavior.

They are not required for NAT mode operation or traffic forwarding.

In FortiOS 7.6, when multiple dialup IPsec VPNs are configured on the same FortiGate—especially in Aggressive Mode—FortiGate must identify which Phase 1 configuration a connecting client should match.

How FortiGate selects a dialup IPsec tunnel

For dialup VPNs:

The remote peer (user or device) does not have a fixed IP address

Multiple Phase 1 interfaces may exist on the HQ FortiGate

FortiGate uses identifying information sent during IKE Phase 1 to select the correct tunnel

Aggressive Mode behavior

Aggressive mode sends ID information in clear text during Phase 1

This allows FortiGate to match incoming peers to the correct Phase 1 configuration

Why Peer ID is the correct answer

C. Peer ID

Peer ID (also called IKE ID) is used to:

Identify the remote peer

Differentiate between multiple dialup tunnels

Common Peer ID formats:

FQDN

User FQDN

Key ID

FortiGate matches the received Peer ID against the Phase 1 configuration to select the correct tunnel

This is the documented and recommended method for:

Mapping users to different department tunnels

Supporting multiple dialup IPsec VPNs in aggressive mode

Why the other options are incorrect

A. Local GatewayIdentifies the local FortiGate interface/IP, not the remote user.

B. Dead Peer DetectionUsed only for tunnel health monitoring, not tunnel selection.

D. IKE Mode ConfigUsed for assigning IP addresses and pushing settings, not for selecting the Phase 1 tunnel.

From the exhibits:

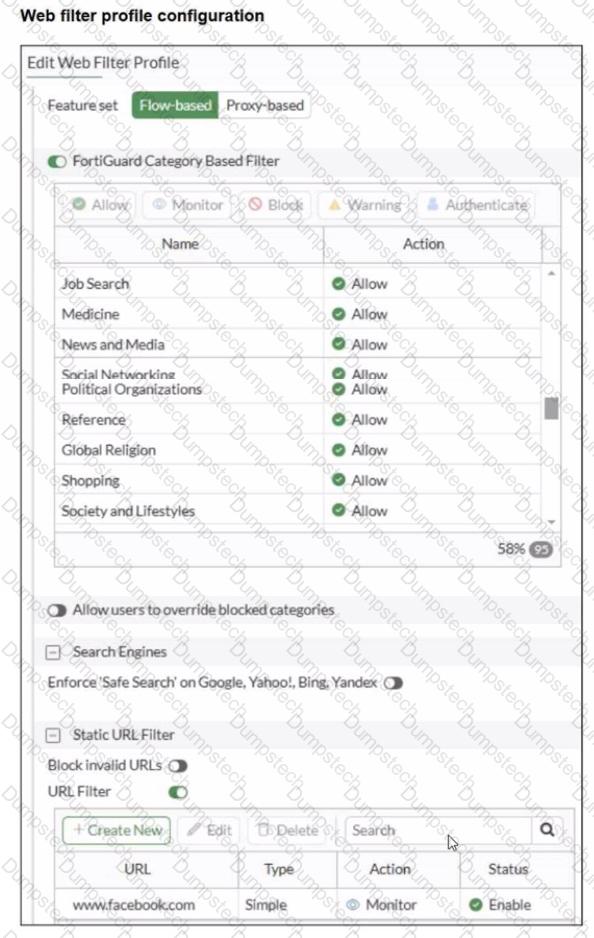

The Web Filter profile is configured with Feature set = Flow-based.

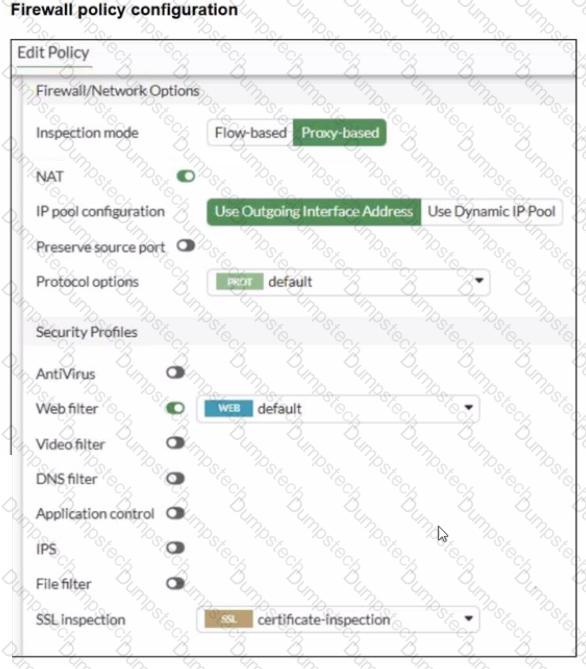

The Firewall policy is configured with Inspection mode = Proxy-based and has Web Filter enabled.

In FortiOS 7.6, security profiles that have a feature set selection (Flow-based vs Proxy-based) must match the inspection mode used by the firewall policy. If the profile’s feature set does not match the policy’s inspection mode, the profile behavior will not align with what the administrator expects (and in many cases FortiOS will prevent correct use/selection, or the feature behavior will not apply as intended).

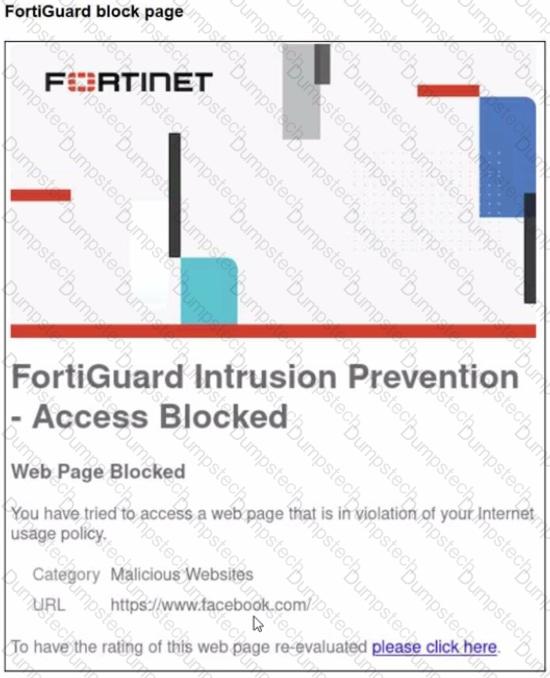

That mismatch explains why the configured URL filter entry for www.facebook.com (set to Monitor) is not producing the expected result, and instead the session is being evaluated by category rating and blocked (shown as Malicious Websites on the FortiGuard block page).

Why the other options are not the best fit:

A: A web rating override is not shown in the exhibits, and nothing indicates an override misconfiguration.

C: While the policy inspection mode could be changed, the root cause shown is the profile feature set mismatch (profile is Flow-based).

D: The URL filter action shown is Monitor, which would not produce a block page by itself.

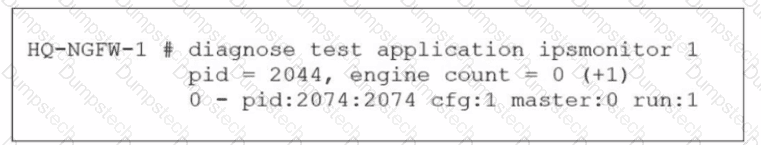

The exhibit shows the output of the following command:

diagnose test application ipsmonitor 1

pid = 2044, engine count = 0 (+1)

0 - pid:2074:2074 cfg:1 master:0 run:1

How to interpret this output (FortiOS 7.6 – IPS internals)

ipsmonitor displays the status of IPS engines running on the FortiGate.

engine count = 0 means:

No IPS scanning engines are currently active

IPS is not processing any traffic

In FortiOS, IPS engines are started on demand.

Critical documented behavior

IPS processes are only spawned when at least one firewall policy is configured with an IPS profile and traffic matches that policy.

If no firewall policy references an IPS profile, the IPS engine:

Does not start

Shows engine count = 0

Appears “not working,” even though the IPS profile exists

This is exactly what the diagnose output indicates.

Why option A is correct

A. There is no firewall policy configured with an IPS security profile.

Creating an IPS profile alone is not sufficient

IPS must be applied to an active firewall policy

Traffic must match that policy for the IPS engine to run

Otherwise, ipsmonitor will show engine count = 0

This matches FortiOS 7.6 IPS operational behavior.

Why the other options are incorrect

B. Administrator entered the command diagnose test application ipsmonitor 5.

Incorrect.

The exhibit clearly shows ipsmonitor 1

Using a different argument would not explain engine count = 0

C. FortiGate entered into IPS fail open state.

Incorrect.

In fail-open, IPS engines may be bypassed, but they still initialize

engine count = 0 specifically indicates IPS is not in use at all

D. Administrator entered the command diagnose test application ipsmonitor 99.

Incorrect.

The command argument affects debug level, not engine creation

Again, the exhibit shows ipsmonitor 1

In FortiOS 7.6, GUI session inactivity timeout behavior for administrators is controlled by admin profiles, not by general access permissions or profile ordering.

How GUI idle timeout works in FortiOS 7.6

FortiGate has a global admin timeout (admintimeout), but

Admin profiles can override this value using the Override idle timeout setting.

When Override idle timeout is enabled in an admin profile, the timeout value defined inside that profile takes precedence over the global setting.

The exhibit shows that the NOC team logs in using the NOC_Access admin profile. Therefore, to prevent their GUI sessions from disconnecting too quickly during inactivity, the timeout must be adjusted within that specific admin profile.

Why option B is correct

B. Increase the value of the Override Idle Timeout parameter in the NOC_Access admin profile.

This directly controls how long GUI sessions remain active when users assigned to NOC_Access are idle.

It affects only the NOC team, which matches the requirement precisely.

This is the recommended and documented approach in FortiOS 7.6.

Why the other options are incorrect

A. Increase admintimeout under config system accprofileIncorrect. admintimeout is a global admin setting, not configured under accprofile, and it would affect all administrators, not just NOC users.

C. Move NOC_Access to the top of the listIncorrect. Admin profile order has no impact on session timeout behavior.

D. Assign super_admin roleIncorrect and insecure. Super_admin does not control idle timeout and would unnecessarily grant full privileges.

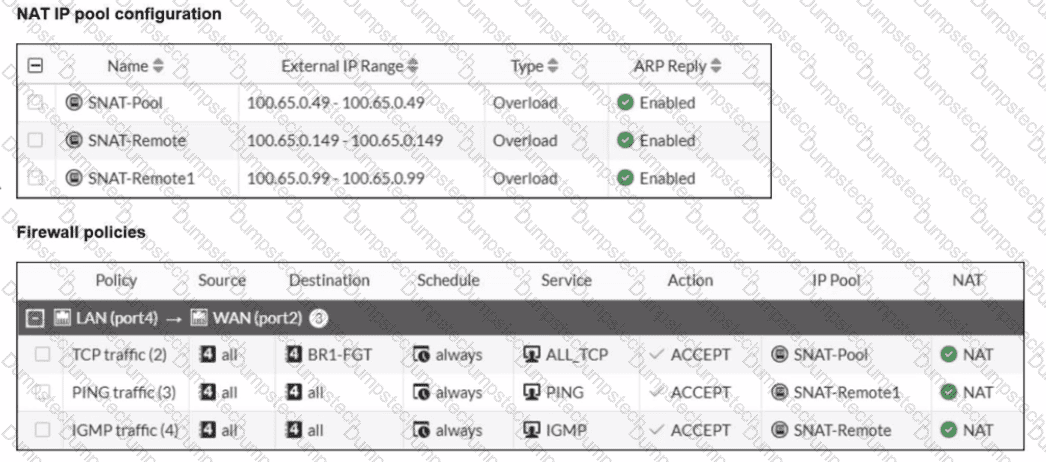

From the exhibits, there are three relevant firewall policies from LAN (port4) to WAN (port2), each using a different IP pool for source NAT:

TCP traffic

Service: ALL_TCP

Destination: BR1-FGT

IP Pool: SNAT-Pool → 100.65.0.49

PING traffic

Service: PING

Destination: all

IP Pool: SNAT-Remote1 → 100.65.0.99

IGMP traffic

Service: IGMP

Destination: all

IP Pool: SNAT-Remote → 100.65.0.149

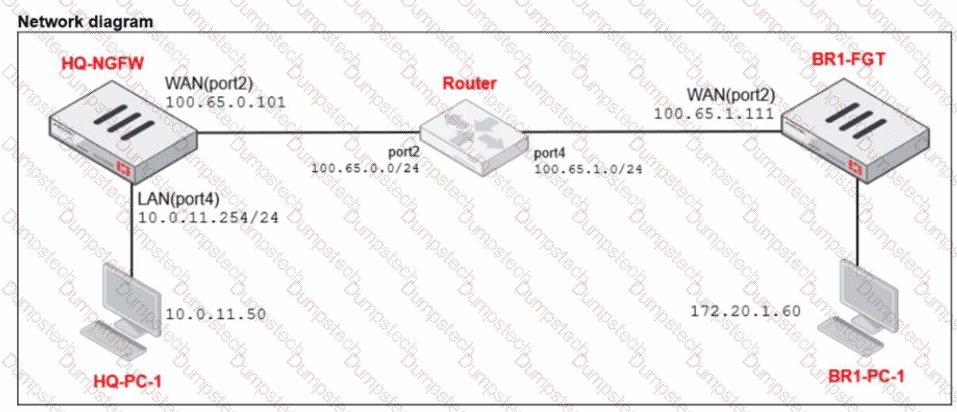

The user on HQ-PC-1 (10.0.11.50) is pinging BR1-FGT (100.65.1.111). In FortiOS, policy matching is based on (among other fields) source, destination, and service, and the first matching policy in top-down order is applied.

Because the traffic is ICMP echo (ping), it matches the policy named PING traffic (service PING, destination all). That policy explicitly uses Use Dynamic IP Pool with SNAT-Remote1, which is configured with external IP 100.65.0.99.

Therefore, the source NAT IP used for this ping is 100.65.0.99.

In FortiOS 7.6, firewall policies can be displayed in multiple views to help administrators understand and manage rules more effectively. The difference in ordering between Interface Pair View and By Sequence View is intentional and documented.

Why the policy order is different

Interface Pair View

Groups firewall policies based on the incoming (From) and outgoing (To) interfaces.

Policies are organized under interface pairs such as:

LAN → WAN

WAN → LAN

Within each interface pair, policies may appear reordered compared to the global list.

This view is designed for readability and troubleshooting, not to show execution order.

By Sequence View

Displays firewall policies in their actual evaluation (processing) order.

This is the top-down order FortiGate uses when matching traffic.

It reflects the real rule sequence that determines which policy is hit first.

Why option C is correct

C. Interface Pair View sorts policies based on matching interfaces, while By Sequence View shows the actual processing order of rules.

This statement exactly matches FortiOS behavior as documented in the FortiOS 7.6 Firewall Policy Views section of the Administrator Guide.

Why the other options are incorrect

A: Interface Pair View does not follow traffic logs, and By Sequence View is not based on “rule priority” grouping.

B: FortiGate does not dynamically reorder policies based on traffic patterns.

D: Security levels do not affect policy ordering in Interface Pair View.

In FortiOS 7.6, SD-WAN Performance SLAs are used to measure link quality and influence SD-WAN rule decisions. The following three statements are true.

C. All the SLA targets can be configured.

True

SD-WAN Performance SLAs allow administrators to configure:

Latency

Jitter

Packet loss

Mean Opinion Score (MOS) (for voice)

Threshold values for these metrics are fully configurable per SLA.

This is explicitly documented in the SD-WAN Performance SLA configuration section.

D. They are applied in an SD-WAN rule lowest cost strategy.

True

Performance SLAs are commonly used with the Lowest Cost (SLA-based) strategy.

In this strategy:

FortiGate selects the lowest-cost link that meets the SLA requirements.

If a link violates the SLA, it is excluded from selection.

E. They can be measured actively or passively.

True

FortiOS supports:

Active probing (synthetic probes such as ping/HTTP)

Passive measurement (based on real traffic statistics)

Administrators can choose how SLAs are measured depending on the deployment and requirements.

Why the other options are incorrect

A. They rely on session loss and jitter.

Incorrect

SLAs measure packet loss, latency, and jitter.

Session loss is not an SLA metric in FortiOS.

B. They monitor the state of the FortiGate device.

Incorrect

Performance SLAs monitor link quality, not FortiGate system health or device state.

Based on the FortiOS 7.6 Infrastructure and IPsec VPN documentation, Dead Peer Detection (DPD) can be configured in three primary modes: On Demand, On Idle, and Disabled.

On Demand (Default Mode): This mode is specifically designed to minimize unnecessary traffic. In this mode, FortiGate sends DPD probes only when there is no inbound traffic but the FortiGate is attempting to send outbound traffic. Because network communication is typically bidirectional, the absence of inbound traffic while outbound traffic is being sent is a primary indicator of a potentially dead tunnel. This matches the specific requirement described in the question.

On Idle: In this mode, DPD probes are sent if no traffic (neither inbound nor outbound) has been observed in the tunnel for a specific period. It verifies the tunnel status even when the connection is completely idle.

Enabled: In older versions or specific CLI contexts, "Enabled" may refer to periodic DPD, but in the current FortiOS 7.x/7.6 GUI and CLI terminology for Phase 1 settings, the active modes are defined as on-demand or on-idle.

Disabled: In this mode, the FortiGate does not send DPD probes but will still respond to DPD probes sent by the remote peer.

The requirement that the administrator wants probes sent only when there is no inbound traffic (usually implying the FortiGate is sending but not receiving) is the fundamental definition of the On Demand mechanism in the Fortinet curriculum.
