Pass the Fortinet NSE 6 Network Security Specialist NSE6_FMG_AD-7.6 Questions and answers with Dumpstech

The FortiManager 7.6 Administrator Study Guide states that global policies must be explicitly assigned: “You must explicitly assign global policy packages to specific ADOMs,” and FortiManager can also target specific policy packages in individual ADOMs. The lab guide confirms that assignment is performed from the Global Database ADOM: the administrator selects Global Database ADOM, clicks Assignment, adds the ADOM, chooses Specify Policy Packages To Assign, selects the target package, and then clicks Assign.

So creating a new policy package inside ADOM1 does not automatically inherit the existing global package assignment. It also does not automatically install policies. The administrator must go back to the global ADOM and assign the global policy package to that new local policy package.

The correct answer is C. The FortiManager 7.6 Administrator Study Guide gives the exact extract: “If you need to move a device from one ADOM to another, run the Import Configuration wizard to import the policy package into the new ADOM.” It also states: “When you move devices from one ADOM to another ADOM, shared policy packages and objects do not move to the new ADOM. You will need to import policy packages from managed devices.”

That is exactly why the administrator cannot see the policy and object configuration after the move: the device itself moved, but its shared policy package and objects did not automatically move with it. The required corrective action is to manually import the policy package into the new ADOM using Import Configuration. Options A, B, and D are not the documented remedy in the uploaded FortiManager sources.

=========

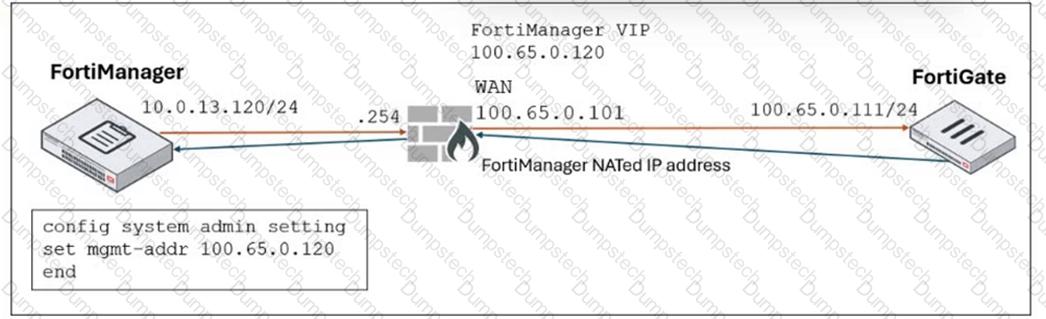

When FortiManager is behind a NAT device, setting the NATed IP address (100.65.0.120) in the system admin settings causes FortiManager to use that NATed IP address for communication and configuration with FortiGate during discovery and management operations.

ADOM revisions save the current state of all policy packages and objects within an ADOM, allowing administrators to track changes over time and revert to previous configurations if needed.

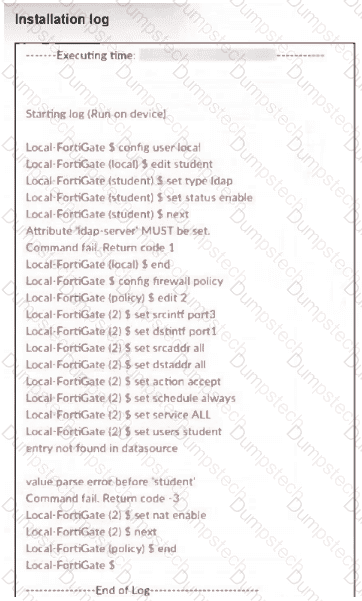

The correct answer is D. The lab guide explains that when an installation fails, the installation log shows the commands that the managed device received and accepted, as well as the commands that the managed device did not accept.

From the exhibit, FortiGate accepted the policy creation commands for policy ID 2 such as set srcintf port3, set dstintf port1, set srcaddr all, set dstaddr all, set action accept, and set schedule always. However, the line set users student failed with “entry not found in datasource” and “value parse error before ' student ' ”. That shows the user reference was not accepted, while the rest of the policy commands were processed. Therefore, policy ID 2 is still created, but without the remote user student. This rules out A, B, and C.

=========

The correct answer is D. The FortiManager 7.6 Administrator Study Guide states: “You can revert to a previous configuration revision” and “Reverts only the device database to the previous revision”. It also states “Does not revert policies and objects—you must import them” and “You must install reverted changes on FortiGate.”

This exactly means a revert operation changes the device-level database on FortiManager, not the policy layer database. The guide further clarifies: “Performing a revert operation followed by an installation only reverts device-level changes and does not revert policy packages.”

So C is incorrect because both layers are not reverted together. A and B are also incorrect because the documented and verified effect is specifically a modification of the device database, followed by install and, if needed, policy re-import for synchronization.

=========

Adding and managing FortiAnalyzer from FortiManager is recommended for handling a high volume of logs, as FortiAnalyzer is designed specifically for centralized log management, analysis, and reporting, which offloads this workload from FortiManager.

The correct answer is C. The FortiManager 7.6 Administrator Study Guide states that after adding the root FortiGate of a Security Fabric, all downstream devices in the fabric are automatically added as Unauthorized in the root ADOM. That directly matches option C.

This is important because the administrator created a FortiGate-only ADOM named Training, not a Fabric ADOM. The lab guide explains that a FortiGate ADOM is intended for FortiGate devices, while the Fabric type is the special ADOM type that allows FortiGate and other device types together.

So the downstream members are not automatically authorized, and they do not immediately appear as managed devices inside the Training ADOM. They first appear as unauthorized devices in the root ADOM, where the administrator can review and authorize them.

=========

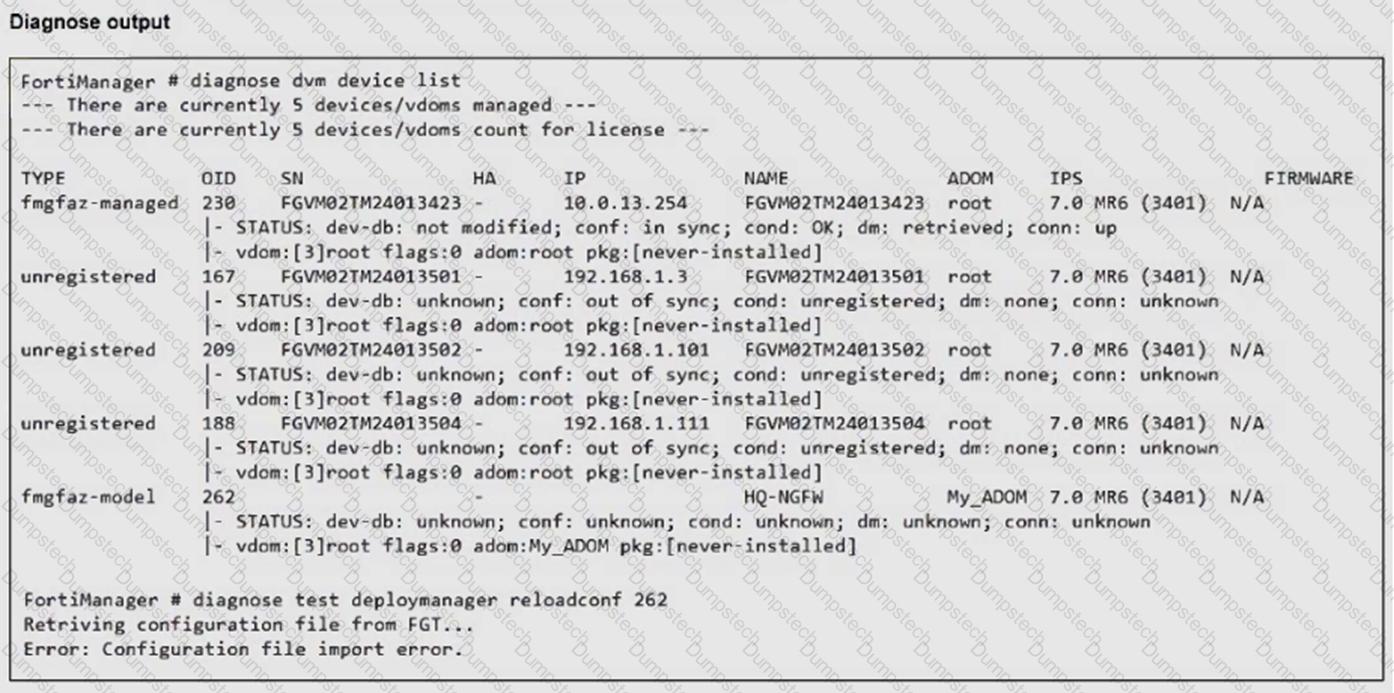

The error occurs because the FortiGate HQ-NGFW device with ID 262 is a newly added model device and has not yet been fully synchronized or installed with a configuration package, which causes the reload configuration command to fail.
