This point is not covered in the uploaded FortiManager 7.6 study guide, so the answer is based on Fortinet’s official FSSO documentation. Fortinet documents that in FSSO Collector Agent deployments, the FortiGate connects to the Collector Agent on TCP port 8000 by default, and if a different port is not configured, that is the port that must be reachable. Fortinet also explains that the DC agents monitor user logon events and pass the information to the Collector Agent, which stores the information and sends it to the FortiGate.

So, when login events are not reaching FortiGate, the most effective first troubleshooting step is to verify connectivity on TCP 8000 between the Collector Agent and FortiGate. Options A, B, and C are less direct and do not test the actual transport path used by the Collector Agent to send FSSO information to FortiGate.

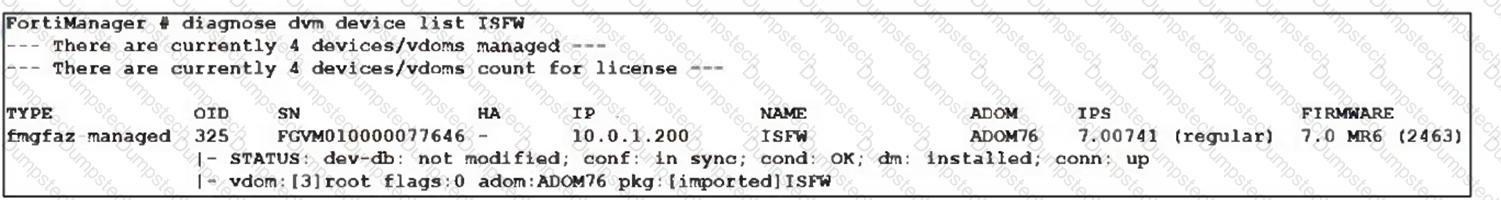

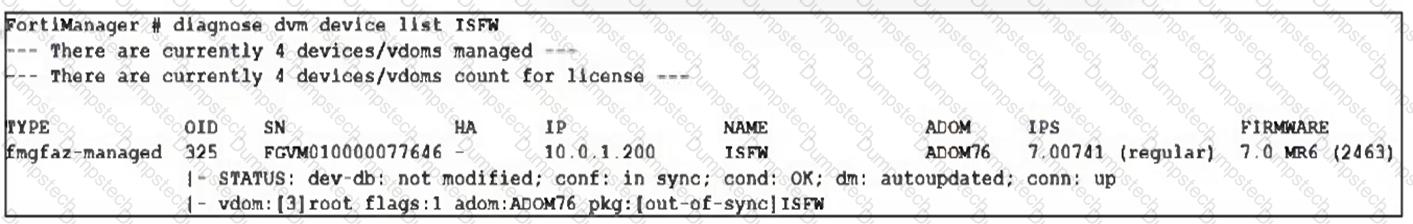

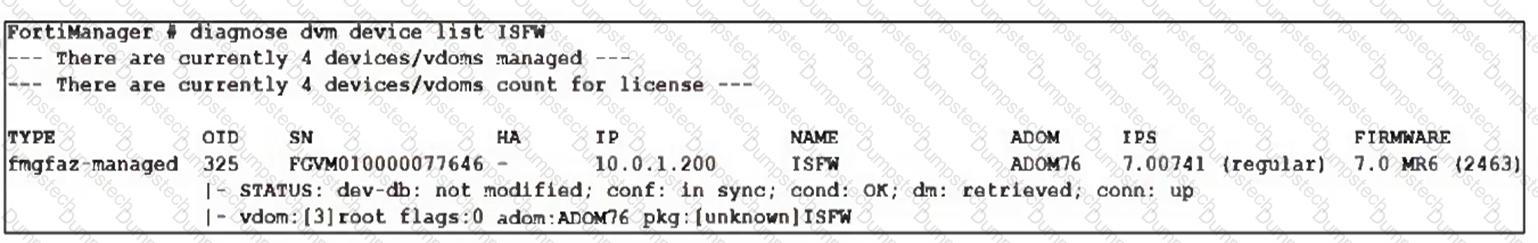

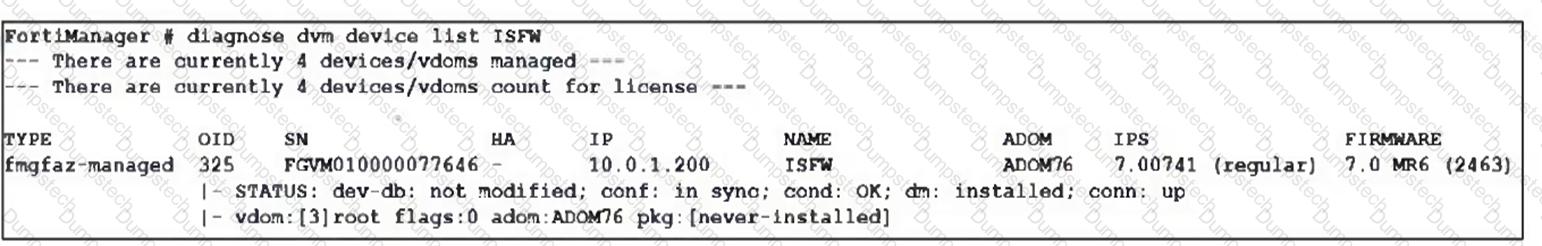

Right after moving the ISFW device to a new ADOM, the status typically shows the policy package as never-installed, indicating that the device has been assigned to the new ADOM but no policy package has yet been installed in that ADOM.

The command set workspace-mode normal enables Workspace (ALL ADOMs). In this mode, FortiManager uses ADOM locking to prevent configuration conflicts. The study guide explains that workspace mode is used to prevent concurrent ADOM access, and once an ADOM is locked, only the administrator who locked it has read-write access while all others have read-only access. That makes D correct.

B is also correct because locking is applied per ADOM, so different administrators can work at the same time on different ADOMs without conflicting with each other. This is consistent with the design goal of workspace mode and ADOM locking.

C describes workflow mode, not workspace normal. Approval before installation is required only with set workspace-mode workflow.

=========

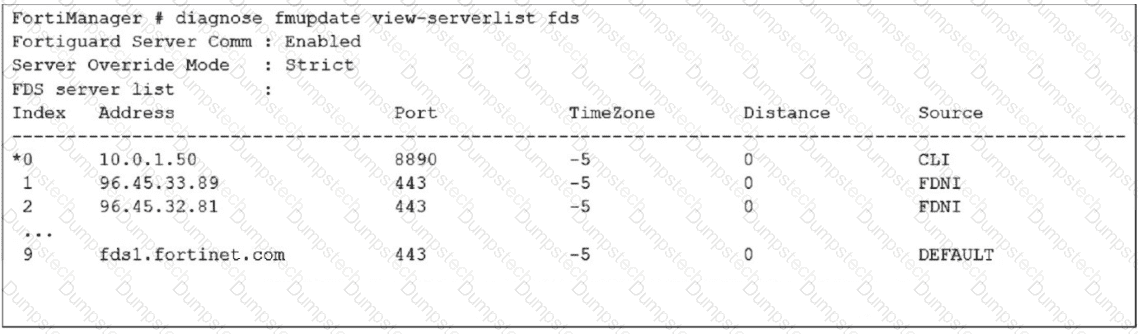

The exhibit shows diagnose fmupdate view-serverlist fds with Server Override Mode: Strict and the active entry marked with *0 as 10.0.1.50 on port 8890, with source CLI. In FortiManager, Strict override mode means the system can communicate only with the configured override server list and cannot fall back to public FDS servers. Therefore, FortiManager gets antivirus and IPS updates from 10.0.1.50, making B correct.

The study guide also explains that antivirus and IPS override addresses are specifically used when a downstream FortiManager must download updates from an upstream FortiManager or another designated server.

So even though FDNI and DEFAULT entries are listed, Strict mode prevents fallback, and only the CLI-defined override server is actually used.

=========

The correct answers are A and C. The FortiManager 7.6 Administrator Study Guide gives the exact extract: “FortiManager creates a configuration revision when: FortiGate is added to FortiManager, Device changes are installed from FortiManager, FortiGate configuration is retrieved from FortiManager, A local change on FortiGate causes an automatic update”.

This exactly proves A, because device changes are installed from FortiManager, and C, because a local change on FortiGate causes an automatic update. The guide also states: “By default, all changes made on a managed FortiGate device are automatically updated on FortiManager and reflected in revision history”.

B and D only modify the FortiManager device-level database status to Modified. They do not, by themselves, create a new revision history until an install, retrieve, or auto-update occurs.

FortiManager helps with mass provisioning by using templates that allow administrators to configure the same settings on multiple FortiGate devices simultaneously, streamlining deployment and management.

The correct answers are B and C. The FortiManager 7.6 Administrator Study Guide explicitly states: “Scripts that you run directly on remote devices also cause automatic updates and create a revision history.” This exact extract proves both results: FortiManager creates a new revision history and the device status becomes Auto-Updated, meaning the FortiGate change is automatically reflected in the FortiManager device-level database.

The lab guide also distinguishes this from database-targeted scripts by stating: “You must perform an installation if you run a script on a device database, policy package, or ADOM database.” That wording excludes Remote FortiGate Directly via CLI, so D is incorrect.

A is also incorrect because direct remote execution does not use the install preview workflow; preview and validation are tied to Install Wizard operations, not direct CLI execution.

=========

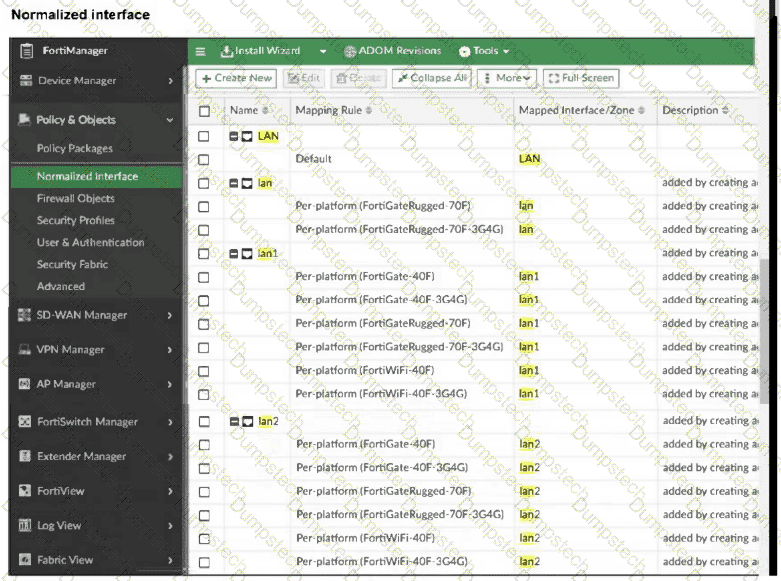

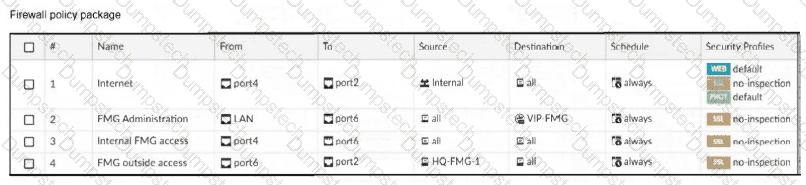

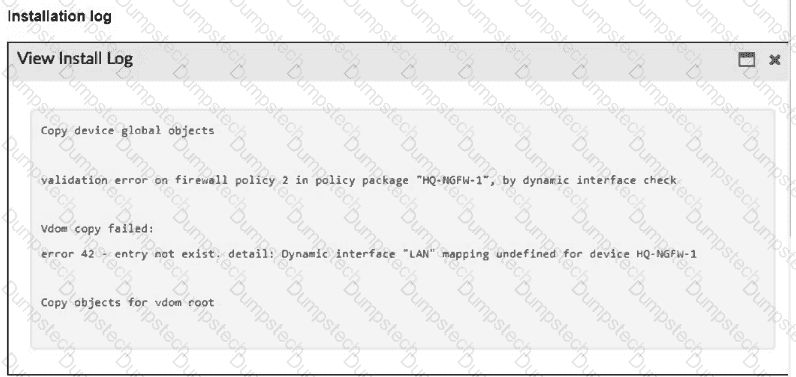

The correct answer is C. The installation log explicitly says: “Dynamic interface ‘LAN’ mapping undefined for device HQ-NGFW-1”. That means the policy is using a normalized interface, but FortiManager has no valid mapping for that device. The FortiManager 7.6 Administrator Study Guide states that “Interfaces are mapped per device, per platform, or both” and “When the normalized interface is used in a policy, the per-device mappings have higher priority than per-platform mappings.”

The lab guide also shows that during import or policy mapping fixes, the administrator can set the Mapping Type to Per-Device for interfaces.

So the correct fix is to create a per-device mapping for the normalized interface LAN for that FortiGateRugged-70F. Hardcoding lan1 in the policy is not the best FortiManager method because interface mapping is designed specifically to avoid that.

=========

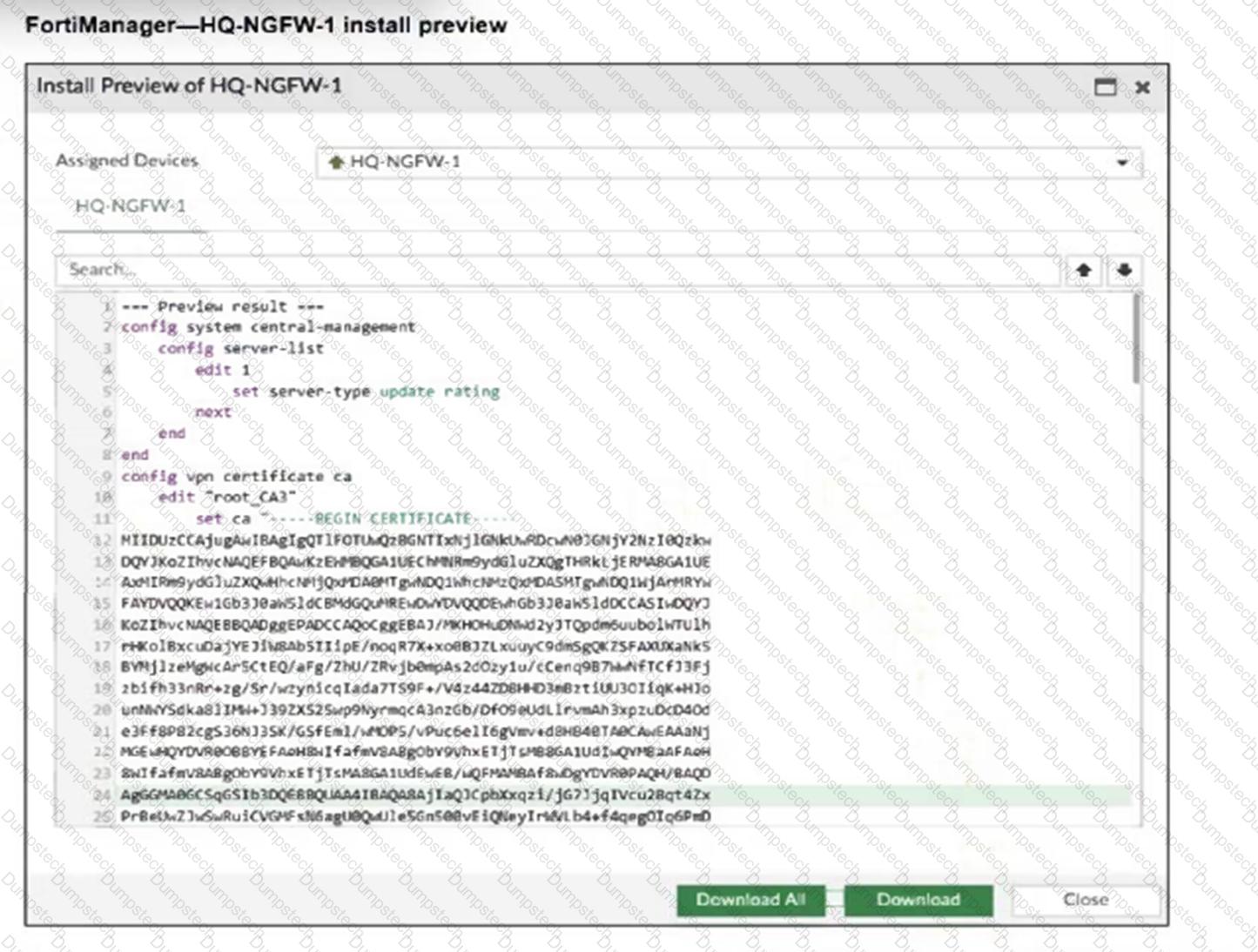

The configuration includes a server-list with server-type set to " update rating, " which enables FortiGate HQ-NGFW-1 to contact FortiManager as a FortiGuard Distribution Server (FDS) for FortiGuard updates.

The installation includes a root_CA3 certificate, which FortiManager will install on FortiGate HQ-NGFW-1 to authenticate FGFM tunnel connections between the devices.

The correct answer is B. The FortiManager 7.6 Administrator Study Guide explicitly states: “CLI scripts use the FGFM tunnel and the FGFM tunnel is authenticated using the FortiManager and FortiGate serial numbers.” It also states: “Tcl scripts do not run through the FGFM tunnel like CLI scripts do. Tcl scripts use SSH to tunnel through FGFM and they require SSH authentication to do so.”

This is the exact reason CLI scripts can run without prompting for SSH authentication every time: they use the existing secure FGFM management tunnel, not a separate interactive SSH login. The FGFM section of the study guide also confirms that this is a secure communication tunnel established between FortiManager and managed FortiGate devices.

So the enabler is not legacy login, script location, or the “Remote FortiGate Directly” option by itself. It is the FGFM secure management tunnel.
