In VSX architecture, the Inter-Switch Link (ISL) is implemented as a Link Aggregation Group (LAG). To ensure proper forwarding and VLAN consistency, the ISL LAG must allow all configured VLANs. This allows VSX synchronization and data forwarding across all VLANs that span the two switches.

ISL traffic is not specifically tagged with EF QoS markings by default.

ISL traffic is not encapsulated in GRE tunnels.

The ISL LAG does not automatically include all VLANs; VLANs must be allowed on the LAG explicitly.

Hence, the LAG must be configured to allow all VLANs.

In network environments where users might connect unauthorized, " dumb " (unmanaged) switches or hubs, standard Spanning Tree Protocol (STP) may not be sufficient to prevent loops.

The Limitation of STP and BPDU Guard: BPDU Guard is an excellent feature that disables a port if it receives a Bridge Protocol Data Unit (BPDU). However, many unmanaged switches do not participate in STP and therefore do not originate BPDUs. Some may simply forward BPDUs or drop them entirely. If a loop is created through an unmanaged switch that doesn ' t send BPDUs, BPDU Guard will never trigger.

How Loop Protection Works: AOS-CX Loop Protection is specifically designed for this scenario. The switch sends out proprietary Loop Protection packets at a configured interval. If the switch receives its own Loop Protection packet back on the same port (or a different port in the same VLAN), it knows a loop exists.

Action on Detection: Upon detecting the loop, the switch can be configured to send an SNMP trap and, more importantly, disable the port to stop the broadcast storm and prevent a network outage.

Best Practice: Loop protection is commonly recommended for " Access " or " Colorless " ports where end-user devices connect, as it provides a safety net against loops caused by non-STP aware devices.

When a recent routing change causes an outage affecting all users, the recommended immediate action is to restore the last-known working configuration to quickly return the network to a stable state. This is critical to minimize downtime and impact.

Asking customers to send logs or explaining the issue takes time and delays remediation.

Collecting show tech and opening TAC cases can be done after restoring service.

Hence, the quickest way to mitigate the impact is to restore the last known good configuration.

To isolate wired ports on the same VLAN on a large scale (such as hotel rooms) but allow communication within the same VLAN for common areas, Private VLANs (PVLANs) are recommended. PVLANs allow segmentation within a single VLAN by dividing it into primary and secondary VLANs, controlling communication between ports.

VPN and VXLAN are overlay technologies for different purposes.

UBT (User-Based Tunneling) is related to wireless user segmentation, not wired port isolation.

Therefore, PVLANs provide the simplest and most effective solution to isolate room ports within a single VLAN.

OSPF neighbors not forming adjacency and stuck in the 2WAY state typically indicates that the interface is set to passive mode, preventing OSPF Hello packets from being sent or received on that interface.

Removing passive mode on VLAN 182 allows OSPF Hello messages to be exchanged and adjacency to form.

Options involving network type or costs do not affect adjacency states related to passive interfaces.

The max-metric router-lsa on-startup affects LSA advertisements, not adjacency formation.

Therefore, the fix is to configure no passive-interface vlan182.

The exhibit shows a configuration for a standard Stub Area (area 1 stub). To meet the customer requirement of having only a default route, we must understand how OSPF area types filter Link State Advertisements (LSAs).

Stub Area (Current Config): Blocks Type 5 (External) LSAs. The Area Border Router (ABR) injects a Type 3 LSA default route. However, Type 3 LSAs (Inter-Area routes from other parts of the OSPF network) are still allowed in. This explains why the user still sees other OSPF routes in the table.

Totally Stubby Area (The Solution): This area type is a Cisco/Aruba enhancement to the OSPF standard. It blocks both Type 5 (External) and Type 3 (Inter-Area) LSAs. The ABR replaces all of these with a single Type 3 default route . This is the most efficient configuration for a small branch switch with limited memory and a single exit point.

AOS-CX Configuration: To convert the current " Stub " to a " Totally Stubby " area, you would add the no-summary keyword on the ABR:

Bash

router ospf 1

area 1 stub no-summary

Why other options are incorrect:

Option A and D: NSSA (Not-So-Stubby Areas) are used when you need to redistribute external routes from the branch into the rest of the OSPF network. The prompt doesn ' t mention a local external source.

Option B: This is what is currently configured and is explicitly described as not meeting the requirement.

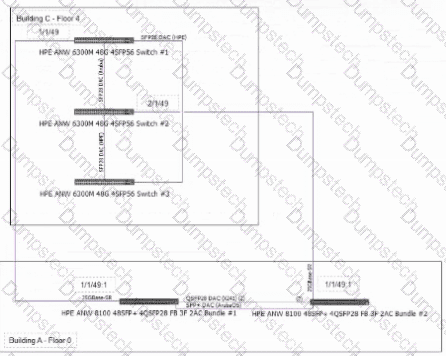

The configuration involves connecting two buildings over fiber using OM4 cabling with a distance of 200 meters. The current optics in use are 25GR (25 Gigabit Rate) optics.

For multimode fiber such as OM4, SR (Short Reach) optics are suitable for distances up to 300 meters. In contrast, LR (Long Reach) optics are typically designed for single-mode fiber and longer distances.

Therefore, to properly support the 200m OM4 fiber link, 25SR optics should be used instead of 25GR (which are often long-reach optics).

10SR and 10LR refer to 10Gbps optics, which do not meet the 25Gbps requirement.

25LR optics are for single-mode fiber and longer distances, not multimode.

This scenario highlights a common conflict between Port Access Control and WLAN architectures in AOS10.

Tunnel Mode vs. Bridge Mode: * In Tunnel Mode , client traffic is encapsulated (GRE/IPsec) from the AP to the Gateway. The switch port only sees the MAC address of the AP itself. Once the AP authenticates via 802.1X, all tunneled client traffic passes through the authenticated " tunnel " unnoticed by the switch ' s port security.

In Bridge Mode , the AP bridges wireless client traffic directly onto the local VLAN. The switch port now sees the MAC addresses of the wireless clients.

The Conflict: By default, an 802.1X port expects only one authenticated device. When the AP authenticates, the port is " open " for the AP ' s MAC. However, when a wireless client’s bridged MAC appears on the same port, the switch treats it as an unauthenticated intruder and drops its DHCP requests.

The Solution (Device Mode): You must configure the User Role assigned to the AP (after it authenticates) with device-mode (often referred to as dev-conf-mode or device auth-mode in exam contexts). This tells the switch: " The device that just authenticated is a trusted infrastructure device (an AP). Please allow all subsequent MAC addresses seen on this port to pass without requiring individual authentication. "

Colorless Ports are a foundational element of Aruba’s Dynamic Segmentation strategy. They allow any device to be plugged into any access port without requiring manual VLAN or ACL configuration by the IT staff.

The Role of Authentication: When a device connects, the switch uses 802.1X or MAC Authentication to identify the device and communicate with Aruba ClearPass .

Downloadable User Roles (DUR): Instead of pre-configuring thousands of roles locally on every switch, the switch downloads the specific policy—including VLAN assignment, QoS, and Access Control Lists (ACLs)—directly from ClearPass. This is the Downloadable User Role .

Why this is " Colorless " : Because the policy is defined centrally and " downloaded " to the port only when needed, the physical port has no static identity (no " color " ). This simplifies deployment and ensures that security policies follow the user or device regardless of where they plug in.

In a hotel environment where a single subnet is used for wired guests, but guest devices in a conference room need to communicate with each other (and with the default gateway), while remaining isolated from other guests elsewhere, Community VLANs are appropriate.

Community VLANs allow hosts within the same VLAN community to communicate with each other and the default gateway but are isolated from hosts in other communities.

Isolated VLANs block communication between ports and only allow communication to the gateway.

Therefore, assigning conference room guests to a community VLAN and the gateway to a primary VLAN allows the desired communication model.
