Mandatory BGP Attributes

Next_Hop : Specifies the next hop to reach the destination.

AS_Path : Lists the autonomous systems traversed, crucial for loop prevention and route selection.

Optional Attributes

MED (Multi-Exit Discriminator) and Local_Preference are optional attributes that aid in route preference but are not mandatory.

HCIP-Datacom-Core Reference

BGP attribute behavior and classifications are detailed in BGP path selection principles​​.

Comprehensive and Detailed Step-by-Step Explanation:

1. Overview of BGP:

BGP (Border Gateway Protocol) is an Exterior Gateway Protocol (EGP) designed to exchange routing information between different Autonomous Systems (ASs) on the internet. Unlike traditional distance-vector protocols (like RIP), BGP is considered a path-vector protocol, as it not only determines reachability but also ensures policy-based routing decisions and advanced path selection mechanisms.

2. Analysis of Each Option:

Option A: BGP does not support authentication. Therefore, it cannot ensure network security.

This statement is incorrect .

BGP supports authentication using mechanisms such as TCP MD5 (Message Digest 5) and TCP-AO (Authentication Option). These authentication mechanisms ensure that BGP messages are not tampered with or intercepted during transmission, enhancing network security.

Comprehensive and Detailed Step-by-Step Explanation:

IS-IS Area Division:

IS-IS divides areas by routers , not by links. A router is assigned to a specific IS-IS area, but it can belong to multiple levels:

Level 1: Maintains the LSDB (Link State Database) for the local area only.

Level 2: Maintains the LSDB for the backbone area and exchanges routes between areas.

Behavior of a Level 1-2 Router:

A router configured as Level 1-2 must maintain two separate LSDBs:

One for intra-area routes (Level 1).

One for inter-area routes (Level 2).

Incorrect Statement:

The statement that an IS-IS router only needs to maintain the LSDB of its area is incorrect because Level 1-2 routers maintain LSDBs for both levels.

 IPv6 Address Behavior

Manually configured link-local addresses do not have a higher priority than automatically generated ones; they coexist and are equally preferred for local communication.

The other statements are true:

A. Link-local addresses can use the EUI-64 method for quick generation.

B. Anycast addresses are only used as destination addresses.

C. An interface can have multiple global unicast addresses with different prefixes.

 HCIP-Datacom-Core Reference

IPv6 address types and priority behaviors are detailed in the IPv6 addressing sections​​.

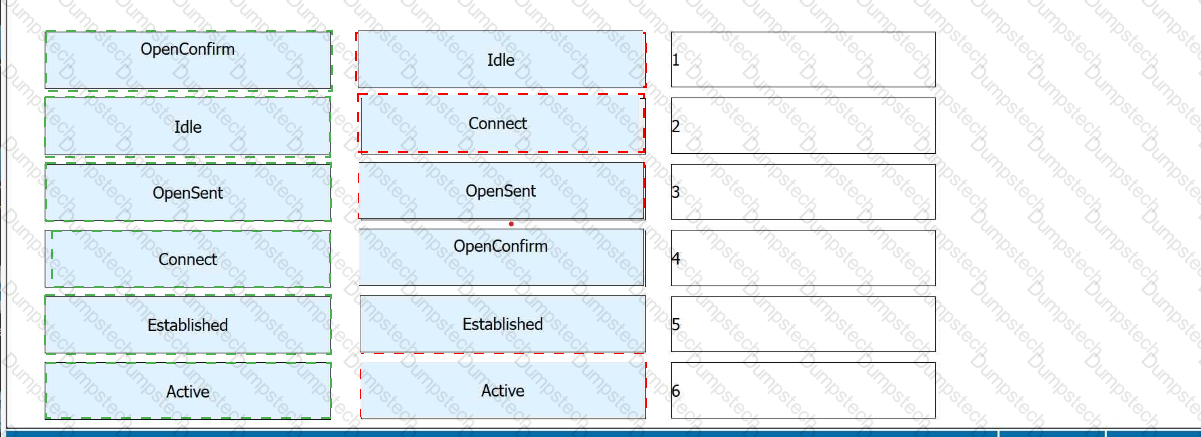

1 – Idle

2 – Connect

3 – OpenSent

4 – OpenConfirm

5 – Established

6 – Active

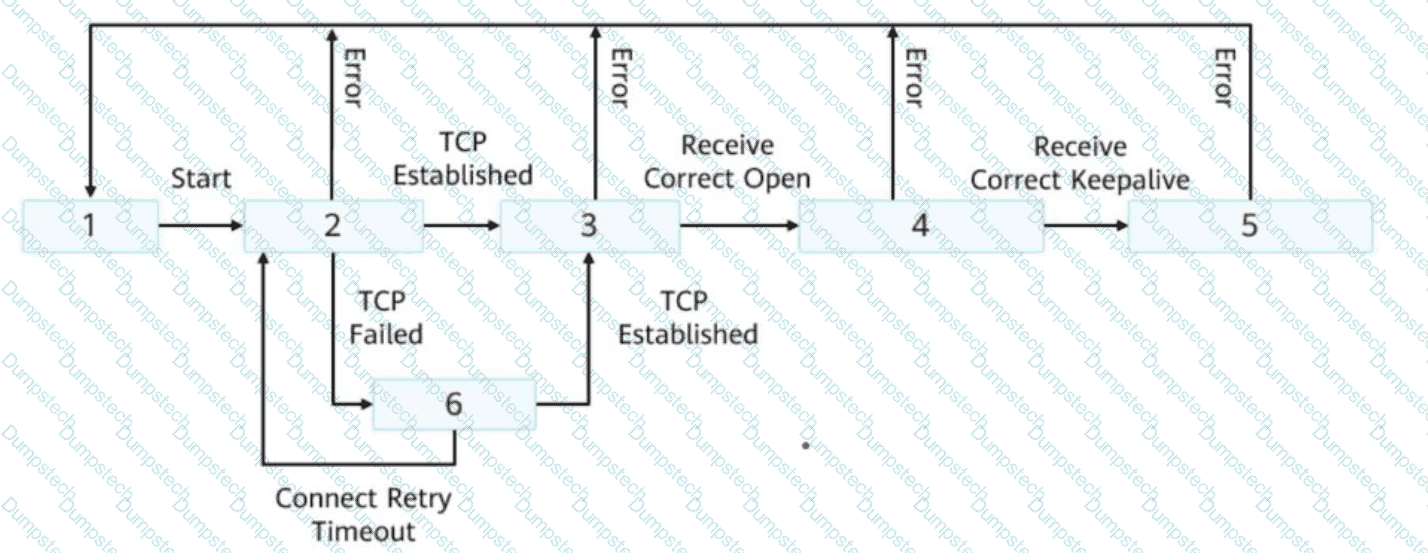

The BGP finite state machine defines how a BGP speaker transitions through various states when establishing and maintaining a BGP session. Below is the role of each state:

Idle (1) – BGP is waiting to start a connection. Initial state of the BGP process.

Connect (2) – BGP initiates a TCP connection to the peer.

OpenSent (3) – TCP connection is established; BGP sends an OPEN message and waits for one from the peer.

OpenConfirm (4) – BGP has received a valid OPEN message and is now expecting a KEEPALIVE.

Established (5) – BGP session is fully established; UPDATE messages can now be exchanged.

Active (6) – If the TCP connection fails in Connect state, BGP transitions to Active and will retry connection.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“BGP goes through the following states in order: Idle → Connect → Active → OpenSent → OpenConfirm → Established. The transition depends on the success or failure of TCP connection setup and BGP message exchanges.”

(Chapter: BGP Principles – Section: BGP State Machine)

 IS-IS Interface Types

IS-IS interfaces are categorized based on physical link characteristics:

Point-to-Point (P2P) : Direct connections between two routers.

Broadcast : Shared medium networks where multiple routers communicate.

 Incorrect Options

C. P2MP and D. NBMA are not standard interface classifications in IS-IS.

 HCIP-Datacom-Core Reference

IS-IS physical link classifications are elaborated in IS-IS link configuration sections​​.

The silent-interface command disables the sending of OSPF packets, including Hello packets, on the specified interface, which prevents the establishment of OSPF neighbor relationships. However, the interface can still advertise directly connected routes through other interfaces, making Option C incorrect ​.

Comprehensive and Detailed Step-by-Step Explanation:

VRRP Virtual MAC Address Format:

The VRRP virtual MAC address is generated using the format: 0000-5e00-01XX , where XX represents the VRID in hexadecimal.

Calculation:

VRID = 1 → Hexadecimal = 01 .

Virtual MAC = 0000-5e00-0101.

Correct Option:

C (0000-5e00-0101).

Comprehensive and Detailed Step-by-Step Explanation:

Definition of the Origin Attribute:

The Origin attribute is a well-known mandatory attribute used to indicate the source of a route. It has three possible values:

i (IGP): The route was injected into BGP using the network command.

e (EGP): The route was learned from an EGP protocol (not commonly used now).

? (Incomplete): The route was redistributed into BGP from another routing protocol.

Analysis of Each Option:

Option A: Correct. When the network command is used, the Origin is set to i (IGP) .

Option B: Incorrect. Routes learned from EGP have the Origin attribute set to e (EGP) , not ? (Incomplete) .

Option C: Correct. BGP prefers routes with the Origin attribute in the order: IGP > EGP > Incomplete .

Option D: Correct. The Origin attribute is a well-known mandatory attribute.
