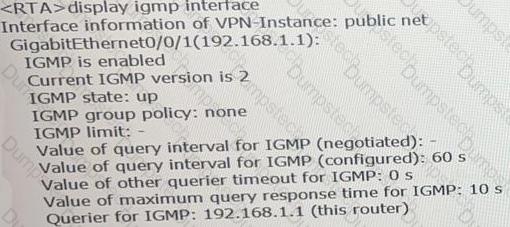

The information provided indicates that the configured query interval is 60 seconds, which applies to general queries. Group-specific queries are sent at a shorter interval, usually derived from the maximum response time. Therefore, the statement about a 60-second interval for group-specific queries is false. Other statements regarding maximum response time (10s), IP address, and IGMP version (V2) are correct ​.

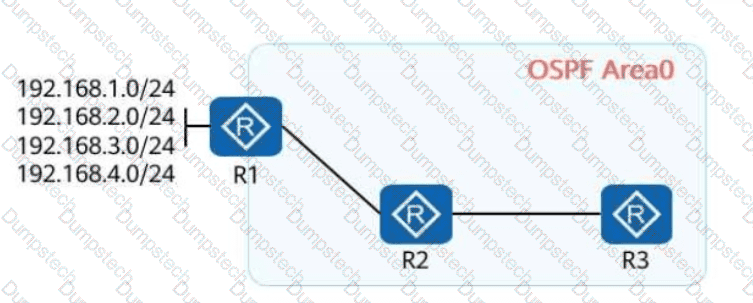

Goal Analysis:

Requirement:

The route to 192.168.3.0/24 must exist in R1 ' s and R3 ' s routing tables.

The route must not exist in R2 ' s routing table.

This requires filtering to ensure the route is either:

Blocked on R2 ' s routing table (via filtering on R2), or

Blocked before it is advertised to R2.

Analysis of Each Option:

Option A (Filter-policy on R2 for filtering received routes):

Applying a filter-policy on R2 to filter received routes will block the route from entering R2 ' s routing table but still allow it to propagate to R3.

This meets the requirement.

Option B (Filter-policy on R2 for filtering the routes to be advertised):

Blocking the advertisement of routes from R2 to other routers does not affect the routes received by R2 itself.

This does not meet the requirement but does not affect the propagation to R3.

This is valid if the received route is blocked.

Option C (Filter-policy on R1 for filtering the routes to be imported):

If the route is filtered on R1 during the import phase, the route will not exist in R1’s routing table and thus cannot be advertised to either R2 or R3.

This fails to meet the requirement because the route must exist in R1 ' s and R3 ' s routing tables.

Option D (Filter-policy on R1 for filtering the imported routes to be advertised):

Filtering routes on R1 before advertising to R2 will prevent R2 from receiving the route but allow R1 to advertise the route to R3.

This meets the requirement.

Correct Option:

C (Filter-policy on R1 for filtering the routes to be imported): This will prevent the route from existing in both R1 and R3, violating the stated requirement.

The forwarding plane of a switch consists of data forwarding hardware, such as line cards or forwarding engines, and is responsible for tasks like encapsulating/decapsulating packets, providing high-speed data channels, and collecting packet statistics. However, main control boards are part of the control plane, not the forwarding plane. This distinction ensures a separation of data forwarding and control functionalities ​.

 In asynchronous mode , BFD control packets are exchanged periodically to detect faults.

 In demand mode , once the session is established, BFD stops sending periodic control packets and relies on external mechanisms to verify connectivity.

 Asynchronous mode is the most commonly used mode. However, the Echo function is supported in asynchronous mode, making Option B incorrect ​.

IGP routes can be injected into BGP using multiple methods, not just the network command. The import-route command can also be used to redistribute IGP routes into BGP. The network command requires the route to exist in the routing table, while import-route allows direct redistribution ​.

Comprehensive and Detailed in-depth Step-by-Step Explanation:

BGP confederations are used to reduce the complexity of IBGP full-mesh connections within a large AS by dividing the AS into multiple sub-ASs (called " member ASs " ) while still appearing as a single AS to external ASs. Below is an analysis of each option:

A. The ASs outside a confederation still consider the confederation as one AS:

This is true. Externally, the entire confederation is seen as a single AS, identified by the main AS number.

B. After a confederation is configured, the original IBGP attributes can be retained:

This is true. The configuration of a confederation does not affect the IBGP attributes exchanged between routers.

C. After a confederation is configured, the original AS number is used as the confederation ID of each router:

This is true. The main AS number is used as the Confederation Identifier for all member ASs in the confederation.

D. A confederation divides an AS into several sub-ASs, and EBGP full-mesh connections are established in each sub-AS:

This is false. Within each sub-AS of a confederation, IBGP connections are still used (not EBGP). Confederations are designed to reduce the number of IBGP full-mesh connections required within a large AS by creating smaller, manageable sub-ASs.

Therefore, the correct answer is D.

When the level of an IS-IS interface is changed, the adjacency must be re-established because IS-IS adjacencies are formed based on matching levels (Level-1, Level-2, or both). Other changes, such as cost or hello intervals, do not disrupt the existing adjacency but might impact routing metrics or timing ​.

For first-time configuration of a newly purchased network device, administrators typically use the console port. This direct connection is secure and independent of network configuration, making it suitable for initial setups. Telnet, SNMP, or FTP require prior IP configuration, which is not feasible during the initial setup phase ​.

Comprehensive and Detailed In-Depth Explanation:

Intermediate System to Intermediate System (IS-IS) routers send IS-to-IS Hello (IIH) packets to establish neighbor relationships.

The Reserved/Circuit Type field in IIH packets indicates which level of IS-IS adjacency the router is trying to establish:

00 → Level-0 (Not used in IS-IS).

01 → Level-1 router.

10 → Level-2 router.

11 → Level-1-2 router (Both levels supported) .

Since the question asks for the field value in an L1-L2 router’s IIH packets , the correct answer is 11 (B) .

???? Reference: Huawei HCIA-Datacom Study Guide, IS-IS Neighbor Discovery and IIH Packet Format.

 IS-IS Interface Types

IS-IS interfaces are categorized based on physical link characteristics:

Point-to-Point (P2P) : Direct connections between two routers.

Broadcast : Shared medium networks where multiple routers communicate.

 Incorrect Options

C. P2MP and D. NBMA are not standard interface classifications in IS-IS.

 HCIP-Datacom-Core Reference

IS-IS physical link classifications are elaborated in IS-IS link configuration sections​​.
