A generate route is a specialized type of Junos summary route that, unlike an aggregate route, is permitted to inherit and use an actual forwarding next hop rather than being restricted to reject or discard. When multiple contributing routes exist beneath the summarized prefix, Junos selects one of them as the primary contributor using a deterministic process: it first evaluates route preference (choosing the contributor with the lowest, most preferred value), then breaks any remaining tie by preferring the contributing route with the numerically lowest metric, and continues through further tie-breaking criteria if necessary until a single primary contributor is identified. The generate route then adopts the next hop of that specific primary contributor as its own forwarding next hop, meaning traffic matching the generate route but not matching any individual contributing route is forwarded toward whichever real next hop the primary (best) contributing route currently uses. This behavior is fundamentally different from an aggregate route, which never adopts a forwarding next hop at all and instead installs with a reject (or optionally discard) next hop by default, deliberately preventing traffic from being forwarded toward a next hop that might not actually lead to the intended more-specific destination. There is no mechanism by which the next hop is chosen arbitrarily from the 'first' or 'least-specific' contributor, and while a next hop can be manually overridden under the generate route's own configuration, that is not the default resolution behavior being described here. Reference topics: Junos Enterprise Routing – Protocol Independent Routing, Generate Routes and Primary Contributor Selection.

Nonstop active routing's defining architectural feature is that the backup Routing Engine runs a fully live, active instance of the routing protocol daemon (rpd) in parallel with the primary Routing Engine's rpd instance, continuously, from the moment NSR and its prerequisite GRES are established — not merely at the instant a switchover begins. As protocol adjacencies form, routes are learned, and the RIB is updated on the primary Routing Engine, that same protocol and RIB state is mirrored in real time to the backup Routing Engine's rpd process through an internal synchronization mechanism, so the backup's protocol state remains a live, up-to-date replica of the primary's at essentially every moment during normal operation. When a switchover occurs, the backup Routing Engine simply assumes the primary role with protocol adjacencies, routing tables, and forwarding state already fully populated and current, allowing it to continue operating without re-establishing neighbor relationships or re-learning the network topology, which is what makes the switchover genuinely nonstop and invisible to neighboring routers. This is fundamentally different from graceful restart, where the restarting router must rebuild its state by requesting help from cooperating neighbors after the fact. The Packet Forwarding Engine plays no role in synchronizing protocol-layer information such as LSAs or BGP updates; that is strictly an rpd-to-rpd function coordinated through the Routing Engine synchronization infrastructure. Reference topics: Junos Enterprise Routing – High Availability, Nonstop Active Routing Architecture and rpd Synchronization.

An integrated routing and bridging interface, configured as irb.x on an EX Series switch, is the mechanism that bridges the Layer 2 and Layer 3 forwarding planes for a given bridge domain or VLAN. By assigning an irb logical unit to a VLAN and configuring an IP address on that unit, the switch gains a routable Layer 3 gateway address that hosts within that VLAN can use as their default gateway, enabling traffic destined for other subnets to be routed off the local broadcast domain. Internally, when a frame destined for the gateway's MAC address arrives on any port belonging to that VLAN, the switch's integrated circuitry hands the packet from the Layer 2 bridging domain to the Layer 3 routing engine associated with the corresponding irb interface, and vice versa for the return path — hence the name 'integrated routing and bridging.' IRB does not eliminate the need for routing instances, which remain a separate mechanism for isolating routing tables; it does not itself perform inter-VLAN switching, since switching still happens strictly within a VLAN's own broadcast domain; and it has no relationship to trunk ports, which remain necessary for carrying multiple tagged VLANs between switches. IRB is the standard method for enabling inter-VLAN routing on a single EX Series switch without an external router. Reference topics: Junos Enterprise Switching – Routing VLANs, Configuring Integrated Routing and Bridging.

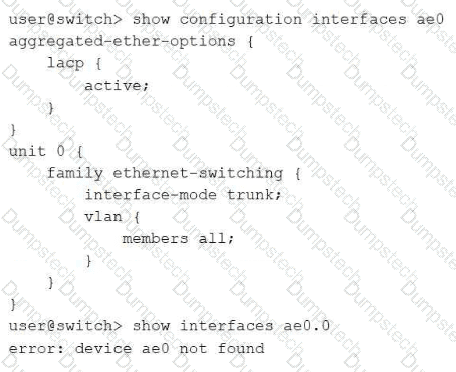

On EX Series switches, aggregated Ethernet (ae) interfaces do not exist by default; before any ae interface can be created, referenced, or brought into service, an administrator must first reserve the desired number of aggregated Ethernet device slots by configuring set chassis aggregated-devices ethernet device-count number at the [edit chassis] hierarchy. This statement allocates the internal resources needed for that many ae interfaces to exist as valid, configurable objects; until it is committed, any interface-level configuration referencing ae0 (such as the aggregated-ether-options and family ethernet-switching stanzas shown in the exhibit) is accepted syntactically by the CLI but never actually instantiates a live ae0 device, which is exactly why show interfaces ae0.0 returns 'device ae0 not found' despite the interface appearing fully configured. Increasing the device-count to at least 1 (or higher, to cover the number of LAG bundles planned) immediately resolves this and allows ae0 to appear as an operational interface once its member links are also associated with it. This is a foundational and frequently overlooked prerequisite step in LAG deployment on Juniper switches. There is no separate licensing requirement for aggregated Ethernet functionality on EX Series switches, a reboot is not needed since the chassis statement takes effect upon commit, and the LACP mode (active versus passive) is unrelated to whether the ae interface object itself exists in the first place. Reference topics: Junos Enterprise Switching – Link Aggregation, Configuring the Aggregated Ethernet Device Count.

Each of the 24 end-device-facing interfaces in this scenario needs to carry traffic for exactly one VLAN, and the end devices themselves are ordinary hosts that neither expect nor generate 802.1Q-tagged frames. This is precisely the definition of an access port in Junos: family ethernet-switching interface-mode is set to access, and a single vlan members statement assigns the port to VLAN 70. Access mode ensures frames egressing toward the host are untagged and any frames received are implicitly treated as belonging to the configured VLAN, which is both simpler to manage and more efficient than trunking, since access ports do not carry the 802.1Q tag overhead nor process VLAN pruning logic relevant only to multi-VLAN links. Trunk mode, by contrast, is reserved for switch-to-switch or switch-to-router links that must simultaneously carry frames for multiple VLANs, such as the uplink toward the distribution switch that transports VLANs 30, 50, and 70 together — configuring the 24 host-facing ports as trunks (with or without a native VLAN) would be functionally incorrect and operationally wasteful, since end devices have no need to interpret VLAN tags. There is also no such behavior in Junos where VLAN-ID numeric value dictates default port behavior, making the 'no configuration needed' option a distractor with no basis in EX Series switching architecture. Reference topics: Junos Enterprise Switching – VLANs, Configuring Access and Trunk Port Modes.

The entire purpose of route aggregation is summarization — replacing a set of more-specific contributing routes with a single, broader prefix advertised outward — and this summarization inherently hides internal routing instability from external peers: if one of the underlying contributing /24 blocks within a summarized /16 flaps up and down due to a local link issue, external peers who only see the stable, unchanging /16 aggregate are completely insulated from that churn, since the aggregate itself remains active and advertised as long as at least one contributing route is present, regardless of how much internal fluctuation occurs among the individual contributors. This stability-hiding characteristic is one of the primary operational benefits that motivates using aggregate routes in the first place, confirming that statement as correct. Regarding next-hop behavior, official Juniper documentation is explicit and unambiguous: when an aggregate route is installed in the routing table, Junos assigns it a reject next hop by default, meaning traffic matching only the aggregate (and no more-specific contributor) is dropped and an ICMP unreachable message is returned to the source; a discard next hop is available only as an optional, explicitly configured alternative when silent dropping without ICMP notification is preferred, but it is not the default. Aggregate routes categorically do not advertise their individual contributing routes; suppressing those specific, more-granular prefixes from onward advertisement in favor of the single summary is the aggregate's defining function, directly contradicting the first statement. Reference topics: Junos Enterprise Routing – Protocol Independent Routing, Default Reject Next Hop and Route Summarization Benefits.

IEEE 802.3ad LACP defines two distinct negotiation modes, active and passive, and the standard's fundamental requirement for successful negotiation is that at least one end of the point-to-point link must be configured in active mode; an actively configured device initiates LACPDU transmission on its own, while a passively configured device waits and only responds once it receives an LACPDU from its peer. If both ends of the bundle were left in passive mode simultaneously, neither side would ever initiate the exchange, and no negotiation — and therefore no functioning aggregated bundle — would ever occur; at least one active participant is therefore mandatory, though having both sides active (active-active) is also fully valid and is in fact the most common production deployment. Junos does not enable LACP automatically on aggregated Ethernet interfaces; unlike some competing platforms, LACP must be explicitly configured under the aggregated-ether-options lacp hierarchy, and specifying no LACP configuration at all results in a 'static' LAG that relies purely on physical link-state rather than any protocol negotiation — there is no implicit default active mode. There is likewise no requirement to configure differing LACP system priority values between the two peer switches; system priority is used only to determine which side of the link controls port selection during negotiation and has no bearing on whether the bundle can form. Both sides being mandatorily active is a stricter requirement than the actual standard specifies. Reference topics: Junos Enterprise Switching – Link Aggregation, LACP Active and Passive Mode Negotiation.

Once the two candidate routes have equal route preference and equal local preference (both defaulting to 100 unless modified by policy), the Junos BGP algorithm proceeds to its third decision step, which compares the length of each candidate's AS path attribute and selects whichever path carries the shortest AS path, since a shorter path is interpreted as traversing fewer autonomous system hops to reach the origin. This step occurs well before the algorithm ever reaches the specific EBGP-over-IBGP preference rule, which is only evaluated later, after local preference, AS path length, origin type, and MED have all already been compared and found equal between the candidates; because an IBGP-learned copy of a route typically retains the identical AS path that was originally received from the external AS (IBGP does not prepend the local AS number the way crossing an AS boundary does), it is entirely possible, and often the deciding scenario, for AS path length to differ between competing paths well before the algorithm would ever need to fall back on the IBGP-versus-EBGP tiebreak. Selecting a route purely because it was 'learned through IBGP' is not a rule that exists anywhere in the algorithm and would in fact typically be the opposite of Junos's later EBGP-preference tiebreak. Neither next-hop IP address value nor router ID value is compared with a 'highest wins' rule at any point in the standard path selection sequence — where router ID is used at all, Junos prefers the lowest value, not the highest, making both of those distractors doubly incorrect. Reference topics: Junos Enterprise Routing – BGP, Path Selection Order: AS Path Length Precedes EBGP/IBGP Preference.

The show ethernet-switching table command displays the Layer 2 forwarding database (the bridge or MAC table) that an EX Series switch builds dynamically by inspecting the source MAC address of every frame it receives. Each entry records the learned MAC address, the VLAN it was learned on, the type of entry (dynamic, static, or persistent), and the specific interface through which that address was seen, which is precisely the information needed to confirm whether the switch has learned the host connected to ge-0/0/3. If the host's MAC address is absent from the table, that immediately points to a Layer 1/2 issue — no frames have been received from the host, a cabling or port problem exists, or the interface is administratively down or blocked by spanning tree — rather than a Layer 3 routing or VLAN membership problem. show interfaces terse only reports administrative and link state along with any assigned protocol family addresses, offering no MAC-learning visibility. show vlans lists VLAN definitions and their member interfaces but does not display learned host addresses. show interfaces extensive provides detailed physical-layer counters and error statistics, useful for diagnosing frame loss or interface errors, but it does not expose the switching table. For intra-VLAN reachability troubleshooting, verifying MAC learning is always the first and most direct Layer 2 checkpoint. Reference topics: Junos Enterprise Switching – Layer 2 Switching Fundamentals, Monitoring the Ethernet Switching Table.
