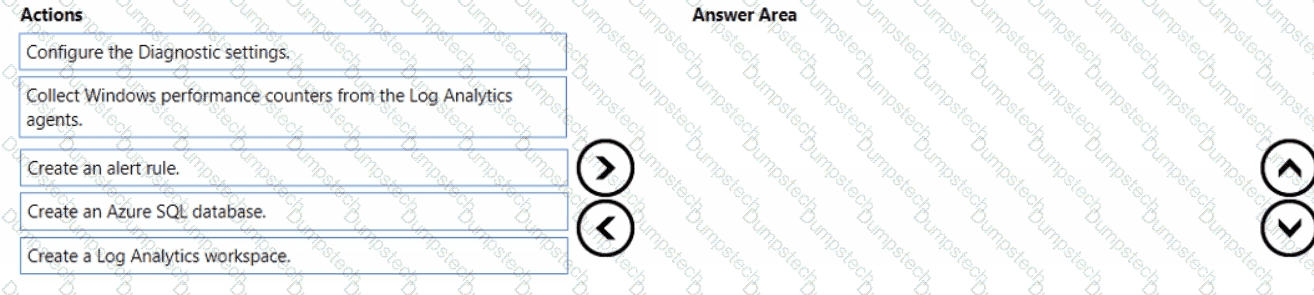

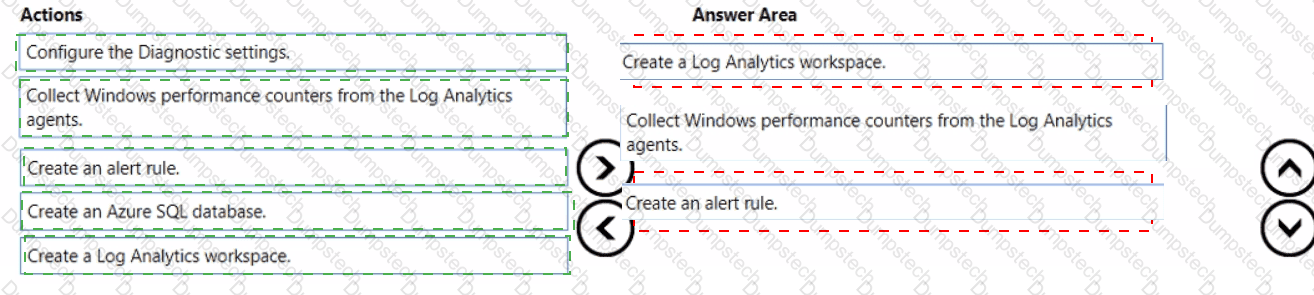

1️⃣ Create a Log Analytics workspace.

2️⃣ Collect Windows performance counters from the Log Analytics agents.

3️⃣ Create an alert rule.

The question states:

“You need to configure the alerts for VM1 and VM2 to meet the technical requirements.”

The technical requirement from the case study specifies:

“Trigger an alert if VM1 or VM2 has less than 20 GB of free space on volume C.”

This requirement involves monitoring performance metrics (disk space) and generating alerts based on those metrics. According to Microsoft Azure monitoring and management documentation, the process to configure such alerts involves using Azure Monitor and Log Analytics.

Step-by-Step Verified Solution:

Step 1: Create a Log Analytics workspace

A Log Analytics workspace is required to store and analyze logs and performance data collected from virtual machines.

Azure Monitor uses this workspace as the central repository for performance counters, events, and logs from connected agents.

From the Microsoft Documentation:

“Before you can collect and query data from virtual machines, you must create a Log Analytics workspace in your subscription.”

(Source: Azure Monitor and Log Analytics Guide)

Step 2: Collect Windows performance counters from the Log Analytics agents

After creating the workspace, you must connect VM1 and VM2 to the workspace and configure the Windows performance counters that you want to monitor.

In this case, you would collect the LogicalDisk(%) Free Space counter for C: drive.

Azure Monitor agent or Log Analytics agent collects these metrics and sends them to the workspace for analysis.

“To monitor system performance, configure the agent to collect performance counters such as available memory or free disk space.”

(Source: Azure Monitor Performance Counters Documentation)

Step 3: Create an alert rule

Once performance data is being collected, you can create an alert rule in Azure Monitor based on a Kusto query or metric threshold.

You would define a condition such as:

LogicalDisk | where FreeSpaceMB < 20480

and configure it to trigger an alert when free space on volume C drops below 20 GB.

This alert can notify via email, action group, or automation runbook.

“Alerts in Azure Monitor proactively notify you when important conditions are found in your monitoring data. Alerts can trigger automated actions or notifications.”

(Source: Azure Monitor Alerts Overview)

Incorrect Options (Eliminated):

Configure the Diagnostic settings:

Used for collecting activity logs or resource logs, not performance counters from VMs.

Create an Azure SQL database:

Not relevant to the scenario of monitoring disk space.

✅ Yes, Yes, No

You must identify the correct storage account for flow logging of IP traffic from VM5 that satisfies the retention requirement of eight months.

Step 1 — Review the Requirements

Flow logs are stored in a StorageV2 (general purpose v2) account.

The selected storage account must support Network Watcher flow logs.

Data must be retained for eight months (≈ 240 days).

Step 2 — Evaluate Each Storage Account

Storage Account

Kind

Region

Remarks

storage1

Storage (general purpose v1)

West US

Does not support flow logs (deprecated type).

storage2

StorageV2 (general purpose v2)

East US

Fully supports flow logs and lifecycle management.

storage3

BlobStorage

East US 2

Not suitable — supports blobs only, not log structure or lifecycle retention.

storage4

FileStorage

Central US

File-only — cannot store flow logs.

Step 3 — Compliance with Flow Log Retention

Flow logs for Network Watcher NSG flow logging are supported only by StorageV2 accounts. You can use Azure Storage lifecycle management to automatically delete logs after a set period — such as 240 days (8 months) — to comply with retention requirements.

Official Microsoft Note:

“Network security group (NSG) flow logs are stored in Azure StorageV2 (General Purpose v2) accounts, which support lifecycle management for log retention.” — Azure Network Watcher documentation.

Conclusion

storage2 is the only StorageV2 account.

It’s located in East US, matching VM5’s region (East US) — this satisfies performance and compliance requirements.

In Azure, Load Balancers distribute network traffic across multiple virtual machines (VMs) to ensure high availability and reliability. To add virtual machines to the backend pool of an Azure Load Balancer, the following key conditions must be met according to the Microsoft Azure Administrator documentation:

All VMs in the backend pool must be connected to the same virtual network (VNet) as the Load Balancer.

The Load Balancer (in this case, LB1) is configured for internal load balancing on VNET1/Subnet1 as per the technical requirements of the case study.

The backend pool can include network interfaces (NICs) from VMs within the same region and VNet.

Step-by-step analysis:

From the case study data:

VM

Location

Connected to

IP Address

VM1

West US

VNET1/Subnet1

10.0.1.4

VM2

West US

VNET1/Subnet2

10.0.2.4

LB1

Internal Basic Load Balancer

Connected to VNET1/Subnet1

—

Observation:

VM1 is already connected to VNET1/Subnet1, where the internal Load Balancer LB1 is also deployed.

VM2, however, is connected to VNET1/Subnet2, which is a different subnet within the same virtual network.

According to Microsoft Learn (“Configure backend pools in Azure Load Balancer”):

“All network interfaces in the backend pool must be within the same virtual network as the load balancer. You cannot add VMs connected to different VNets or subnets not associated with the load balancer’s front-end configuration.”

Therefore, before you can add VM2 to the backend pool, you must ensure that its network interface is attached to VNET1/Subnet1, the same subnet used by LB1.

Only after this step will both VMs (VM1 and VM2) be eligible for inclusion in LB1’s backend pool.

Incorrect Option Analysis:

A. Create a new NSG and associate the NSG to VNET1/Subnet1.

❌ Not required. Network Security Groups control traffic filtering, not backend pool configuration.

C. Redeploy VM1 and VM2 to the same availability zone.

❌ Availability Zones only matter for redundancy and failover, not for backend pool eligibility in a basic internal load balancer.

D. Redeploy VM1 and VM2 to the same availability set.

❌ Basic Load Balancers can distribute traffic across VMs in the same availability set, but both VMs must already reside in the same VNet/Subnet first.

Final Verified Answer:

✅ B. Connect VM2 to VNET1/Subnet1

Reference (Microsoft Official Documentation):

Microsoft Learn: Configure the backend pool for Azure Load Balancer

Microsoft Learn: Azure Load Balancer overview

Microsoft Learn: Create and configure an internal load balancer

Microsoft Learn: Virtual network and subnet requirements for load balancing

As App1 is public-facing we need an incoming security rule, related to the access of the web servers.

Scenario: You have a public-facing application named App1. App1 is comprised of the following three tiers: a SQL database, a web front end, and a processing middle tier.

Each tier is comprised of five virtual machines. Users access the web front end by using HTTPS only.

In this scenario, App1 consists of three distinct tiers — web front end, processing middle tier, and SQL database — each containing five virtual machines. The technical requirement specifies that the company must minimize the number of open ports between the App1 tiers, move all tiers of App1 to Azure, and ensure that all VMs are protected by backups.

According to Microsoft Azure architecture best practices for multi-tier applications (from Azure Architecture Center and the Azure Administrator curriculum), the optimal design involves:

Deploying all tiers of App1 into a single virtual network (VNet).

This allows all components of the application to communicate securely using private IP addresses.

Keeping all tiers within a single VNet simplifies management, security, and monitoring while supporting Network Security Groups (NSGs) for inter-tier traffic control.

Microsoft Documentation Extract:

“Use a single virtual network to host multi-tier applications. Divide the virtual network into multiple subnets, each representing a tier, and use network security groups (NSGs) to control traffic flow between tiers.”

(Source: Microsoft Learn – Design and implement virtual networks in Azure)

Creating separate subnets for each application tier (3 total).

Subnet 1: Web tier (internet-facing, HTTPS traffic)

Subnet 2: Application/Processing tier (internal communication only)

Subnet 3: Database tier (private, no internet access)

Using NSGs, administrators can explicitly allow or deny traffic between subnets, thus minimizing open ports between tiers and meeting the security requirement.

Microsoft Documentation Extract:

“Subnets provide isolation and segmentation within a virtual network. Each tier of an application should be deployed in its own subnet to apply network security policies and control exposure.”

(Source: Microsoft Learn – Azure virtual network design best practices)

Backups and Storage Requirements:

All VMs can use Azure Backup integrated with Recovery Services Vaults, which supports VM-level backup in a single VNet environment.

The blueprint files are stored in Azure Blob Storage with the archive tier, ensuring compliance with the storage and access control requirements.

By using one virtual network and three subnets, Contoso ensures efficient management, minimized administrative overhead, secure isolation of application tiers, and full compliance with Azure governance and security recommendations.

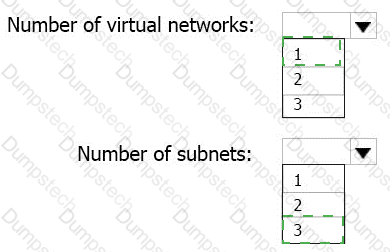

✅ Final Verified Answer:

Number of virtual networks: 1

Number of subnets: 3

Active Directory Federation Services is a feature and web service in the Windows Server Operating System that allows sharing of identity information outside a company’s network.

Scenario: Technical Requirements include:

Prevent user passwords or hashes of passwords from being stored in Azure.

Azure Storage Explorer is a free tool from Microsoft that allows you to work with Azure Storage data on Windows, macOS, and Linux. You can use it to upload and download data from Azure blob storage.

Scenario:

Planned Changes include: move the existing product blueprint files to Azure Blob storage.

Technical Requirements include: Copy the blueprint files to Azure over the Internet.

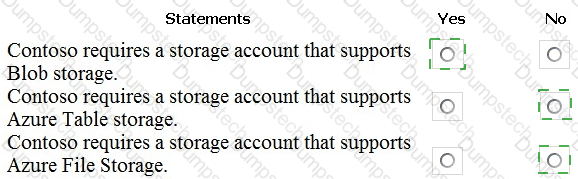

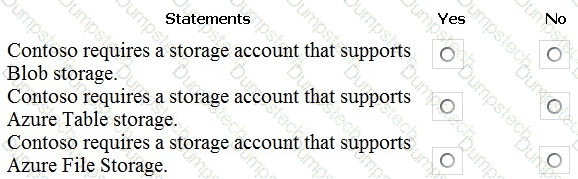

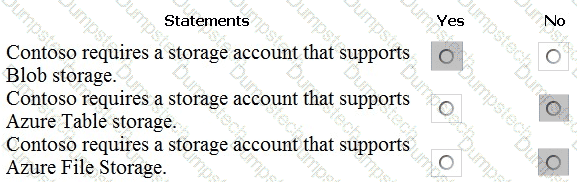

Statement 1: Yes

Contoso is moving the existing product blueprint files to Azure Blob storage which will ensure that the blueprint files are stored in the archive storage tier.

Use unmanaged standard storage for the hard disks of the virtual machines. We use Page Blobs for these.

Statement 2: No

Azure Table storage stores large amounts of structured data. The service is a NoSQL datastore which accepts authenticated calls from inside and outside the Azure cloud. Azure tables are ideal for storing structured, non-relational data. Common uses of Table storage include:

1. Storing TBs of structured data capable of serving web scale applications

2. Storing datasets that don ' t require complex joins, foreign keys, or stored procedures and can be denormalized for fast access

3. Quickly querying data using a clustered index

4. Accessing data using the OData protocol and LINQ queries with WCF Data Service .NET Libraries

Statement 3: No

File Storage can be used if your business use case needs to deal mostly with standard File extensions like *.docx, *.png and *.bak then you should probably go with this storage option.
