Pass the Microsoft Azure Administrator Associate AZ-104 Questions and answers with Dumpstech

https://docs.microsoft.com/en-us/azure/role-based-access-control/tutorial-custom-role-powershell

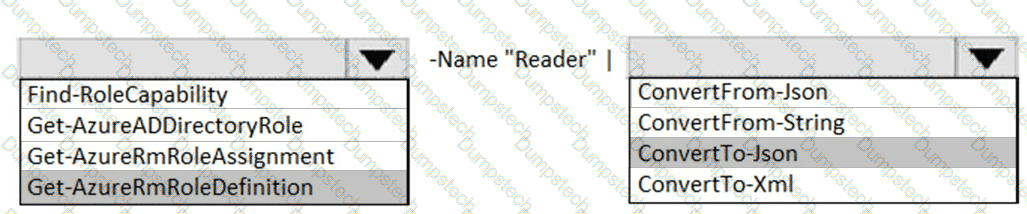

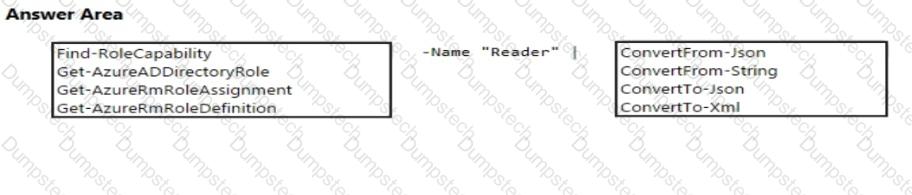

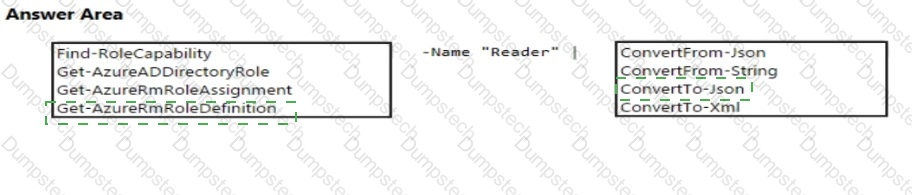

Get-AzRoleDefinition -Name " Reader " | ConvertTo-Json

https://docs.microsoft.com/en-us/powershell/module/az.resources/get-azroledefinition?view=azps-5.9.0

https://docs.microsoft.com/en-us/azure/role-based-access-control/tutorial-custom-role-powershell

https://docs.microsoft.com/en-us/powershell/module/microsoft.powershell.utility/convertto-json?view=powershell-7.1

https://docs.microsoft.com/en-us/powershell/module/azuread/get-azureaddirectoryrole?view=azureadps-2.0

Scenario: Create a workflow to send an email message when the settings of VM4 are modified.

You can start an automated logic app workflow when specific events happen in Azure resources or third-party resources. These resources can publish those events to an Azure event grid. In turn, the event grid pushes those events to subscribers that have queues, webhooks, or event hubs as endpoints. As a subscriber, your logic app can wait for those events from the event grid before running automated workflows to perform tasks - without you writing any code.

Scenario: Litware must meet technical requirements including:

Ensure that VM3 can establish outbound connections over TCP port 8080 to the applications servers in the Montreal office.

IP flow verify checks if a packet is allowed or denied to or from a virtual machine. The information consists of direction, protocol, local IP, remote IP, local port, and remote port. If the packet is denied by a security group, the name of the rule that denied the packet is returned. While any source or destination IP can be chosen, IP flow verify helps administrators quickly diagnose connectivity issues from or to the internet and from or to the on-premises environment.

Technically, The finance department needs to migrate their users from AD to AAD using AADC based on the finance OU, and need to enforce MFA use. This is conditional access policy. Employees also often get promotions and/or join other departments and when that occurs, the user ' s OU attribute will change when the admin puts the user in a new OU, and the dynamic group conditional access exception (OU= [Department Name Value]) will move the user to the appropriate dynamic group on next AADC delta sync.

https://docs.microsoft.com/en-us/azure/active-directory/enterprise-users/groups-dynamic-membership

https://docs.microsoft.com/en-us/azure/active-directory/conditional-access/overview

https://docs.microsoft.com/en-us/azure/active-directory/authentication/howto-mfa-userstates

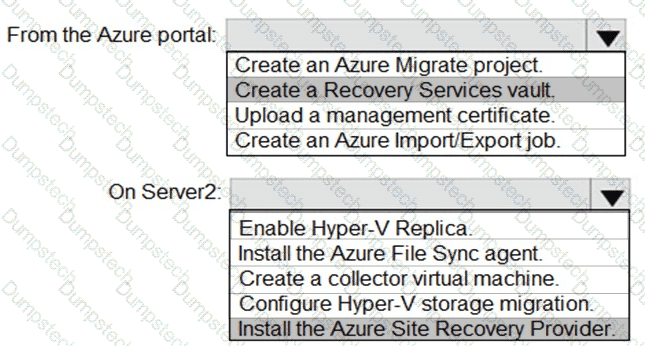

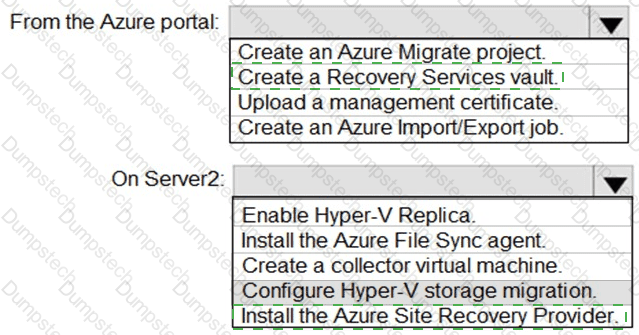

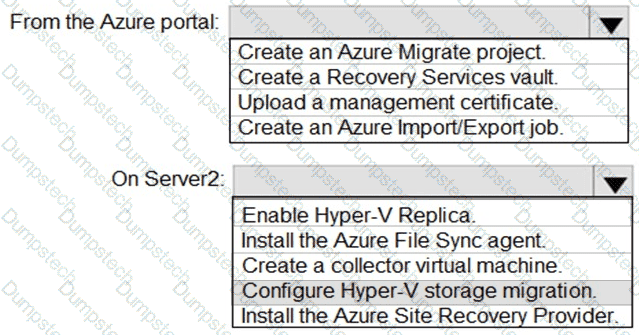

Box 1: Create a Recovery Services vault

Create a Recovery Services vault on the Azure Portal.

Box 2: Install the Azure Site Recovery Provider

Azure Site Recovery can be used to manage migration of on-premises machines to Azure.

Scenario: Migrate the virtual machines hosted on Server1 and Server2 to Azure.

Server2 has the Hyper-V host role.

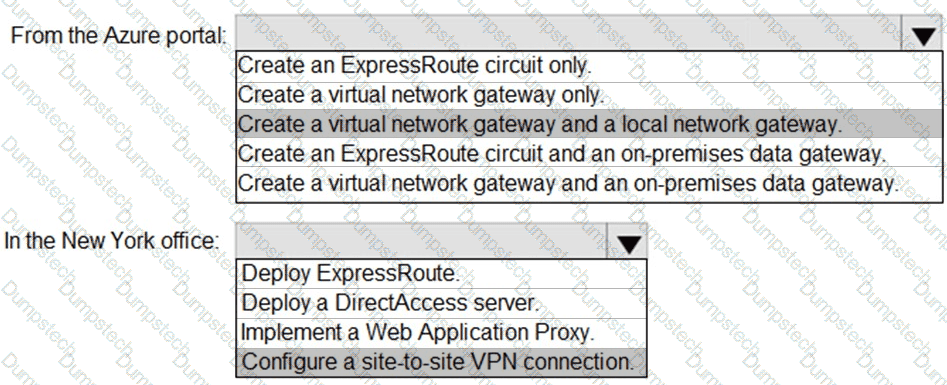

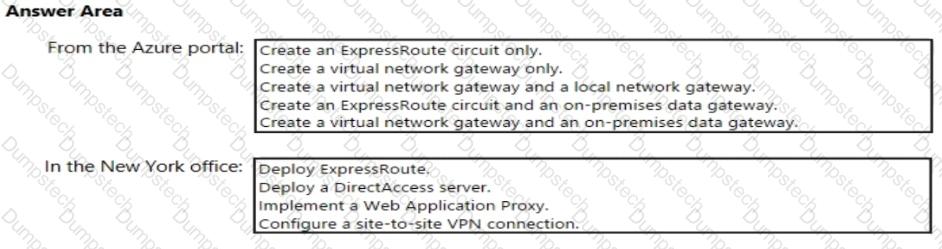

Box 1: Create a virtual network gateway and a local network gateway.

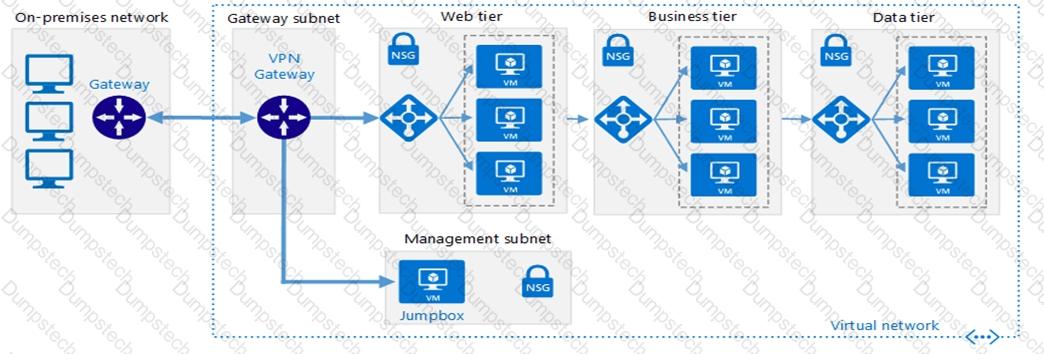

Azure VPN gateway. The VPN gateway service enables you to connect the VNet to the on-premises network through a VPN appliance. For more information, see Connect an on-premises network to a Microsoft Azure virtual network. The VPN gateway includes the following elements:

Virtual network gateway. A resource that provides a virtual VPN appliance for the VNet. It is responsible for routing traffic from the on-premises network to the VNet.

Local network gateway. An abstraction of the on-premises VPN appliance. Network traffic from the cloud application to the on-premises network is routed through this gateway.

Connection. The connection has properties that specify the connection type (IPSec) and the key shared with the on-premises VPN appliance to encrypt traffic.

Gateway subnet. The virtual network gateway is held in its own subnet, which is subject to various requirements, described in the Recommendations section below.

Box 2: Configure a site-to-site VPN connection

On premises create a site-to-site connection for the virtual network gateway and the local network gateway.

Scenario: Connect the New York office to VNet1 over the Internet by using an encrypted connection.

To enable communication between virtual machines (VMs) located in different virtual networks (VNets) in Azure, the most efficient and recommended approach—according to Microsoft Azure Administrator documentation—is to use VNet peering.

1. Background and Scenario Analysis

From the case study:

VM1 and VM4 are located in different VNets (VNET1 and VNET3).

The requirement is to ensure that VM1 can communicate with VM4.

The solution must minimize administrative effort and cost.

2. Microsoft Documentation Insight: VNet Peering

According to Microsoft Learn: “Virtual network peering”:

“Virtual network peering seamlessly connects two Azure virtual networks. The virtual networks appear as one for connectivity purposes. Traffic between peered virtual networks uses private IP addresses, as if they were part of the same network, and the traffic stays entirely on the Microsoft backbone network.”

Key characteristics of VNet peering:

Enables private IP connectivity between resources across peered VNets.

No need to deploy or maintain gateways (unlike VPN gateways).

Provides low latency and high bandwidth.

Supports transitive routing through additional configurations.

Minimal administrative overhead — peering can be created with just a few clicks or PowerShell/CLI commands.

3. Why the Other Options Are Incorrect

A. Create a user-defined route (UDR) from VNET1 to VNET3.

❌ A UDR alone cannot enable connectivity between VNets unless a gateway or peering already exists. Without a connection path, a route has no effect.

B. Assign VM4 an IP address of 10.0.1.5/24.

❌ This would attempt to place VM4 in the same subnet as VM1, but cross-VNet subnet IP assignment is not possible in Azure. Each VNet has its own isolated address space.

D. Create an NSG and associate it with VM1 and VM4.

❌ Network Security Groups control traffic filtering within or between existing network connections. They do not create connectivity between isolated VNets.

4. Why Peering Is the Correct and Simplest Solution

Establishing VNet peering between VNET1 and VNET3 will:

Instantly enable bidirectional private IP communication between VM1 and VM4.

Minimize administrative effort (no gateways, routing tables, or IP reconfiguration).

Maintain security and performance through Microsoft’s internal backbone.

Avoid additional costs compared to deploying VPN gateways.

5. Implementation Summary

Steps to configure:

In the Azure Portal, go to VNET1 → Peerings → Add.

Choose VNET3 as the peer virtual network.

Enable Allow virtual network access in both directions.

Once completed, both VMs (VM1 and VM4) will communicate using their private IPs.

Final Verified Answer: ✅ C. Establish peering between VNET1 and VNET3

References (Microsoft Official Documentation):

Microsoft Learn — Virtual network peering overview

Microsoft Learn — Create, change, or delete a virtual network peering

Microsoft Learn — Azure virtual network connectivity options and recommendations

In Azure, Load Balancers distribute network traffic across multiple virtual machines (VMs) to ensure high availability and reliability. To add virtual machines to the backend pool of an Azure Load Balancer, the following key conditions must be met according to the Microsoft Azure Administrator documentation:

All VMs in the backend pool must be connected to the same virtual network (VNet) as the Load Balancer.

The Load Balancer (in this case, LB1) is configured for internal load balancing on VNET1/Subnet1 as per the technical requirements of the case study.

The backend pool can include network interfaces (NICs) from VMs within the same region and VNet.

Step-by-step analysis:

From the case study data:

VM

Location

Connected to

IP Address

VM1

West US

VNET1/Subnet1

10.0.1.4

VM2

West US

VNET1/Subnet2

10.0.2.4

LB1

Internal Basic Load Balancer

Connected to VNET1/Subnet1

—

Observation:

VM1 is already connected to VNET1/Subnet1, where the internal Load Balancer LB1 is also deployed.

VM2, however, is connected to VNET1/Subnet2, which is a different subnet within the same virtual network.

According to Microsoft Learn (“Configure backend pools in Azure Load Balancer”):

“All network interfaces in the backend pool must be within the same virtual network as the load balancer. You cannot add VMs connected to different VNets or subnets not associated with the load balancer’s front-end configuration.”

Therefore, before you can add VM2 to the backend pool, you must ensure that its network interface is attached to VNET1/Subnet1, the same subnet used by LB1.

Only after this step will both VMs (VM1 and VM2) be eligible for inclusion in LB1’s backend pool.

Incorrect Option Analysis:

A. Create a new NSG and associate the NSG to VNET1/Subnet1.

❌ Not required. Network Security Groups control traffic filtering, not backend pool configuration.

C. Redeploy VM1 and VM2 to the same availability zone.

❌ Availability Zones only matter for redundancy and failover, not for backend pool eligibility in a basic internal load balancer.

D. Redeploy VM1 and VM2 to the same availability set.

❌ Basic Load Balancers can distribute traffic across VMs in the same availability set, but both VMs must already reside in the same VNet/Subnet first.

Final Verified Answer:

✅ B. Connect VM2 to VNET1/Subnet1

Reference (Microsoft Official Documentation):

Microsoft Learn: Configure the backend pool for Azure Load Balancer

Microsoft Learn: Azure Load Balancer overview

Microsoft Learn: Create and configure an internal load balancer

Microsoft Learn: Virtual network and subnet requirements for load balancing

Azure role-based access control (Azure RBAC) for Azure file shares requires identity-based authentication integration. According to the Microsoft Azure Administrator documentation, this feature is only supported for StorageV2 (general purpose v2) and FileStorage account types.

In this scenario:

You are required to grant Group4 read-only access using Azure RBAC on Azure file shares.

The technical requirement specifies:

“Whenever possible, grant Group4 Azure RBAC read-only permissions to the Azure file shares.”

From the case study data:

Storage Account

Kind

Identity-based Access

storage1

Storage (general purpose v1)

Azure AD DS

storage2

StorageV2

Disabled

storage3

BlobStorage

N/A

storage4

FileStorage

Azure AD DS

The Storage (general purpose v1) type (storage1) does not support Azure AD or Azure RBAC integration for file shares. Microsoft documentation clearly states that “StorageV1 accounts must be upgraded to StorageV2 to support Azure AD authentication and RBAC role assignments.”

Meanwhile, FileStorage (storage4) already supports Azure AD Domain Services (Azure AD DS) and RBAC role assignment; hence no further modification is required there. However, to make storage1 compatible, it must be converted from StorageV1 to StorageV2.

Once converted to StorageV2, you can then:

Enable identity-based access for Azure file shares.

Assign Azure RBAC roles (e.g., Storage File Data Reader) to Group4.

Microsoft-Documented Requirements Summary:

Supported Account Types: StorageV2 or FileStorage

Unsupported: StorageV1 and BlobStorage

Required RBAC Roles for Read-Only Access:

Storage File Data Reader (or custom read-only role)

Thus, to meet the organization’s requirement to provide Azure RBAC read-only permissions, you must change the account type of storage1 to StorageV2, ensuring both storage1 and storage4 can be managed with Azure RBAC.
