The complete hardware test after replacing a motherboard is performed from the diagnostics environment, which is reached from the LOADER prompt by using boot_diags, followed by system-level diagnostics such as sldiag. Booting normal ONTAP or ordinary maintenance mode is not the full diagnostics workflow for newly installed field-replaceable components. The motherboard is a core platform component, so the objective is not merely to see whether ONTAP boots; the objective is to run system-level hardware diagnostics using the special diagnostic drivers. Executing sldiag directly from the LOADER prompt is also incorrect because sldiag is run after entering the diagnostic/maintenance environment. In support practice, after controller FRU replacement, the engineer validates the component, checks diagnostic status, clears diagnostic logs if successful, halts back to LOADER if needed, and returns the node to service only after the diagnostic result is clean. References/topics: NetApp system-level diagnostics, LOADER boot_diags workflow, sldiag device testing, and hardware FRU validation.

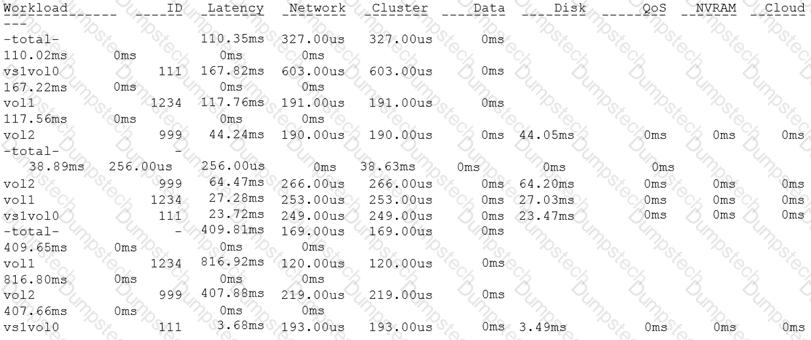

The exhibit is a performance breakdown that separates latency by subsystem, including network, cluster, data, disk, QoS, NVRAM, and cloud columns. When disk latency appears in the path and the workload view indicates delay associated with storage media access, the disk layer must be examined. In systems that use external shelves, SAS connectivity is the transport path between controller and disks, so the SAS adapter is also a logical component to investigate. Cluster switches and network interface cards would be primary suspects if network or cluster latency dominated the output, but the relevant symptom in this type of support workflow points toward back-end storage access rather than client or cluster front-end connectivity. A support engineer should correlate the QoS latency center with physical topology: high disk latency can be caused by a failing disk, shelf pathing, SAS adapter, cable, or shelf module. Therefore, the two strongest components to examine are the SAS adapter and disk. References/topics: ONTAP QoS latency centers, disk latency troubleshooting, SAS path analysis, and storage back-end diagnostics.

The ISL between siteA and siteB is the component causing the problem. The EMS messages show both nodes reporting HA interconnect connection failures and then bridges being removed from opposite sites at essentially the same timestamp. If a single ATTO bridge were the root cause, the failure would localize to that bridge or path. If one SAN switch at siteA_2 or siteB_2 failed, the messages would more narrowly implicate paths through that switch. Instead, both sides simultaneously lose visibility across the fabric to remote bridges, which indicates an intersite link failure between the sites. In a fabric MetroCluster, ISLs carry the cross-site connectivity required for mirrored storage and FC fabric communication. A support engineer should interpret symmetry: simultaneous bridge removals from both perspectives generally point to the shared intersite path, not independent bridge failures at both locations. References/topics: MetroCluster fabric ISLs, FC-to-SAS bridge visibility, DISK REDUNDANCY FAILED messages, cross-site pathing, and MetroCluster fabric troubleshooting.

The event log show command displays entries from ems.log. ONTAP Event Management System messages record significant occurrences in the cluster, such as hardware events, protocol issues, availability messages, and errors that support engineers use for diagnosis. messages.log is a broader system log concept, but event log show queries the event log/EMS content. bcomd.log and mgwd.log are daemon-specific logs and are not the direct source for event log show output. Knowing which command maps to which log matters because support investigations often require collecting the right file rather than searching every diagnostic bundle blindly. If the engineer needs administrative command activity, audit.log is used; if the engineer needs cluster events, EMS/event log is used. The correct mapping for this question is event log show to ems.log. References/topics: ONTAP EMS, event log show, ems.log, cluster event troubleshooting, and log-source selection.

Cloud Manager is the supported tool for upgrading the ONTAP version of a Cloud Volumes ONTAP instance. Cloud Volumes ONTAP is managed through the NetApp cloud management plane, so lifecycle operations such as software upgrades are performed from Cloud Manager/BlueXP rather than directly through traditional on-premises tools. Cloud Insights is an observability and monitoring service, not the upgrade mechanism. Active IQ Unified Manager manages and monitors ONTAP environments but is not the supported CVO upgrade tool in this scenario. ONTAP System Manager is used for ONTAP cluster administration, but Cloud Volumes ONTAP version upgrades are controlled through the cloud working environment in Cloud Manager. The support engineer must distinguish on-premises ONTAP administration from CVO lifecycle management. When the question says supported method for upgrading a CVO instance, the answer is Cloud Manager. References/topics: Cloud Volumes ONTAP lifecycle management, Cloud Manager/BlueXP, CVO software upgrade workflow, and NetApp cloud data services.

FabricPool is the ONTAP technology used to provide a cloud-based capacity tier from an AFF system. FabricPool combines a high-performance local tier, such as an AFF aggregate, with an object-storage cloud tier so that inactive data can be tiered according to policy. Flash Pool is a hybrid aggregate technology that uses SSDs as cache in FAS systems; it does not provide cloud object tiering. NetApp HCI is an infrastructure platform and not an ONTAP aggregate tiering feature. Flash Cache is controller-side caching and does not create a cloud capacity tier. The scenario explicitly says the customer has an AFF platform and wants object storage for cloud capacity. That is the defining use case for FabricPool. A support engineer should map the terms performance tier, capacity tier, cold data, and object storage directly to FabricPool. References/topics: ONTAP FabricPool, AFF aggregates, cloud capacity tier, object storage tiering, and inactive data movement.

For an unexplained ONTAP node reboot without a panic string or core file, the useful log sets are SP status and events all. If there is no panic and no core, the event may have originated below the ONTAP panic path, such as power, service processor, environmental, watchdog, or platform-level behavior. SP status information can reveal service processor state, power events, reset reason indicators, and platform management context. The events all output provides ONTAP EMS context before and after the reboot, allowing correlation with hardware, HA, environmental, or software messages. system core is not useful when no core file was generated. sp status -d is a detailed command variant, but the standard collected set in this answer context is SP status along with the complete event log. A support engineer should collect platform and EMS evidence before assuming a software panic. References/topics: ONTAP unexpected reboot triage, service processor status, EMS event collection, no-panic reboot investigation, and hardware/software diagnosis workflow.

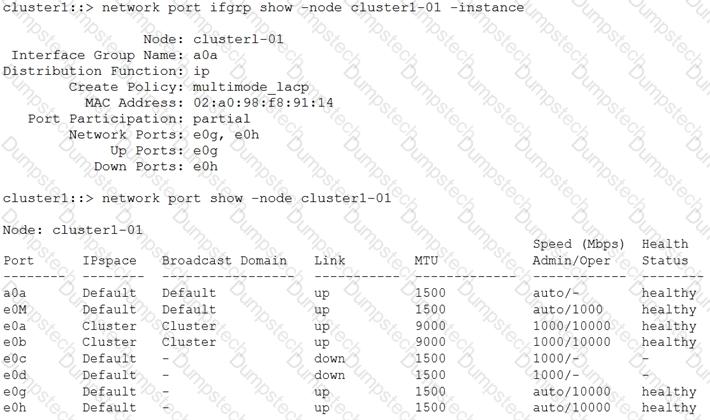

One physical interface is mis-cabled. The interface group output shows that the ifgrp expects specific member ports and that one member is not participating as expected after the network card replacement. The physical port listing shows link state information, but the ifgrp/LACP state indicates the port is not correctly associated with the intended switch-side aggregation. If a port were simply uncabled, the physical link would be down. If the interface were broken, the issue would follow the port regardless of switch-side configuration and would not primarily appear as a membership mismatch. The ifgrp is not configured in single mode; it uses multimode LACP, so switch cabling and LACP membership must match exactly. In support practice, a replacement NIC can lead to cables being swapped into the wrong switch ports or LAG groups. The engineer should verify cabling against the switch LACP configuration and NetApp port membership. References/topics: ONTAP ifgrp troubleshooting, LACP port membership, NIC replacement validation, physical cabling checks, and network port show interpretation.
