VM Connector supports both intra-application and inter-application asynchronous communication. MuleSoft specifically documents that two different Mule applications can publish to and consume from the same VM queue when both applications are part of the same Mule domain and reference the shared VM configuration.

The fact that the applications are deployed to a two-node Mule cluster does not prevent use of VM Connector. In cluster mode, VM queues are cluster-wide resources. Mule's cluster synchronizes access, and messages placed on a VM queue can be processed by another node in the cluster. MuleSoft identifies this as a supported mechanism for distributing asynchronous work across clustered runtime instances.

Therefore, option B is incorrect: each node does not operate an entirely isolated VM queue namespace for a shared clustered configuration. Option D also contradicts VM Connector's documented inter-application use case.

The required architectural condition is that both applications use the same domain/shared VM configuration so they can reference the same queue. The publisher can then send asynchronously while the second API consumes from the shared VM queue.

Reference topics: VM Connector; Mule domains; inter-application communication; persistent/transient queues; Mule HA clustering.

Official documentation: https://docs.mulesoft.com/vm-connector/latest/vm-publish-across-apps

Official documentation: https://docs.mulesoft.com/vm-connector/latest/vm-reference

===============================================================

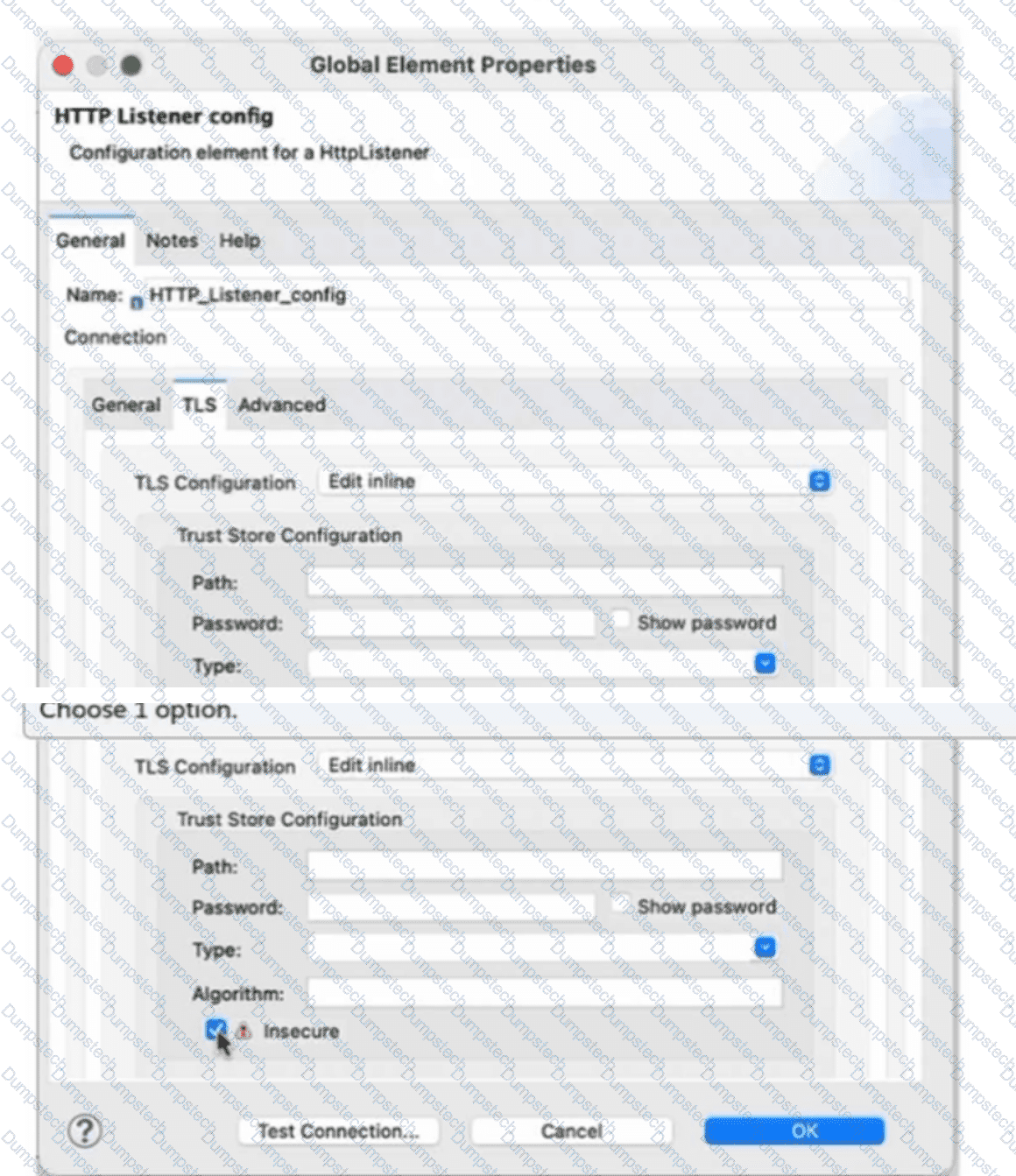

The Insecure setting belongs to Mule's TLS truststore configuration. MuleSoft defines the insecure property as a Boolean that determines whether truststore validation is performed. When insecure="true", Mule stops performing certificate validation.

For an HTTP Listener operating as the TLS server, the truststore is used when validating certificates supplied by connecting clients. Therefore, disabling truststore validation means the listener does not enforce normal trust verification against the configured certificate authorities; effectively, certificates presented by HTTP clients are trusted without the standard certificate-chain validation represented by the truststore. This corresponds to option A.

Selecting Insecure does not convert HTTPS into plain HTTP, so option B is incorrect. It also does not itself enable mutual TLS. Full mutual TLS requires appropriate server key material and client-certificate authentication/trust configuration. Likewise, "Insecure" specifically concerns certificate validation; it should not be interpreted as a generic instruction to bypass every possible authentication mechanism applied to the API.

MuleSoft explicitly warns that this option creates a security vulnerability and is appropriate only for development or prototyping, not production.

Reference topics: TLS Context; Truststore; insecure; client-certificate validation; mutual TLS.

Official documentation: https://docs.mulesoft.com/mule-runtime/4.11/tls-configuration

===============================================================

A TLS cipher suite defines the cryptographic algorithms that the communicating parties use to protect the connection. During TLS negotiation, the client advertises cipher suites that it supports and the server selects a mutually supported suite according to the protocol version and its security configuration.

In TLS 1.2 and earlier, a cipher-suite name can identify several cryptographic components, including key-exchange/authentication mechanisms, the symmetric encryption algorithm, and integrity protection. TLS 1.3 expresses cipher suites differently, but the negotiated suite still determines the authenticated-encryption algorithm used to protect application traffic. MuleSoft's TLS documentation exposes cipher-suite configuration directly, including suites based on AES-GCM and ChaCha20-Poly1305.

The TLS protocol version is negotiated as part of the broader handshake but is conceptually distinct from choosing a cipher suite. Likewise, a public-key format is not what the cipher-suite exchange fundamentally selects, and "a protocol" is too general.

Among the provided choices, an encryption algorithm is therefore the technically correct description of what the cipher-suite negotiation establishes for protecting the session.

Reference topics: TLS handshake; cipher suites; symmetric encryption; AES-GCM; mTLS cryptographic negotiation.

Official documentation: https://docs.mulesoft.com/anypoint-security/cipher-suites

===============================================================

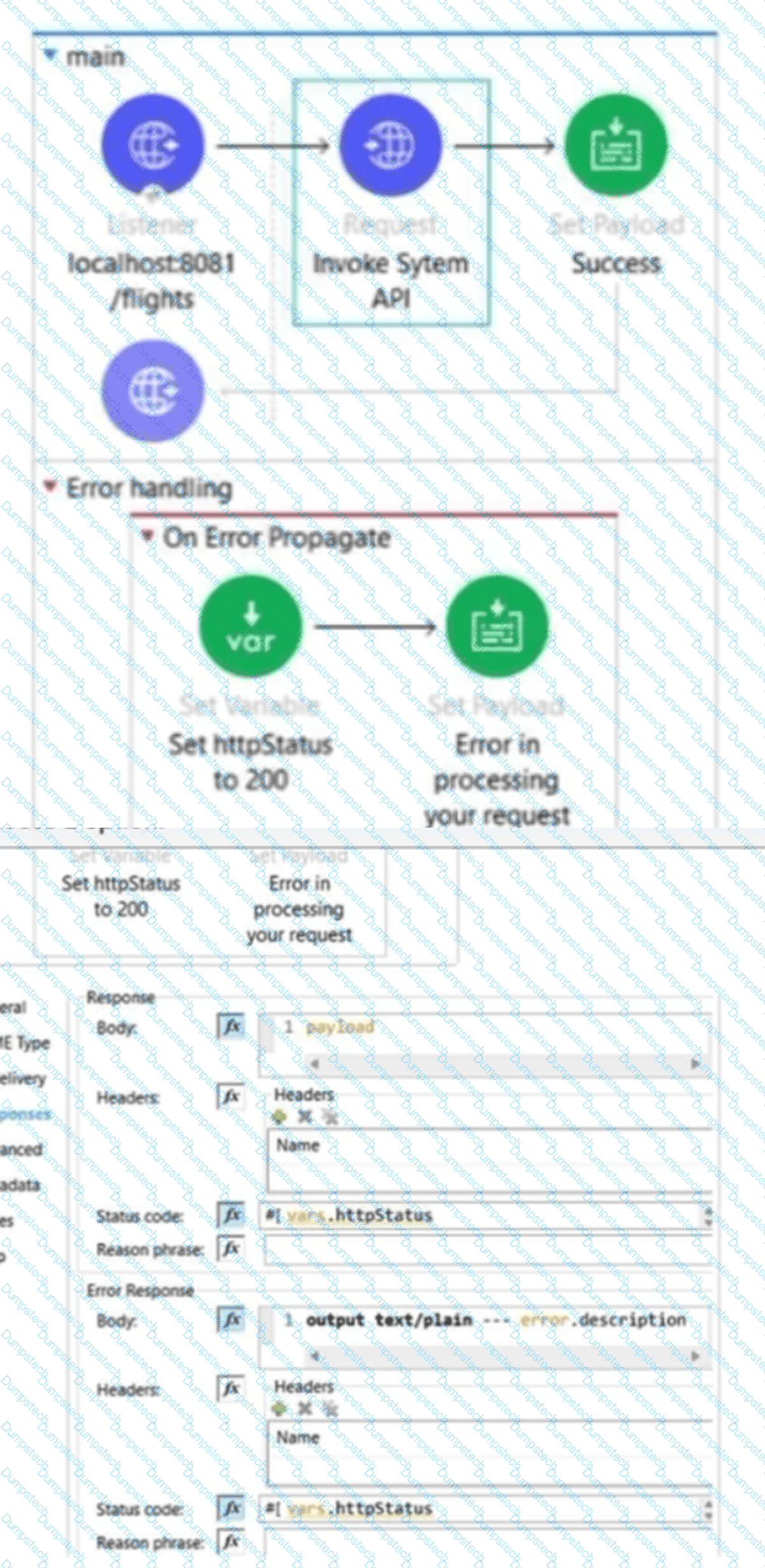

The HTTP Request raises HTTP:CONNECTIVITY, so processing moves to the flow's On Error Propagate handler. Inside that handler, the variable httpStatus is explicitly set to 200, and the payload is changed to "Error in processing your request."

However, because the handler is On Error Propagate, the Mule event remains in an error state after the handler completes. Therefore, the HTTP Listener uses its configured Error Response, not its normal Response configuration.

The exhibit shows that the Error Response status code is:

#[vars.httpStatus]

and its body is explicitly:

output text/plain --- error.description

Consequently, the status code is 200 because the error handler assigned that value to vars.httpStatus, while the body comes from error.description, which contains the description of the HTTP:CONNECTIVITY error. The payload set inside the error handler is not the expression used by the listener's configured Error Response.

MuleSoft documents that unsuccessful listener executions use the error-response definition and that status, body, headers, and other fields can use flow variables and DataWeave expressions.

Reference topics: HTTP Listener Error Response; On Error Propagate; Mule error object; error.description; response status variables.

Official documentation: https://docs.mulesoft.com/http-connector/latest/http-listener-ref

===============================================================

The OAuth 2.0 Authorization Code grant requires several endpoints and client credentials because the Mule application participates in both the user authorization stage and the subsequent authorization-code-to-token exchange.

For the HTTP Request Connector, MuleSoft identifies the principal required configuration fields as the external callback URL, local authorization URL, authorization URL, client ID, client secret, and token URL. The option refers to the token endpoint as the access token URL, which represents the same OAuth server endpoint used to exchange the authorization code for an access token.

The authorization URL redirects the resource owner to the authorization server. The local authorization URL initiates Mule's authorization process. The external callback URL identifies the publicly reachable callback through which the OAuth server returns the authorization code. The client ID and client secret authenticate the registered client application, while the token URL is used for the token exchange.

By contrast, the local callback URL is configurable but not mandatory in the same manner, and fields such as Response Access Token and Response Refresh Token are expressions for extracting provider-specific values rather than fundamental mandatory authorization-code grant parameters.

Reference topics: HTTP Connector Authentication; OAuth 2.0 Authorization Code Grant; Callback URLs; Token Endpoint.

Official documentation: https://docs.mulesoft.com/http-connector/latest/http-authentication

===============================================================

PGP uses asymmetric cryptography for establishing confidentiality between a sender and a recipient. When the Mule application sends encrypted information to the backend service, it encrypts the content using the recipient's public key. Only the corresponding private key, retained by the backend recipient, can subsequently be used to decrypt that content.

MuleSoft's Cryptography Module documentation explicitly identifies the two principal PGP scenarios: outgoing encryption uses another party's public key, while incoming decryption uses the receiver's own private key. In a Mule application, the backend's public key is normally imported into a PGP public keyring, and the Cryptography Module's PGP Encrypt operation references the appropriate key or fingerprint.

The sender does not need the backend's private key. In fact, distributing the recipient's private key would defeat the fundamental security model of public-key cryptography. Both keys would be relevant for certain combined operations such as encryption plus signing, but ordinary encryption for confidentiality requires the recipient's public key. HTTPS/TLS may additionally protect transport, but it is separate from PGP payload encryption.

Reference topics: Cryptography Module; PGP Encryption; Public and Private Keyrings; PGP Encrypt Operation.

Official documentation: https://docs.mulesoft.com/cryptography-module/latest/cryptography-module-pgp

===============================================================

An HTTP webhook provides event-driven notification from an API or service to a client-controlled HTTP endpoint. Instead of requiring the client to repeatedly poll the API for changes, the client registers or supplies a callback URL. When the relevant state transition occurs, the service immediately issues an HTTP request—commonly POST—to that endpoint.

This architecture closely matches the requirement to notify the client as soon as the state change occurs. MuleSoft-supported connectors expose the same webhook model. For example, MuleSoft's connector documentation describes webhook endpoints as URLs that receive notifications about configured events, demonstrating the callback-based semantics of the pattern.

An ETL load is primarily designed for batch-oriented movement and transformation of data and would introduce unnecessary latency. A scheduled event publisher is still time based, meaning notification occurs according to a schedule rather than directly in response to the state transition. A shared database trigger tightly couples applications through the persistence tier and does not constitute an API notification mechanism.

A webhook therefore creates a clean event-driven API contract: the producing service detects the event and actively notifies the registered consumer endpoint.

Reference topics: HTTP webhooks; event-driven API integration; callback endpoints; asynchronous notifications; API consumer decoupling.

Official documentation: https://docs.mulesoft.com/stripe-connector/latest/stripe-connector-reference

===============================================================

VM Connector supports both transient and persistent asynchronous queues, and their recovery behavior differs fundamentally. MuleSoft specifies that transient queues provide better performance but are not reliable when the runtime or host fails. Persistent queues are slower because their content must be persisted, but they provide recovery across failures.

For a standalone Mule runtime, persistent VM queues serialize and store queued message data on disk. Consequently, if the Mule runtime or underlying system stops before an in-flight queued message is consumed, the message can remain available and processing can resume after the runtime becomes operational again.

A transient queue stores its queued state in volatile runtime memory. A system failure destroys that state, so an unconsumed transient message cannot be assumed to survive restart.

Therefore, neither "all messages are lost" nor "all messages are recovered" accurately describes VM behavior; durability depends specifically on the queue type.

For workloads where asynchronous events must survive process or host failure in a supported standalone runtime architecture, a persistent VM queue is therefore the appropriate choice.

Reference topics: VM Connector; persistent queues; transient queues; asynchronous messaging; durability and recovery.

Official documentation: https://docs.mulesoft.com/vm-connector/latest/vm-reference

===============================================================
