Questions # 181:

Refer to the exhibit.

Question # 181

An engineer configures a static route on a router, but when the engineer checks the route

to the destination, a different next hop is chosen. What is the reason for this?

Options:

A.

Dynamic routing protocols always have priority over static routes.

B.

The metric of the OSPF route is lower than the metric of the static route.

C.

The configured AD for the static route is higher than the AD of OSPF.

D.

The syntax of the static route is not valid, so the route is not considered.

Questions # 182:

Which protocol does VRF-Lite support?

Options:

A.

IS-IS

B.

ODR

C.

EIGRP

D.

IGRP

Questions # 183:

Which transport layer protocol is used to form LDP sessions?

Options:

A.

UDP

B.

SCTP

C.

TCP

D.

RDP

Questions # 184:

Which protocol does MPLS use to support traffic engineering?

Options:

A.

Tag Distribution Protocol (TDP)

B.

Resource Reservation Protocol (RSVP)

C.

Border Gateway Protocol (BGP)

D.

Label Distribution Protocol (LDP)

Questions # 185:

What is a role of route distinguishers in an MPLS network?

Options:

A.

Route distinguishers define which prefixes are imported and exported on the edge router

B.

Route distinguishers allow multiple instances of a routing table to coexist within the edge router.

C.

Route distinguishers are used for label bindings.

D.

Route distinguishers make a unique VPNv4 address across the MPLS network

Questions # 186:

Which protocol is used in a DMVPN network to map physical IP addresses to logical IP addresses?

Options:

A.

BGP

B.

LLDP

C.

EIGRP

D.

NHRP

Questions # 187:

An engineer is trying to copy an IOS file from one router to another router by using TFTP. Which two actions are needed to allow the file to copy? (Choose two.)

Options:

A.

Copy the file to the destination router with the copy tftp: flash: command

B.

Enable the TFTP server on the source router with the tftp-server flash: command

C.

TFTP is not supported in recent IOS versions, so an alternative method must be used

D.

Configure a user on the source router with the username tftp password tftp command

E.

Configure the TFTP authentication on the source router with the tftp-server authentication local command

Questions # 188:

Refer to the exhibit.

Question # 188

Why is the remote NetFlow server failing to receive the NetFlow data?

Options:

A.

The flow exporter is configured but is not used.

B.

The flow monitor is applied in the wrong direction.

C.

The flow monitor is applied to the wrong interface.

D.

The destination of the flow exporter is not reachable.

Questions # 189:

Which configuration adds an IPv4 interface to an OSPFv3 process in OSPFv3 address family configuration?

Options:

A.

Router ospf3 1 address-family ipv4

B.

Router(config-router)#ospfv3 1 ipv4 area 0

C.

Router(config-if)#ospfv3 1 ipv4 area 0

D.

Router ospfv3 1 address-family ipv4 unicast

Questions # 190:

Question # 190

Question # 190

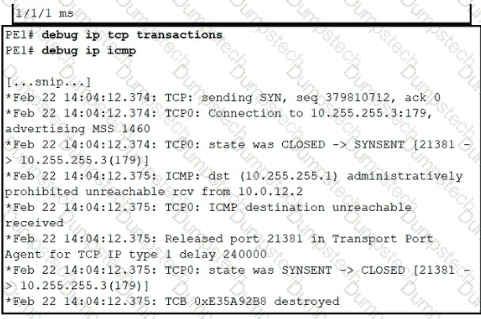

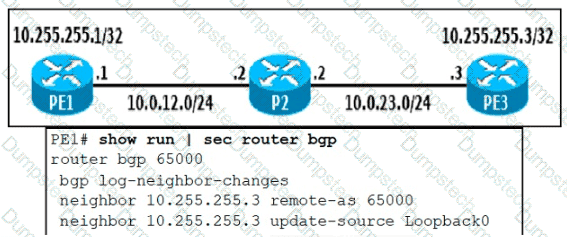

Refer to the exhibit. The administrator is troubleshooting a BGP peering between PE1 and PE3 that is unable to establish Which action resolves the issue?

Options:

A.

P2 must have a route to PE3 to establish a BGP session to PE1

B.

Disable sending ICMP unreachables on P2 to allow PE1 to establish a session with PE3

C.

Ensure that the PE3 loopback address is used as a source for BGP peering to PE1

D.

Remove the traffic filtering rules on P2 blocking the BGP communication between PE1 and PE3

Questions # 191:

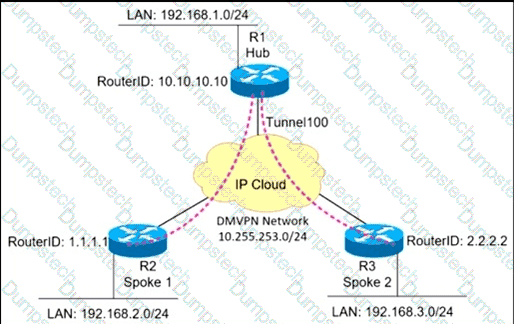

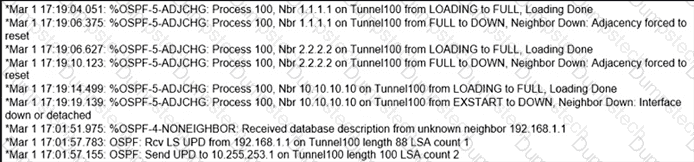

Refer to the exhibit.

Question # 191

Question # 191

A network administrator sets up an OSPF routing protocol for a DMVPN network on the hub router. Which configuration required to establish a DMVPN tunnel with multiple spokes?

Options:

A.

ip ospf network point-to-multipoint on both spoke routers

B.

ip ospf network point-to-point on the hub router

C.

ip ospf network point-to-multipoint on One spoke router

D.

ip ospf network point-to-point on both spoke routers

Questions # 192:

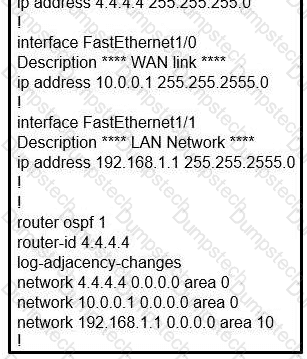

Refer to the exhibit.

Question # 192

A)

Question # 192

B)

Question # 192

C)

Question # 192

D)

Question # 192

Options:

A.

Option

B.

Option

C.

Option

D.

Option

Questions # 193:

Which feature is used by LDP in the forwarding path within the MPLS cloud?

Options:

A.

IP forwarding

B.

TTL

C.

TDP

D.

LSP

Questions # 194:

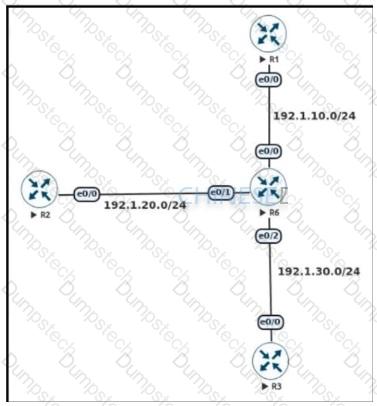

Refer to the exhibit.

Question # 194

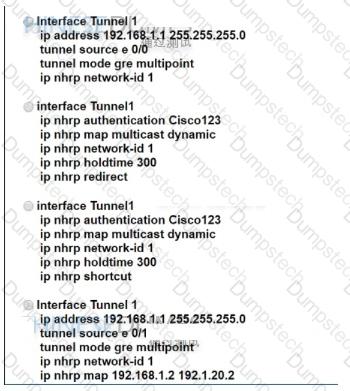

An engineer must configure DMVPN Phase 3 hub-and-spoke topology to enable a spoke-to-spoke tunnel. Which NHRP configuration meets the requirement on R6?

Question # 194

Options:

A.

Option A

B.

Option B

C.

Option C

D.

Option D

Questions # 195:

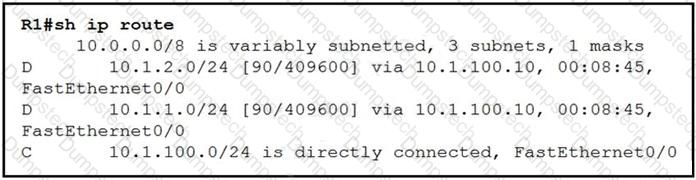

Refer to the exhibit.

Question # 195

An engineer configures the router 10.1.100.10 for EIGRP autosummarization so that R1 should receive the summary route of 10.0.0.0/8. However, R1 receives more specific /24 routes.

Which action resolves this issue?

Options:

A.

Router R1 should configure ip summary address eigrp (AS number) 10.0.0.0 255.0.0.0 for the R1 Fast Ethernet 0/0 connected interface.

B.

Router R1 should configure ip route 10.0.0.0 255.0.0.0 null 0 for the routes that are received on R1.

C.

Router 10.1.100.10 should configure ip route 10.0.0.0 255.0.0.0 null 0 for the routes that are summarized toward R1.

D.

Router 10.1.100.10 should configure ip summary address eigrp (AS number) 10.0.0.0 255.0.0.0 for the R1 Fast Ethernet 0/0 connected interface.
