According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) framework, application health is not just about reachability, but about the functionality of business-critical paths. For an e-commerce checkout process, which involves multiple interactive steps such as " Add to Cart, " " Enter Shipping Info, " and " Finalize Payment, " Transaction monitoring (Option B) is the most beneficial functionality.

Transaction tests provide a high-level view of application performance by executing a script that simulates a real user ' s interaction with the site ' s various components. Unlike HTTP server monitoring (Option A), which merely verifies that a single URL returns a specific status code (like 200 OK), Transaction monitoring validates that the underlying application logic and database transactions are working as expected across the entire session. If a user can reach the homepage but the " Checkout " button fails due to a slow backend API call or a JavaScript error, only a Transaction test will identify the failure and provide a granular waterfall chart to show exactly where the process broke down.

While DNS monitoring (Option C) and Routing visibility (Option D) are crucial for identifying foundational connectivity issues, they are insufficient for monitoring complex transactional workflows. A DNS failure would prevent access to the site entirely, but a " broken " checkout process often occurs while the network and DNS appear perfectly healthy. Transaction monitoring bridges this gap by providing " layer 7 " visibility into the end-to-end user experience, making it the definitive choice for e-commerce performance assurance.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) architecture, a critical design consideration is the impact of the monitoring solution on the production environment. The primary advantage of passive monitoring (Option B) is its non-intrusive nature; it provides insights into network performance and traffic composition without injecting additional " synthetic " overhead into the data plane.

Passive techniques—such as Cisco Meraki Insight (MI) , NetFlow, and SNMP—rely on the telemetry generated by existing user traffic or the device ' s own control plane. For example, Meraki Insight analyzes HTTP/S flows as they naturally pass through a Meraki MX appliance to derive application performance scores, rather than sending separate probes. 5 This ensures that the monitoring tool itself does not consume bandwidth or contribute to network congestion, which is particularly vital in bandwidth-constrained branch environments or on high-utilization links.

In contrast, active monitoring (Options A and C) requires the deliberate generation of synthetic traffic, which can potentially skew results if the volume is too high or if the network is already at capacity. While active monitoring is essential for proactive troubleshooting (measuring performance before users complain), passive monitoring is the preferred method for long-term historical analysis of real user experience and infrastructure utilization because it captures what is actually happening on the wire. Option D is a shared capability; both types can measure specific services, but only passive monitoring does so while remaining transparent to the network load. Therefore, the lack of added traffic is the definitive advantage of the passive approach.

In the framework of Designing and Implementing En 8 terprise Network Assurance (300-445 ENNA) , selecting the correct agent type depends heavily on the vantage point required for the specific observation. For this scenario, the architect must collect metrics from the internal network access layer —the point closest to where the users or devices reside within the corporate perimeter—towards a cloud-hosted destination.

The Enterprise Agent (Option B) is the most appropriate choice because it is specifically designed to be deployed on infrastructure owned and managed by the organization. These agents are " inside-out " vantage points that can be installed directly on Cisco Catalyst 9300 or 9400 Series switches at the access layer using Docker containers. By deploying an Enterprise Agent at the access layer, the architect gains visibility into the entire network path, starting from the internal LAN, traversing the edge/WAN, and reaching into the cloud-hosted web server. This allows for the identification of issues such as local congestion, ISP peering problems, or cloud provider latency.

Other options do not meet the criteria:

Synthetic Agent (Option A): This is a distractor term. All ThousandEyes agents (Cloud, Enterprise, and Endpoint) are synthetic agents because they all perform active synthetic testing.

Cloud Agent (Option C): These are pre-deployed by Cisco in global ISP data centers and provide an " outside-in " view. 14 While useful for monitoring public-facing availability, they cannot provide visibility into the internal network or the access layer of the organization.

Endpoint Agent (Option D): While these are installed on end-user machines and provide a " user-centric " view, they are generally not used for infrastructure-level path analysis from the access layer switches themselves.

Thus, the Enterprise Agent is the definitive choice for monitoring from the access layer to the cloud.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, understanding the visibility gap between the SD-WAN overlay and the transport underlay is a core competency. The provided exhibit illustrates a ThousandEyes Enterprise Agent deployed on a Branch Edge Router performing tests across two distinct paths: Internet (reaching a destination at 64.100.249.90) and MPLS (reaching a destination at 172.29.0.2).

According to the ENNA architecture guidelines, ThousandEyes is primarily utilized to provide hop-by-hop visibility into the underlay network. While SD-WAN controllers like vManage provide native monitoring for the overlay—the logical IPsec tunnels (Option B) that form the SD-WAN fabric—they often lack granular visibility into the physical service provider paths (the underlay) that carry those tunnels. The exhibit specifically highlights the agent probing the transport networks (Transport VPN0) directly, bypassing the overlay tunnels to measure the raw performance of the ISP and MPLS circuits.

By monitoring the underlay (Option A), the engineer can identify if high latency or packet loss is caused by a specific hop within the service provider ' s infrastructure or at a peering point. This " underlay visibility " is critical for troubleshooting SD-WAN performance issues where the overlay may report a tunnel down, but the root cause lies in a BGP routing change or physical fiber cut in the provider network. ThousandEyes Enterprise Agents, natively integrated into Catalyst 8000 and ISR 4000 platforms, allow for this persistent underlay monitoring without additional hardware.

Overlay (Option C): While ThousandEyes can monitor overlay performance, the exhibit ' s focus on the raw IP addresses (Internet and MPLS) in the transport VPN indicates an underlay test.

IPsec/GRE Tunnels (Options B & D): These represent the transport mechanisms of the overlay. ThousandEyes probes the path under these tunnels to ensure the transport health is sufficient to support the fabric.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) framework, a common architectural hurdle is monitoring applications protected by Multi-Factor Authentication (MFA). ThousandEyes transaction tests utilize automated browser sessions to simulate user behavior, but they face inherent limitations when interacting with " out-of-band " security mechanisms.

Specifically, ThousandEyes agents cannot natively interact with external hardware tokens, biometric prompts, or mobile-app-based OTP generators (Option A). Since an OTP is dynamic and time-sensitive, manually entering it into a static test configuration (Option B) is impossible for an automated, recurring test. While some complex workhooks (Option C) might theoretically interface with a virtual MFA service, this introduces significant security risks and architectural complexity that is generally discouraged in a standard assurance design.

The verified and most practical approach is to exclude the MFA step from the transaction test and focus only on the SAML login (Option D). For monitoring purposes, IT teams often create a " synthetic user " account within the Identity Provider (IdP) that is specifically exempted from MFA policies when originating from known ThousandEyes Enterprise Agent IP addresses. This allows the transaction script to validate the availability and performance of the SAML-based SSO redirect, the credential challenge, and the final application landing page. This strategy ensures that the network and application health can be baselined without the test being blocked by a security gate it was never intended to pass.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, monitoring the digital experience of internal employees requires leveraging ThousandEyes Endpoint Agents to simulate or record traffic from the user ' s specific vantage point. When an engineer needs to monitor a specific, potentially internal or non-standard web application, they must utilize the Custom Application workflow within the Endpoint Experience settings.

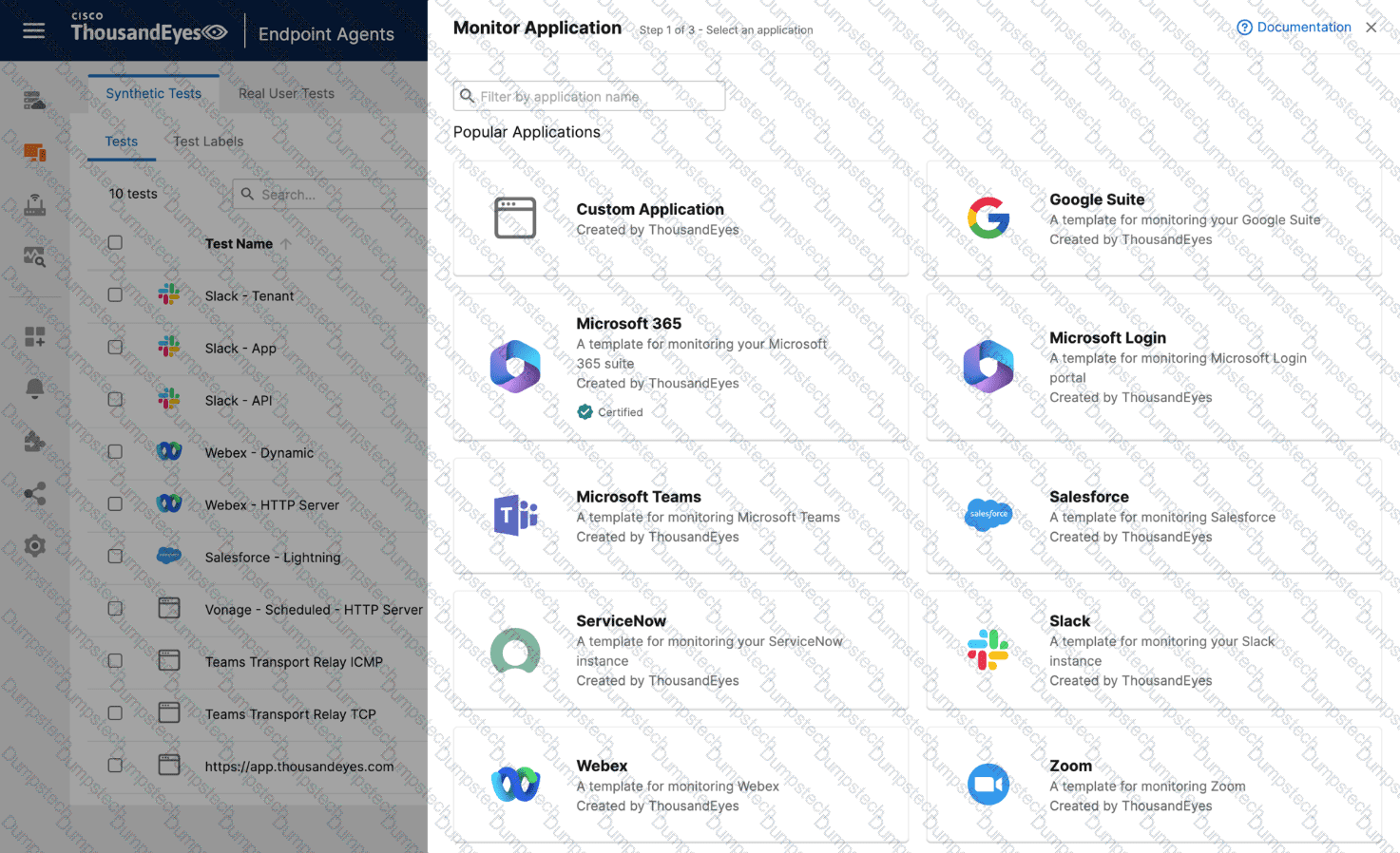

According to the ENNA implementation standards, the first necessary action is to Create a new custom application monitor (Option A). In the ThousandEyes portal under Endpoint Experience > Test Settings > Synthetic Tests , the " Monitor Application " button provides access to pre-defined templates for popular services like Microsoft 365 or Webex. However, for a unique enterprise application, the engineer must select " Custom Application " to define the application ' s identity, including its name and the relevant domain or URL.

The second required action is to Add a new scheduled test to the monitor (Option C). Endpoint Agents perform Scheduled Tests at regular, predefined intervals—such as every 5 or 10 minutes—to proactively check the application ' s availability, response time, and network path health without requiring user interaction. By adding a scheduled HTTP Server or Network test to the custom monitor, the engineer ensures a consistent baseline of the application ' s performance as seen from the employee ' s machine.

Reviewing the incorrect options:

Google Suite monitor (Option B): This is a specific template for Google Workspace and is not suitable for a custom application.

Dynamic Tests (Option D): These are specifically designed for collaboration tools like Zoom or Microsoft Teams to capture ad-hoc sessions; they are generally not used for baselining a standard custom web application.

Test Template (Option E): While all monitors are based on templates, " adding a new template " is not a configuration action but rather a result of the monitoring setup.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, troubleshooting endpoint connectivity requires a systematic analysis of local device logs and network environment changes. According to the log message provided in Exhibit there was a specific timeout error when the agent attempted to reach the ThousandEyes backend. The logs explicitly state: Request to: wss://c1.eb.thousandeyes.com/relay/connect timed out: 12002: The operation timed out.

Since the endpoint was relocated to a new network utilizing static IP assignment , and other endpoints on the same network are functioning correctly, the issue is highly localized to this specific device ' s configuration. In a static IP environment, human error during the manual entry of the IP address, subnet mask, default gateway, or DNS server is a common root cause of connectivity failure. If the gateway is incorrect, the agent cannot reach the internet; if the DNS is incorrect, it cannot resolve c1.eb.thousandeyes.com. Therefore, the best way to bring the endpoint online is to verify the accuracy of the IP settings and test direct connectivity to the ThousandEyes relay URL.

The alternative options do not address the technical evidence found in the logs:

Option A: Moving the device back is a regressive step that does not resolve the need for the device to function in its new location.

Option B: Reinstalling software is a " brute force " method that rarely fixes underlying network-layer misconfigurations like an incorrect static IP.

Option C: A timeout error (12002) indicates a persistent connectivity blockage that will not resolve itself without administrative intervention.

Checking the static IP credentials ensures the device has a valid path to the internet to establish its secure websocket (WSS) connection to the ThousandEyes platform.
