In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) framework, baselining is the process of establishing a " normal " performance profile for network infrastructure to enable the detection of anomalies. When the metric of interest is the internal health of a physical device, such as CPU utilization on a core router, SNMP (Simple Network Management Protocol) is the industry-standard data source.

SNMP provides direct visibility into the device ' s control plane and hardware performance. By polling specific Object Identifiers (OIDs) from the router ' s Management Information Base (MIB), a monitoring system like Cisco Catalyst Center or a third-party NMS can collect granular data on CPU cycles, memory allocation, and temperature. This " inside-out " telemetry is essential for baselining because it reflects the actual resource consumption of the router during various traffic loads.

Conversely, ThousandEyes tests (Options A, B, and D) provide " outside-in " synthetic data. While DNS resolution time (Option A), HTTP response times (Option B), and Path Visualization (Option D) are excellent for measuring end-to-end service delivery and network transit health, they do not report on the router ' s internal hardware state. For instance, a router could have 99% CPU utilization (indicating a potential crash), yet a ThousandEyes path test might still show a " green " path if the data plane (ASICs) is still forwarding packets efficiently. Therefore, to establish a reliable baseline for hardware-specific metrics like CPU, SNMP data (Option C) is the only appropriate source among the choices.

In the context of Designing and Implementing Enterprise Network Assurance (300-445 ENNA) , measuring the " lived experience " of an end-user requires data collection from the actual device being used to access the services. Unlike server-side or infrastructure-side monitoring, user experience (UX) monitoring must account for local variables like Wi-Fi signal quality, CPU/memory usage, and browser-level pe 21 rformance.

The Endpoint Agent (Option D) is the correct choice for this architecture. It is a lightweight software service installed directly on Windows or macOS workstations, as well as RoomOS devices. The Endpoint Agent provides a dual-monitoring approach: Real User Monitoring (RUM) and Scheduled Synthetic Tests . 24 RUM captures actual browser sessions to SaaS (e.g., Salesforce, Microsoft 365) or internal apps, providing a " Experience Score " and a detailed waterfall view of page load components. 25 Simultaneously, the agent can run background synthetic network tests to measure latency and path visualization from the user ' s specific location, whether they are in a branch office, at home on a VPN, or in a coffee shop.

Comparing other agents:

Enterprise Agents (Option B) can simulate a user at a branch office, but they cannot provide insight into the specific health of an individual ' s laptop or their unique Wi-Fi environment.

Cloud Agents (Option C) are entirely outside the user ' s network and cannot measure the performance of internal web applications or the " last mile " connectivity of the employee.

Synthetic Agent (Option A) remains a distractor term.

By deploying Endpoint Agents , the architect ensures they have granular, contextual data that correlates application performance directly with the user’s device and local network environment.

According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) best practices, the goal of a successful endpoint assurance rollout is to maximize coverage while minimizing the burden on both IT staff and end-users. The most effective strategy for achieving this is to use a centralized software deployment tool (e.g., GPOs, Intune) that supports silent installation (Option B).

Centralized deployment tools allow administrators to push the ThousandEyes Endpoint Agent to thousands of machines simultaneously from a single management console. 12 By using silent installation parameters (such as /quiet or /qn for MSI packages), the agent is installed in the background without requiring any user interaction or even showing a setup wizard. 13 This " minimally disruptive " approach ensures that business operations are not interrupted. Furthermore, centralized tools provide a " secure " deployment method because the IT team retains control over the version of the agent being installed and can ensure that the Account Group Token is correctly embedded, which is necessary for the agent to register with the ThousandEyes dashboard.

Contrasting this with other methods:

Manual Installation (Option A): This is not scalable and is highly labor-intensive, making it unsuitable for large enterprises.

Emailing links (Option C) or Web Portals (Option D): These methods rely on the end-user to perform the installation correctly and to have the necessary local administrative privileges. This often leads to low adoption rates, inconsistent configurations, and security risks associated with users running installers manually.

By leveraging existing enterprise infrastructure like Active Directory GPOs or Microsoft Intune , organizations can ensure a 100% compliant deployment that immediately begins providing the " user-centric " visibility required for modern network assurance.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, selecting the appropriate test type is essential for isolating performance bottlenecks in complex web applications. When users report issues with specific multi-step workflows—such as logging into a portal or interacting with a shopping cart—the Transaction test type (Option C) is the most effective tool.

A Transaction test is a specialized Web-layer test that utilizes a script (typically written in JavaScript/TypeScript) to mimic real user interactions with a website. Unlike a simple HTTP Server test (Option A) that only checks for a 200 OK response from a single URL, or a Page Load test (Option B) that measures the rendering of a single page, a Transaction test follows a predefined user journey. For this retail scenario, the test can be configured to navigate to the homepage, enter credentials, click the login button, search for a product, and add it to the cart.

The primary advantage of this approach is that it provides granular, step-specific timing. It allows the engineer to identify precisely where the latency or failure occurs—for example, if the backend database takes too long to process the login or if an API call fails during the " add to cart " action. While Agent-to-server (Option D) and DNS Server (Option E) tests provide valuable network and infrastructure data, they cannot validate the functional logic of a web application. Agent-to-agent (Option F) is used for measuring throughput between two managed points and is irrelevant for public-facing website testing. Therefore, for troubleshooting interactive web processes, the Transaction test type is the definitive choice for pinpointing the source of the issue.

In the ThousandEyes platform, alert rules are the primary mechanism for notifying operations teams when performance thresholds are breached. When configuring alerts for Endpoint Agent HTTP Server tests , the available metrics are limited to those that the Endpoint Agent captures during its synthetic browser-based or network-layer probes.

The two correct metrics for this test type are Response Time (Option A) and Error Type (Option C).

Response Time: This metric measures the time-to-first-byte. It is essential for detecting degradations in web application performance as seen from the user ' s specific machine.

Error Type: This allows administrators to trigger alerts based on specific HTTP response codes or protocol errors (e.g., DNS failures or SSL handshake issues).

Other options are incorrect because they apply to different agent types or monitoring layers:

BGP Reachability (Option B): BGP metrics are not applicable to Endpoint Agent tests. These metrics require the BGP route visualization layer, which is typically associated with Cloud or Enterprise Agents monitoring public internet paths.

Interface Throughput (Option D): This is an infrastructure-level metric rather than a synthetic application metric. While ThousandEyes can monitor device health via SNMP, it is not a metric used in a synthetic HTTP Server test.

By utilizing Response Time and Error Type, an architect can ensure that the operations team is alerted as soon as users experience slow loading or actual failures when accessing critical internal or SaaS-based web applications.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, identifying routing anomalies such as BGP Hijacking is a critical aspect of external network assurance. A BGP Hijack occurs when an Autonomous System (AS) illegitimately announces a prefix it does not own, causing traffic intended for the rightful owner to be misdirected.

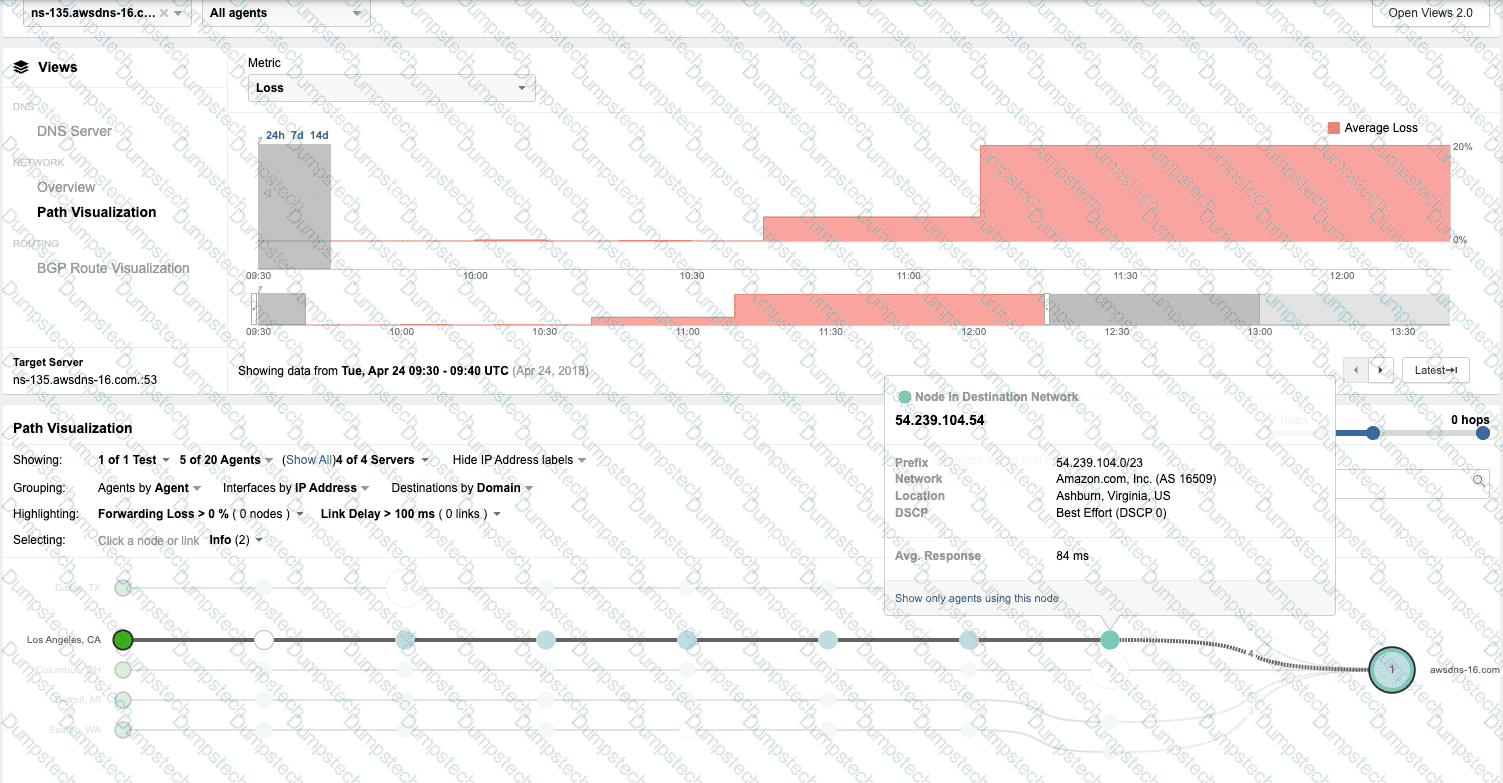

By contrasting Exhibit 3.4-1 (Before the Outage) and Exhibit 3.4-2 (During the Outage), a definitive change in the routing path is observed. In the baseline view (Exhibit 3.4-1), traffic from the Los Angeles agent reaches the destination network 54.239.104.0/23, which is correctly associated with Amazon.com, Inc. (AS 16509) . However, during the outage (Exhibit 3.4-2), the path visualization shows the traffic being redirected into a different network: eNET Inc. (AS 10297) . At this new location, the traffic encounters 100% Forwarding Loss at the node ten7-8.core-2.xlhost.com.

The change in the Autonomous System (AS) number from 16509 to 10297 (Option B) is the most concrete indicator of a BGP Hijack. While symptoms such as Availability Drop (Option A), Response Delay (Option C), and Packet Loss (Option D) are clearly visible in the ThousandEyes telemetry, these symptoms are generic and could be caused by various other issues like physical link failures or congestion. The shift in the AS path—specifically to an AS that does not legitimately host the target ' s IP prefix—provides the forensic evidence needed to identify the root cause as a routing takeover. This visualization allows network administrators to bypass internal troubleshooting and immediately focus on external remediation with upstream providers.

For the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) exam, understanding enterprise-scale deployment of the Endpoint Agent (EPA) is vital for ensuring comprehensive user-centric visibility. When an organization utilizes a Microsoft Domain Controller to manage its internal domain, the standard mechanism for automated software distribution is Group Policy Objects (GPOs) (Option B).

Deploying the ThousandEyes Endpoint Agent via GPO allows a network administrator to push the .msi installer package to all Windows-based workstations joined to the domain. This method is highly effective for large-scale environments because it ensures that the agent is installed automatically upon machine startup or user login, without requiring manual intervention from the end-user or the IT staff at each individual machine. The GPO can be configured to perform a " silent installation, " which runs in the background, ensuring a seamless experience for the employees while providing the IT team with the necessary performance metrics.

While Microsoft Intune (Option A) is a modern cloud-based endpoint management solution, the question specifically references a Microsoft Domain Controller , making GPO the most direct and traditional choice for that specific infrastructure. JAMF (Option C) is specifically for Apple (macOS/iOS) device management and would not be used for a Windows domain deployment. 8 PowerShell (Option D) can be used for scripting, but it lacks the centralized policy enforcement and automatic compliance checking provided by GPOs in an Active Directory environment. Therefore, Group Policy Objects is the verified deployment method for this scenario.
