When sizing a migration from a highly efficient array like the HPE Alletra 9000 (or Primera) to the next-generation HPE Alletra MP B10000, storage architects must account for the difference between the "Written Capacity" (what the host thinks it has stored) and the "Consumed Capacity" (the physical space used after data reduction).

The standard best practice for an HPE Master ASE when performing these migrations is to Size to consumption multiplied by 1.25. This "1.25 factor" (representing a 25% overhead) is the recommended safety margin used in sizing tools like HPE NinjaStars and the HPE Cloud Physics assessment reports.

This 25% buffer is designed to cover several critical architectural requirements:

System Metadata and Overhead: Both the Alletra 9000 and Alletra MP require physical capacity to store internal metadata, map tables, and the structures required for their respective data reduction engines.

Snapshot Reserve: While snapshots are thin and pointer-based, they still consume physical space as data changes over time. The 1.25 multiplier ensures there is enough "headroom" for typical snapshot retention policies.

Data Reduction Parity: Data reduction ratios (deduplication and compression) can fluctuate based on the specific workload. Sizing exactly to current consumption without a buffer risks an out-of-space condition if the new array's reduction engine handles a specific block pattern slightly differently during the initial ingest.

Operational Performance: SSD-based arrays perform best when they are not "packed" to 100% capacity, as the garbage collection and wear-leveling processes require free blocks to operate efficiently.

Sizing to "original capacity" (Option D) would lead to a massive over-provisioning and wasted cost, as it ignores the benefits of modern data reduction. Option C (1.5) is generally considered overly conservative for modern flash environments, while 1.25 provides the optimal balance of cost-efficiency and technical risk mitigation.

The HPE Alletra MP is a modular, disaggregated storage platform designed to provide different storage personas (Block or File/Object) based on the software stack installed on the controller nodes. However, the minimum hardware "footprint" required to form a functional, supported cluster differs significantly between these personas.

For HPE GreenLake for File Storage (which utilizes the Alletra MP X10000 hardware and provides both File and Object protocols), the architecture is based on a disaggregated shared-everything (DASE) model. According to the HPE Alletra MP Installation and Architecture Guide, the minimum supported configuration for a File/Object cluster is three X10000 controller nodes. This 3-node minimum is a hard requirement to establish proper quorum and high availability for the V-Tree metadata and the distributed file system logic. A single X10000 node (as suggested in Options A and C) cannot function as a standalone file/object cluster in a production environment.

Furthermore, the Alletra MP X10000 persona is specifically optimized for high-density unstructured data (File and Object). While the B10000 persona (Options A, B, and C) is intended for Block storage, the question asks for a solution that covers file, object, and block. In many modern software-defined or unified scenarios, especially those aligned with the Alletra MP's future-proof roadmap, the X10000 hardware can serve multiple personas. However, strictly following the current architectural minimums for the File/Object requirement mentioned, you must have at least three nodes. Therefore, a 3-node cluster of X10000s is the foundational requirement to even begin providing the file and object services the customer needs. Options A and B fail the minimum cluster size requirement for the File/Object persona.

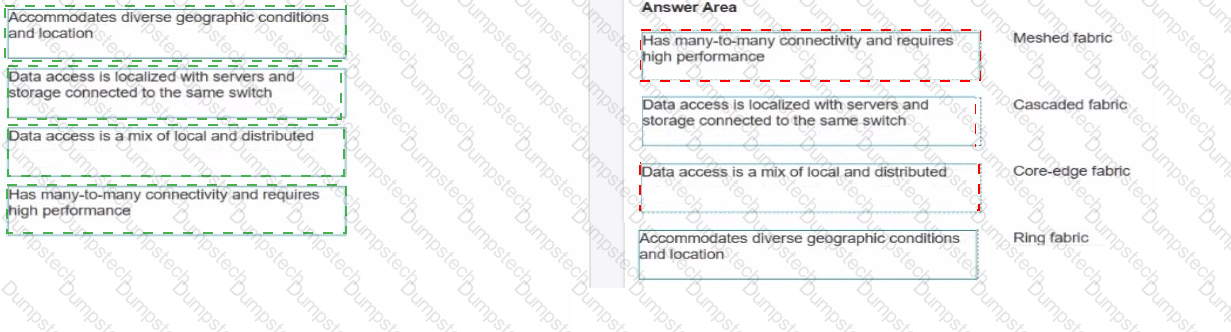

Meshed fabric: Has many-to-many connectivity and requires high performance.

Cascaded fabric: Data access is localized with servers and storage connected to the same switch.

Core-edge fabric: Data access is a mix of local and distributed.

Ring fabric: Accommodates diverse geographic conditions and location.

In the design of modern Storage Area Networks (SANs), selecting the right topology is critical for balancing performance, scalability, and cost. Each of these Brocade/HPE B-series architectures serves a specific workload profile:

Meshed Fabric: This design provides the highest level of redundancy and performance by connecting switches in an "any-to-any" pattern. Because every switch is connected to multiple other switches, it provides many-to-many connectivity and minimized "hop counts," making it ideal for high-performance environments where application traffic is unpredictable and widely distributed.

Cascaded Fabric: The simplest topology, where switches are connected in a serial or daisy-chain fashion. It is most effective in small environments where data access is localized—meaning the server and the storage it needs are physically connected to the same switch, minimizing Inter-Switch Link (ISL) traversal.

Core-Edge Fabric: The standard for enterprise data centers. Servers are connected to "Edge" switches, and storage is connected to a high-capacity "Core". This allows for a mix of local and distributed data access. Large enterprises use this to scale easily by adding edge switches without disrupting the core storage connectivity.

Ring Fabric: By connecting switches in a closed loop, this topology is designed to accommodate diverse geographic conditions. If a single link between two locations fails, traffic can be re-routed the other way around the ring. This provides a cost-effective way to link multiple sites or campus buildings while maintaining fabric integrity.

The HPE Solutions for Qumulo are a result of a strategic partnership designed to provide a high-performance, scale-out NAS (Network Attached Storage) platform for unstructured data. According to the HPE Solutions with Qumulo Reference Architecture, the primary hardware platform utilized for these factory-built, integrated solutions is the HPE Apollo 4000 series, specifically the HPE Apollo 4200.

The Apollo 4200 is chosen for this role because it is a density-optimized, storage-centric server that provides an ideal balance of compute and massive internal storage capacity within a standard 2U rack footprint. Architecturally, the Apollo 4200 supports an "SSD-first" hybrid configuration or an all-flash configuration, which aligns perfectly with Qumulo's file system requirements. Qumulo’s software uses the SSDs for a high-speed metadata layer and write-cache, while utilizing high-capacity HDDs for the data plane, ensuring that even with billions of files, the system maintains near-flash performance.

While the HPE ProLiant DL325 is also used for specific all-NVMe nodes in the Qumulo portfolio, the Apollo 4200 remains the foundational building block for the hybrid and archive nodes that comprise the bulk of enterprise deployments. The HPE Apollo 4500 (Option D) is a 4U system that, while part of the Apollo family, is not the standard integrated platform for the mainstream Qumulo joint offering. The HPE Alletra 5000 (Option B) is a block-storage-focused platform derived from the Nimble lineage, and the ProLiant DL360 (Option C) is a general-purpose 1U compute server that lacks the internal drive density required for a high-capacity scale-out file storage solution. By selecting the Apollo 4200, customers benefit from a pre-validated, factory-integrated solution that simplifies the deployment of massive file lakes for workloads like video surveillance, medical imaging, and big data analytics.

The deployment of the HPE CSI (Container Storage Interface) Driver involves several sequential steps to enable dynamic provisioning of storage on HPE Alletra 9000 arrays. Once the Helm repository has been added, the administrator must provide the driver with the necessary authentication and connectivity details for the storage backend.

According to the HPE Storage Container Orchestration Documentation (SCOD), the definitive next step to enable communication between the Kubernetes cluster and the Alletra 9000 is to create a Kubernetes Secret. This Secret contains critical parameters such as the storage array's IP address or FQDN, and the management credentials (username and password). Without this Secret, the CSI driver cannot authenticate against the Alletra 9000 REST API to perform volume creation, mounting, or snapshot operations.

While creating a StorageClass (Option C) is a required step, it follows the creation of the Secret. The StorageClass definition must specifically reference the name of the Secret to identify which storage backend should be used for a particular tier of service. Option A (creating a namespace) is often done as part of the helm install command itself (using the --create-namespace flag) and is a general administrative task rather than a storage-specific configuration step. Option D is incorrect as the Alletra 9000 does not pull credentials from the Kubernetes conductor; rather, the Kubernetes driver pushes requests to the array using the credentials stored in the Kubernetes Secret. Establishing this secure handshake via the Secret is the foundational step for all subsequent persistent volume (PV) and persistent volume claim (PVC) activities.

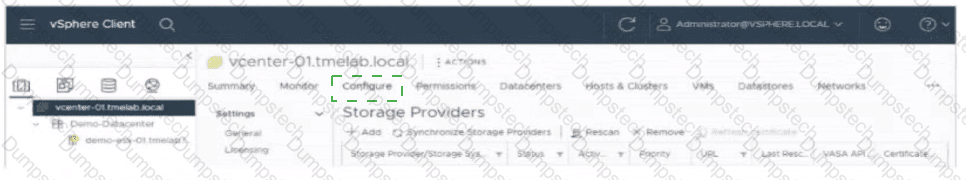

Configure

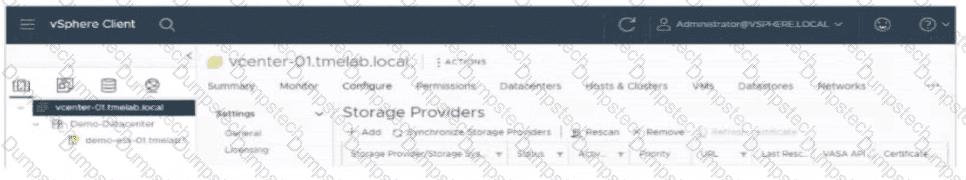

In a VMware vSphere environment, integrating HPE Alletra storage typically involves the installation of the HPE Storage Peer Motion Utility or the HPE Storage Connection Manager for VMware, which provides the VASA (vSphere APIs for Storage Awareness) provider functionality. This integration allows vCenter to manage storage arrays directly for tasks such as provisioning Virtual Volumes (vVols) and monitoring storage health.

According to the HPE Alletra Integration Guide for VMware, after the plug-in or provider is registered with vCenter, an administrator can verify its status through the vSphere Client UI. As shown in the exhibit (image_64a7b7.png), the administrator is currently viewing the Storage Providers section under the Configure tab of the vCenter object. This specific view is the correct location to verify that the HPE VASA provider is active and communicating. The list under "Storage Provider/Storage System" should show the Alletra array's URL and a status of "Active" or "Online."

If the administrator wants to verify the registration of the UI-based plug-in itself (which adds specific HPE menus and dashboards), they should click the three dots (...) at the end of the navigation bar. This reveals additional hidden tabs where specialized vendor extensions, such as the HPE Storage dashboard, are located. Successful installation is confirmed if the HPE-specific provider is listed with a valid certificate and the "Last Rescan" time is current. Failure to see the provider in this list indicates that the registration process (typically performed via the array's management console or a separate appliance) was not completed successfully, which would prevent the use of advanced features like Storage Policy Based Management (SPBM).

The HPE Timeless Program is a strategic lifecycle management offering designed to future-proof customer investments in the HPE Alletra Storage MP platform (specifically the B10000 for Block). The program provides benefits such as a non-disruptive controller refresh at no additional cost after three or more years, all-inclusive software licensing, and a 100% data availability guarantee.

To qualify for the HPE Timeless Program, the storage configuration must meet specific minimum hardware requirements to ensure it can support future generations of controller technology without a "forklift" upgrade. According to the HPE Master ASE Advanced Storage Architect training materials and program guidelines, the entry-level qualification for the Timeless benefit on Alletra MP requires the system to be configured with at least 16-core controller nodes (CNodes) and a minimum capacity threshold of 42TB RAW storage.

While the Alletra MP architecture supports 8-core, 16-core, and 32-core nodes, the 8-core "entry" models are often excluded from certain enterprise-level refresh programs because they may not provide sufficient overhead for the performance requirements of next-generation operating systems. Option C (32 cores and 92TB) represents a higher-tier mission-critical configuration but is not the minimum required for program eligibility. Option A is incorrect as the Alletra MP supports both switchless (2-node) and switched (multi-node) configurations, with switchless systems also being eligible. Option B is incorrect as the program is built into the support contract and purchase price rather than requiring a separate refundable "reservation fee".

In Brocade B-series Fibre Channel fabrics, ISL (Inter-Switch Link) Trunking is an optional licensed feature that allows multiple physical links between two switches to be aggregated into a single logical high-bandwidth pipe. While two switches can connect via a standard ISL without a specific license, the "Trunking" capability—which enables frame-level load balancing across those links—requires the ISL Trunking license to be installed and active on both participating switches.

According to the Brocade Fabric OS Administration Guide, if the license is missing or expired, the ports will function as individual ISLs rather than a unified trunk. This leads to the "failure to initialize" as a trunk, where the ports might stay in a "Master" or "Active" state individually but never form a "Trunk port" relationship. A common troubleshooting step after installing the license is to portdisable and then portenable the affected ports to force the fabric to re-negotiate the trunking capability.

Options B and D are technically incorrect because trunking specifically requires E_ports (Expansion Ports) used for switch-to-switch connectivity; converting them to F_ports (Fabric ports) would make them intended for end-device (host/storage) connectivity, which does not support ISL trunking. Furthermore, for a trunk to form, the ports must be within the same physical port group on the ASIC (e.g., ports 0-7 or 8-15 on many fixed-port switches), making Option D the opposite of what is required for success. By ensuring the Trunking license is present, the administrator enables the hardware and software to utilize the Exchange-Based Routing (EBR) or frame-based trunking protocols necessary for the solution.

The HPE Alletra 4000 series (specifically the Alletra 4110 and 4120) are technically classified as Storage Servers. Unlike traditional "closed" storage arrays like the Alletra 6000 or 9000, the Alletra 4000s are open platforms derived from the HPE Apollo lineage, designed to run Software-Defined Storage (SDS) stacks such as HPE Ezmeral Data Fabric, Scality, or Qumulo.

Because these systems are fundamentally high-density servers, their lifecycle management—including firmware updates (BIOS, iLO, controllers), health monitoring, and remote configuration—is integrated into the HPE GreenLake for Compute Ops Management (COM) service. COM provides a cloud-native console designed specifically for server administrators to manage fleets of ProLiant and Alletra 4000 servers from a single pane of glass.

While the customer is building a storage solution, the Data Ops Manager (DOM) (Option D) is the control plane for HPE’s specialized block and file arrays (managed via DSCC) and is not the tool used for raw storage server hardware management. Similarly, the "File Storage" and "Block Storage" tiles in GreenLake refer to specific Storage-as-a-Service (STaaS) offerings rather than the underlying hardware management for SDS building blocks. For a partner designing an Ezmeral solution on Alletra 4000, Compute Ops Management is the correct tool to ensure the hardware stays compliant with the latest HPE Service Pack for ProLiant (SPP) and firmware baselines required for stable SDS operations.

HPE Morpheus Enterprise is a comprehensive multi-cloud management and orchestration platform that enables self-service provisioning and lifecycle management across private and public clouds. To accurately size and quote a Morpheus solution in tools like HPE Online Config Advanced (OCA), the primary licensing metric is the Workload Element (WLE), also frequently referred to as a Workload Element (WE) in some documentation.

A Workload Element is defined as a granular unit of compute directly associated with an application service that is being managed or inventoried by Morpheus. This includes:

Virtual Machines (VMs) on-premises (e.g., VMware vCenter, Hyper-V).

Instances in the public cloud (e.g., AWS EC2, Azure VMs, Google Cloud instances).

Bare metal servers if they are provisioned to run application services.

Container deployments (such as Kubernetes pods).

Importantly, Morpheus does not count supporting infrastructure like storage arrays, load balancers, or physical hypervisor hosts (e.g., the physical server running ESXi) as Workload Elements. Licensing is typically based on a concurrent model, meaning the customer must license the total number of WLEs under management at any given time, regardless of whether they are located on-prem or in a public cloud. Therefore, the partner must calculate the aggregate sum of all VMs and cloud instances the customer intends to manage to ensure the license quantity in OCA is correct.
