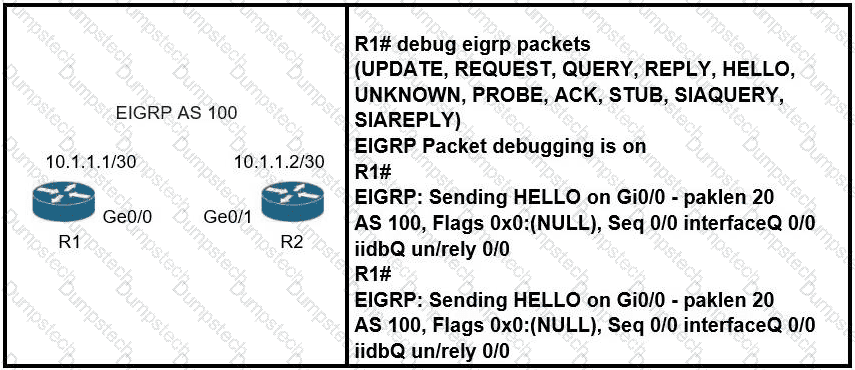

EIGRP does not have process ID as it uses Autonomous System (AS) numbers only.

This is not an authentication problem or we would see this error from the debug:

EIGRP: Ethernet0/0: ignored packet from 10.1.1.3, opcode = 1 (missing authentication or key-chain missing)

If the AS numbers between two routers are different then the neighbor relationship cannot be formed.

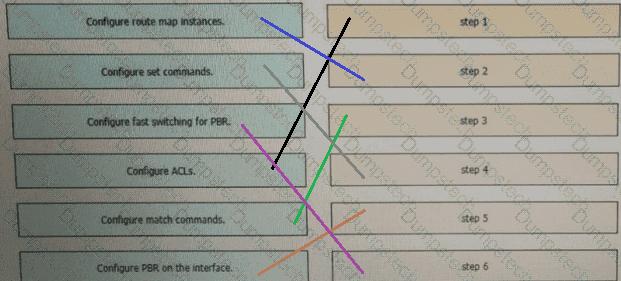

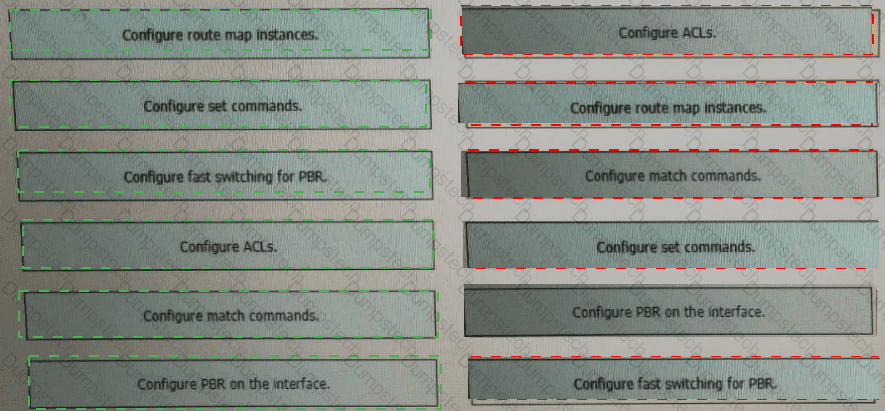

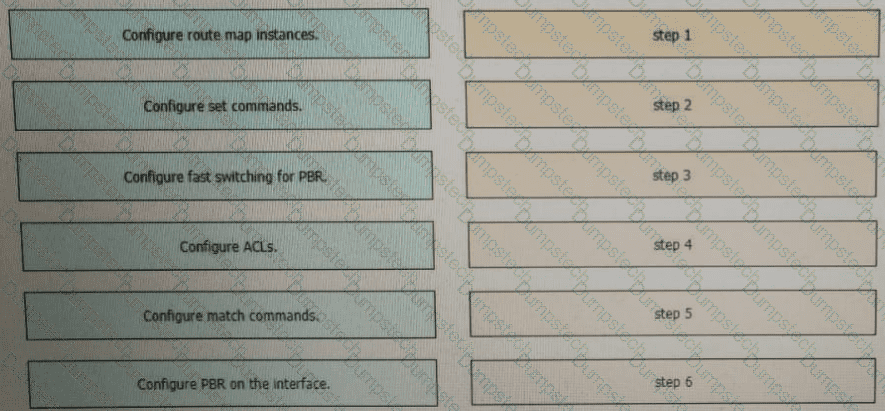

https://community.cisco.com/t5/networking-documents/how-to-configure-pbr/ta-p/3122774

The Destination Guard feature helps in minimizing denial-of-service (DoS) attacks. It performs address resolutions only for those addresses that are active on the link,and requires the FHS binding table to be populated with the help of the IPv6 snooping feature.The feature enables the filtering of IPv6 traffic based on the destinationaddress, and blocks the NDP resolution for destination addresses that are not found in the binding table. By default, the policy drops traffic coming for an unknowndestination.

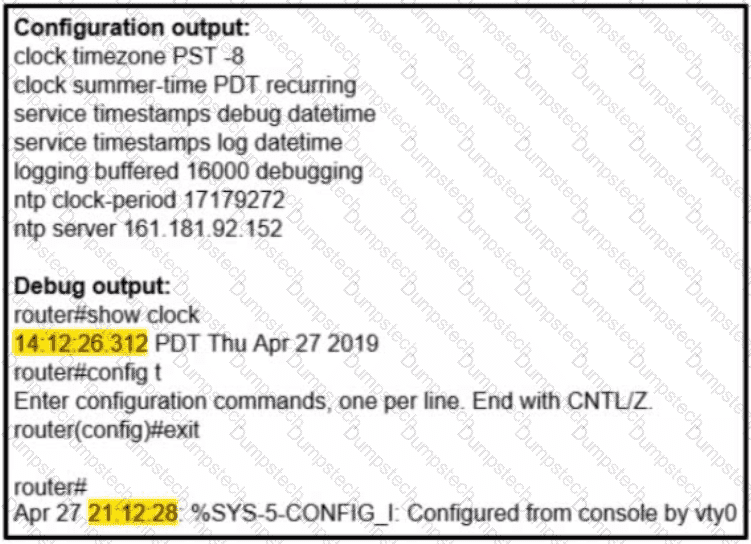

If a router is configured to get the time from a Network Time Protocol (NTP) server, the times in the router’s log entries may be different from the time on the systemclock if the [localtime] option is not in the service timestamps log command. To solve this issue, add the [localtime] option to the service timestamps log command. Thetimes should now be synchronized between the system clock and the log message timestamps.

Explanation

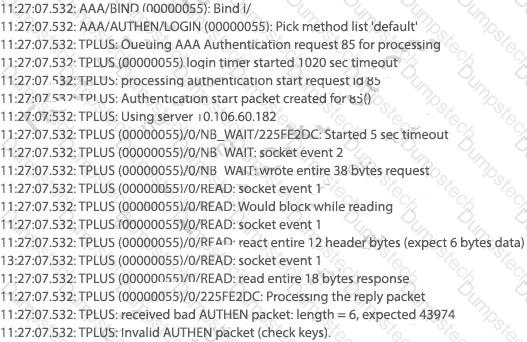

From the last line of the output, we notice that the result was “Invalid AUTHEN packet”. Therefore something went wrong with the username or password.

Graphical user interface, application Description automatically generated

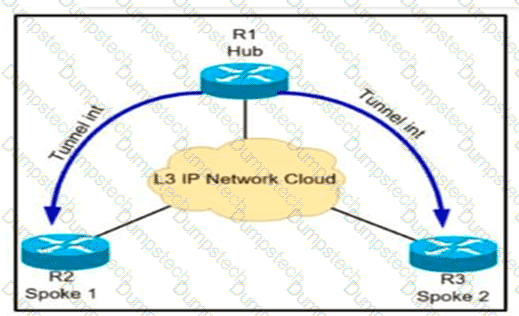

To configure Spoke to Spoke communication we can configure DMVPN Phase II or Phase III. But in Phase II, the first few packets would go through Hub. In order tototally ignore the hub, we have to use DMVPN Phase III:

DMVPN Phase III is same as Phase 2 but removes some restrictions and complexities of Phase 2. Also allows greater variety of DMVPN network designs we use:+ ip nhrp redirect in hub: tells the initiator spoke to look for a better path to the destination spoke than through the Hub. Upon receiving the NHRP redirect message thespokes communicate with each other over the hub and they have their NHRP replies for the NHRP Resolution Requests that they sent out.+ ip nhrp shortcut in spokes: overwrite the CEF table on the spoke. It basically overrides the next-hop value for a remote spoke network from the default initial hubtunnel IP address to the NHRP resolved remote spoke tunnel IP address)

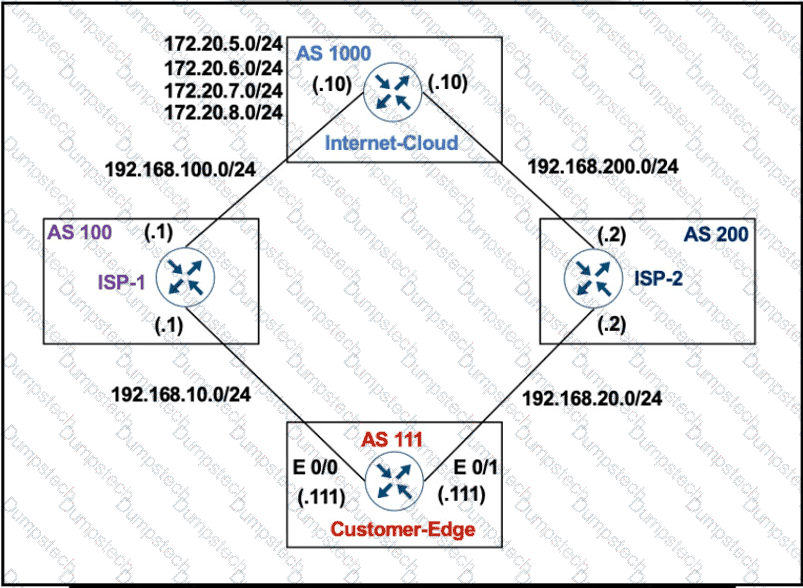

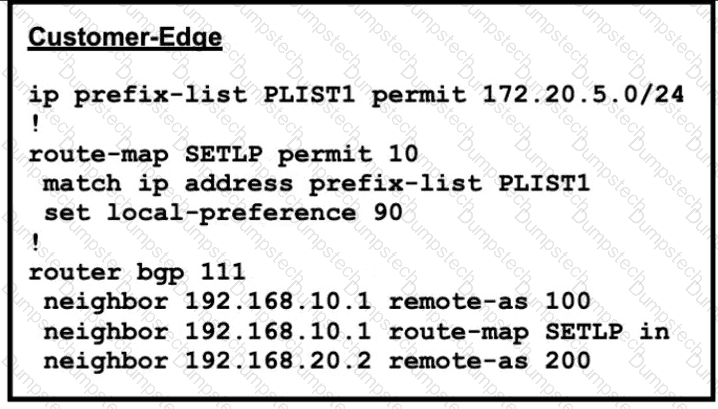

There is an implicit deny all at the end of any route-map so all other traffic that does not match 172.20.5.0/24 would be dropped. Therefore we have to add a permitsequence at the end of the route-map to allow other traffic.

The default value of Local Preference is 100 and higher value is preferred so we have to set the local preference of AS100 lower than that of AS200.

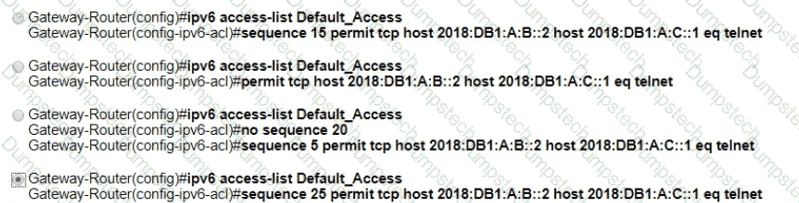

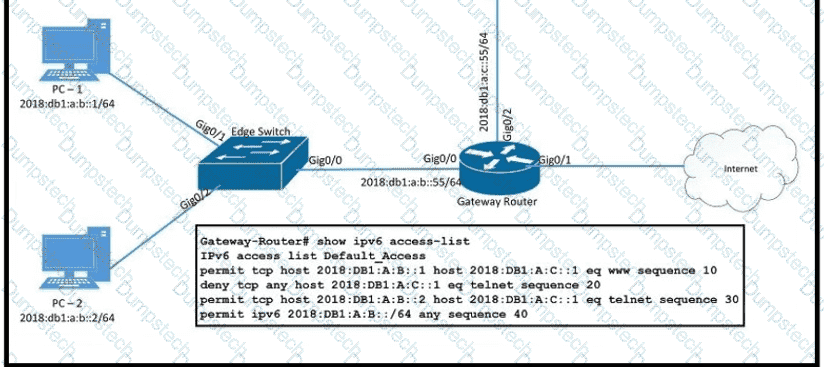

In fact in this question both answer A and answer C are correct but we believe answer A is the

better choice as it only allows PC-2 to telnet to terminal server. All other hosts are refused to

telnet to terminal server via sequence 20.

To turn off terminal monitor, use “terminal no monitor” in the enable mode
