Pass the Cisco CCNP Data Center 300-615 Questions and answers with Dumpstech

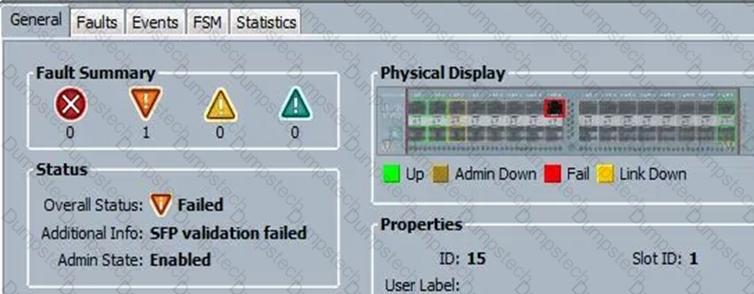

The correct answer is Port 15 is configured as an Ethernet port. Cisco MDS and Nexus SAN troubleshooting is driven by fabric state: the host and target must be in the correct VSAN, must complete FLOGI/PLOGI where applicable, and must be permitted by active zoning, fcdomain, FSPF, NPV/NPIV, or port-security policy. This question focuses on UCS, fabric interconnect, so the selected action fixes the dependency that prevents the initiator, target, or inter-switch link from becoming usable. Cisco documentation emphasizes checking VSAN membership, active zonesets, correct port mode, fabric binding, device-alias consistency, and the relevant FC databases before changing unrelated server settings. The distractors either target a different database, use the wrong port role, or would not cause the observed Fibre Channel state to change. After the fix, the engineer should confirm the interface state, FLOGI database, name-server entries, zoneset activation, and successful initiator-to-target reachability with tools such as fcping or fabric show commands.

Configure the power-restore-policy; Set the delay value to 180 is correct because the failure is tied to the UCS managed state of UCS. In Cisco UCS, policies are not advisory; they are the source from which fabric interconnects program adapters, boot targets, server identity, firmware, and external integrations. A mismatch between the policy and the actual hardware or upstream storage/network state can cause boot, discovery, KVM, firmware, or connectivity failures. The selected action addresses the object that UCS Manager uses to build the final operational configuration. The distractors either solve a different fault domain or bypass the policy model. A disciplined DCIT validation sequence is to check the fault code, the FSM history, the equipment inventory, the service profile association, and the relevant adapter or boot table. If those states are correct after the change, the UCS component should return to operable service without unnecessary reconfiguration.

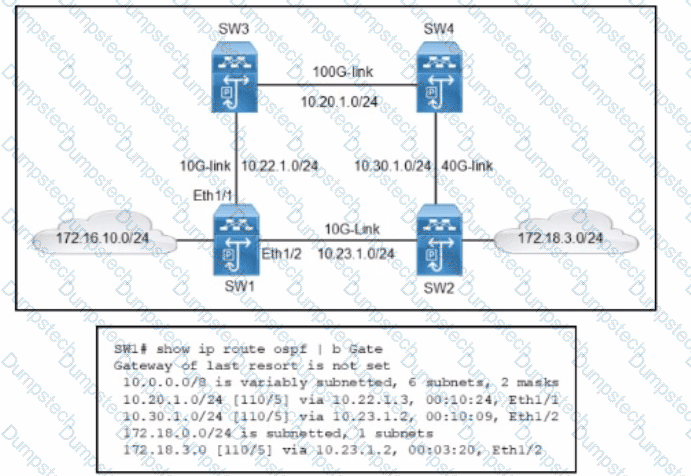

The correct remediation is interface eth1/1 auto-cost reference-bandwidth 10000. In Cisco data center troubleshooting, the first priority is to isolate whether the failure is caused by the underlay, overlay control plane, first-hop gateway behavior, or a consistency parameter. This item is centered on OSPF, Cisco Nexus, Nexus 9000, Cisco Nexus 9000, so the selected action targets the condition that prevents normal forwarding rather than masking the symptom. Cisco Nexus and ACI guidance treats vPC, VXLAN EVPN, OTV, OSPF, BGP, HSRP, and LACP issues as state-dependent technologies: a neighbor, peer, VLAN, VNI, multicast group, timer, MTU, or policy mismatch can leave the protocol partially operational while traffic is still dropped. The rejected alternatives either change unrelated attributes, introduce a new inconsistency, or affect only a secondary behavior. The operational check after applying the fix should be to confirm adjacency or peer state, validate the relevant route/MAC/endpoint table, and test traffic in the affected VLAN or VRF. This aligns with Cisco DCIT network troubleshooting methodology for isolating control-plane state before changing data-plane policy.

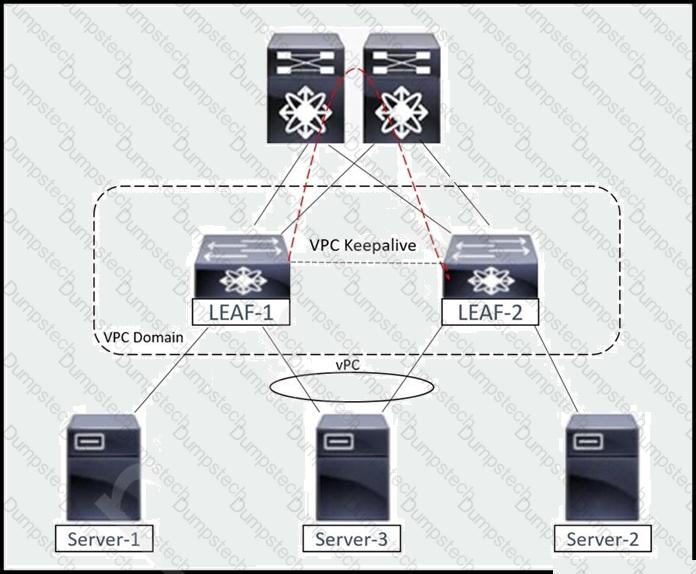

Enable BGP advertise pip feature on both leaf switches is the valid corrective action because the failure described is a protocol or fabric state problem, not a generic connectivity issue. For VXLAN, NVE, BGP, Cisco troubleshooting expects the engineer to compare both endpoints of the relationship: vPC peers must agree on consistency parameters, HSRP peers must exchange hellos in the same VLAN and version context, OSPF/BGP peers must match the attributes required for stable adjacency, and VXLAN EVPN must advertise the correct host or prefix information. The selected option restores that required state. The other options either operate on the wrong layer, change a value that is not used to form the relationship, or would make the peer relationship less deterministic. A clean validation is to inspect the control-plane table first, then verify the forwarding table, and finally test end-to-end traffic. This is the Cisco-preferred approach because it avoids random changes and confirms that the fabric is forwarding based on correct protocol state.

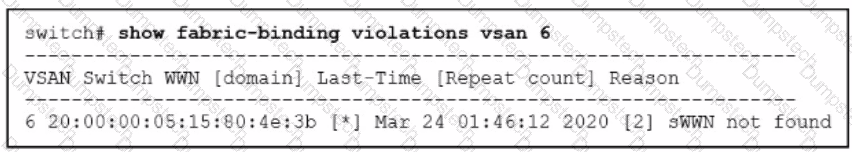

The correct answer is the selected command set. Cisco MDS and Nexus SAN troubleshooting is driven by fabric state: the host and target must be in the correct VSAN, must complete FLOGI/PLOGI where applicable, and must be permitted by active zoning, fcdomain, FSPF, NPV/NPIV, or port-security policy. This question focuses on VSAN, fabric binding, so the selected action fixes the dependency that prevents the initiator, target, or inter-switch link from becoming usable. Cisco documentation emphasizes checking VSAN membership, active zonesets, correct port mode, fabric binding, device-alias consistency, and the relevant FC databases before changing unrelated server settings. The distractors either target a different database, use the wrong port role, or would not cause the observed Fibre Channel state to change. After the fix, the engineer should confirm the interface state, FLOGI database, name-server entries, zoneset activation, and successful initiator-to-target reachability with tools such as fcping or fabric show commands.

Use the force option to identify rejected devices is the required SAN-side correction. In Cisco storage fabrics, symptoms such as isolated ports, missing targets, failed zone merges, vFC down state, or inaccessible LUNs are rarely solved by changing a random endpoint setting. The engineer must validate the FC control-plane dependency associated with port security: VSAN assignment, trunk allowance, FSPF parameters, fcdomain uniqueness, NPIV support, NPV uplink behavior, DCBX/LLDP negotiation, and active zoning. The selected answer is the one that restores that dependency. Other choices may be valid operational commands in a different failure, but they do not address the precise point where fabric membership or access control is broken. Cisco guidance is to verify the active database and the operational database separately because a configured object is not necessarily active in the fabric. Post-remediation checks should include interface state, VSAN status, FLOGI/PLOGI, zoneset membership, and target visibility from the initiator.

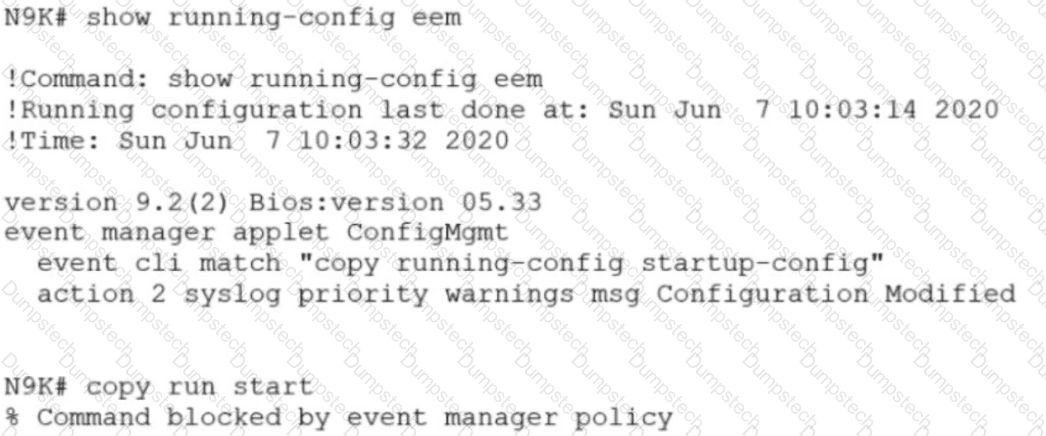

Add event-default as a second action of the EEM script is the required fix because the automation failure is caused by execution context, syntax, or resource state around EEM. On Cisco Nexus switches, automation is not a single feature; EEM policies, CLI actions, Guest Shell Linux commands, REST payloads, and scheduled jobs are evaluated by different subsystems. A script can fail even while the switch itself has connectivity or the command works interactively. The selected answer supplies the missing requirement, such as the correct event/action, DNS or resource setting, API URI, payload format, feature enablement, or reboot needed for a Guest Shell change to take effect. The other choices address adjacent features but do not satisfy the failing subsystem. After applying the fix, the engineer should verify the policy registration, job result, API response code, or Guest Shell runtime state and confirm that the intended command is no longer blocked or silently ignored.

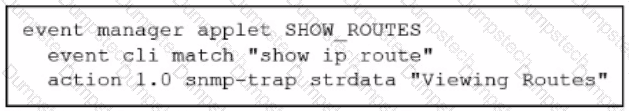

The selected option, Add the event -default action statement to the end of the script, is correct for the automation path described. Cisco NX-OS requires precision in EEM applets, scheduler jobs, Guest Shell operations, and REST/NX-API syntax. The affected element is EEM, SNMP; therefore, the fix must be applied to the component that actually executes the action. For EEM, that means a valid event detector and explicit actions, with event-default when the matched CLI command should continue. For Guest Shell and Bash, DNS, proxy, resource allocation, and reboot behavior are local to the Linux container. For REST calls, the class name, method, authentication, and XML/JSON structure must match the APIC or NX-OS object model. The distractors usually change the switch globally or alter an unrelated command. Cisco DCIT automation troubleshooting confirms the fix by checking the returned error, then rerunning the exact job, script, or API operation in the same context.

The selected answer, Reset the faulty module from the peer IOM, follows Cisco UCS operational logic. UCS Manager is policy-driven, so troubleshooting must determine whether the problem is caused by hardware discovery, service profile association, firmware activation, boot order, storage presentation, or management integration. The scenario points to UCS, UCS Manager, firmware, Auto Install, IOM; that is why the selected action fixes the root condition rather than merely restarting the server. The wrong options either affect a different policy, require unnecessary disruption, or assume that physical connectivity alone is sufficient. Cisco documentation for UCS server boot and firmware management stresses that boot policies must include the correct target details, firmware workflows must complete their FSM stages, and hardware changes often require acknowledgement or re-acknowledgement before UCS Manager uses the new inventory. After remediation, the engineer should confirm that the UCS fault is cleared, the server association or discovery state is complete, and the operating system or management service can use the intended path.

Run the switchport ignore bit-errors command on the interface is the required SAN-side correction. In Cisco storage fabrics, symptoms such as isolated ports, missing targets, failed zone merges, vFC down state, or inaccessible LUNs are rarely solved by changing a random endpoint setting. The engineer must validate the FC control-plane dependency associated with Cisco Nexus: VSAN assignment, trunk allowance, FSPF parameters, fcdomain uniqueness, NPIV support, NPV uplink behavior, DCBX/LLDP negotiation, and active zoning. The selected answer is the one that restores that dependency. Other choices may be valid operational commands in a different failure, but they do not address the precise point where fabric membership or access control is broken. Cisco guidance is to verify the active database and the operational database separately because a configured object is not necessarily active in the fabric. Post-remediation checks should include interface state, VSAN status, FLOGI/PLOGI, zoneset membership, and target visibility from the initiator.
