Detailed Explanation:When a command entered on Huawei’s Versatile Routing Platform (VRP) is incomplete, VRP generates an error message indicating that the command is incomplete at a specific position (designated by ' A ' ). This message helps administrators identify where additional parameters are needed to complete the command syntax. Other error messages indicate issues such as excess parameters or ambiguous commands. (Reference: HCIA-Datacom Lab Guide, VRP Command Syntax)

Detailed Explanation:The address 145.4.2.55/26 is a valid unicast address and falls within the range of usable IP addresses for a /26 subnet. The address 237.6.1.2/24 is from a reserved range, 127.3.1.4/28 is part of the loopback range (127.0.0.0/8), and 192.168.10.112/30 only provides two usable addresses, which would not allow the router to be properly configured .

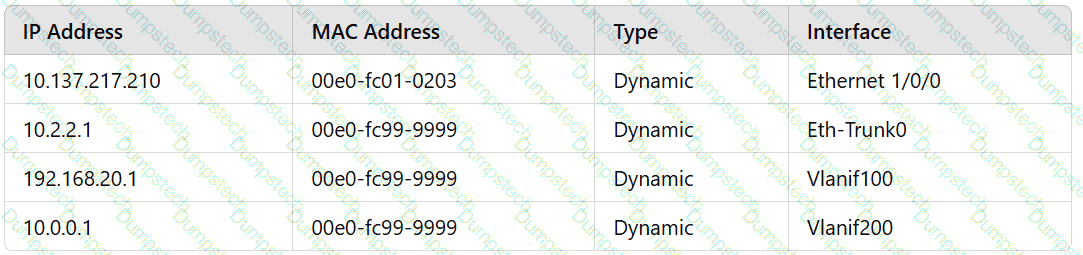

Understanding ARP Entries:

Each ARP entry associates a MAC address with an IP address dynamically or statically.

In the table, the MAC address 00e0-fc99-9999 is linked to multiple IP addresses across different interfaces.

Dynamic MAC Address Assignment:

As the host changes its IP address, the MAC address remains consistent.

Conclusion:

The statement is TRUE because the MAC address 00e0-fc99-9999 appears with three different IP addresses dynamically.

Comprehensive Explanation: The interface configuration shows that VLANs 2, 3, and 100 are tagged, meaning frames belonging to these VLANs are transmitted with VLAN tags. VLANs 4 and 6 are untagged, meaning frames for these VLANs are transmitted without tags. The command port hybrid tagged vlan 2 to 3 100 specifies that data frames for VLANs 2, 3, and 100 are transmitted with tags, while port hybrid untagged vlan 4 6 configures the interface to transmit untagged frames for VLANs 4 and 6.

Detailed Explanation:LSAs (Link-State Advertisements) are the fundamental OSPF messages used to convey network topology information. LSU (Link-State Update), LSR (Link-State Request), and LSACK (Link-State Acknowledgment) are all types of messages related to OSPF ' s operations, but " LSA " alone is not a valid OSPF message type​.

Detailed Explanation:The Type/Length field value of 0x0800 indicates that the upper-layer protocol is IPv4. However, the length of the IPv4 header can range from 20 to 60 bytes, not the length of the entire upper-layer packet. The field refers to the type of the encapsulated protocol, and the length is not constrained to the header alone​​.

B (Correct): GE0/0/1 is untagged for VLAN 10, meaning it does not add VLAN tags to VLAN 10 frames.

C (Correct): GE0/0/1 is also untagged for VLAN 20, so it does not add VLAN tags to VLAN 20 frames.

D (Correct): The output shows four VLANs (10, 20, 30, 40), which were manually created.

A (Incorrect): GE0/0/2 is not explicitly mentioned, so VLAN tagging behavior cannot be confirmed.

Thus, the correct answers are B, C, and D.

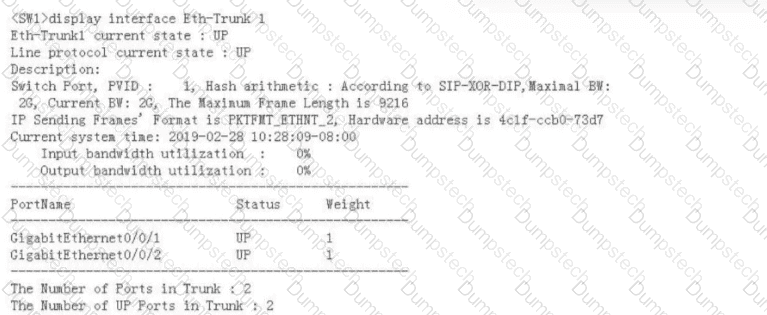

Comprehensive Explanation: To remove the Eth-Trunk interface, you can simply use the undo interface Eth-Trunk 1 command. This command deletes the entire Eth-Trunk interface from the switch configuration. The other commands involve additional steps to unbind physical interfaces from the Eth-Trunk, but these steps are unnecessary if you are deleting the Eth-Trunk interface entirely.
