This statement is true . On a Huawei WAC, the number of APs that can go online is controlled by the available license resources . If a Fit AP fails to come online and the command display ap online-fail-record shows Insufficient license resources , it means the controller does not currently have enough licensed capacity to allow additional APs to register successfully.

In this case, the administrator must expand the license capacity or adjust existing license allocation so that the AP can be admitted. This is a common WLAN deployment issue, especially when new APs are added without first verifying the current AP license limit on the WAC. HCIA-Datacom troubleshooting methodology emphasizes interpreting controller diagnostics and fault records accurately. An AP can fail to go online for many reasons, including CAPWAP reachability problems, version mismatch, authentication issues, or licensing limitations. When the failure reason explicitly indicates insufficient license resources, the troubleshooting direction is clear: the controller’s AP license capacity must be checked and, if necessary, increased. This question tests the ability to map a specific WAC alarm record to the correct operational response.

On a Huawei WAC, the VAP profile is the profile that brings together the service attributes required to instantiate a wireless service on an AP radio. The service VLAN is configured in this VAP profile using the service-vlan command. The VAP profile can also reference an SSID profile and a security profile and can define the data forwarding mode, allowing the wireless service to map associated STA traffic into the correct wired VLAN. The SSID profile primarily defines the WLAN name and related SSID behavior. The security profile defines authentication and encryption policies such as WPA/WPA2/WPA3 parameters. The regulatory domain profile controls radio regulatory settings such as country-specific channel and transmit-power constraints. None of those profiles is the location in which the service VLAN itself is defined. Huawei configuration examples explicitly show the administrator entering the VAP profile view and then applying service-vlan vlan-id or a VLAN pool. Therefore, the correct choice is C, VAP profile.

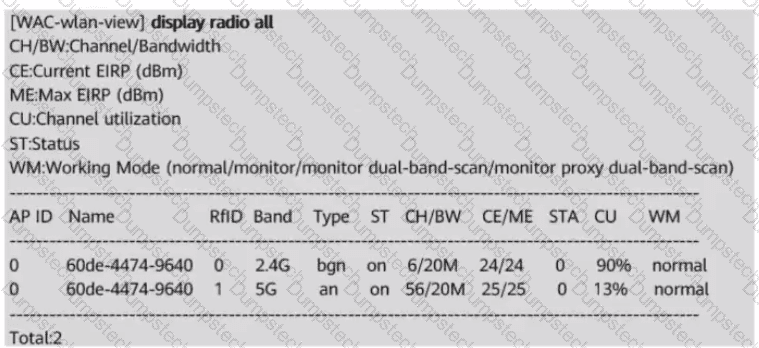

The command output in the exhibit shows that both AP radios are enabled, so a disabled radio is not supported by the evidence. The 5 GHz radio has relatively low channel utilization, while the 2.4 GHz radio reports channel utilization of approximately 90 percent. Such a high utilization value indicates that the air interface is heavily occupied by transmissions or interference. Huawei WLAN troubleshooting guidance identifies a busy air interface and a heavily loaded AP as possible causes of STA association failures because management and authentication frames may be delayed or lost when contention is severe. The displayed radio information alone does not prove that the affected STAs are in a blacklist or absent from a whitelist; those conditions require separate STA or VAP access-control information. Therefore, option A is the only choice directly supported by the command output. The correct troubleshooting interpretation is that excessive channel utilization on the radio can make the air interface busy and prevent some STAs from completing association successfully. The verified answer is A.

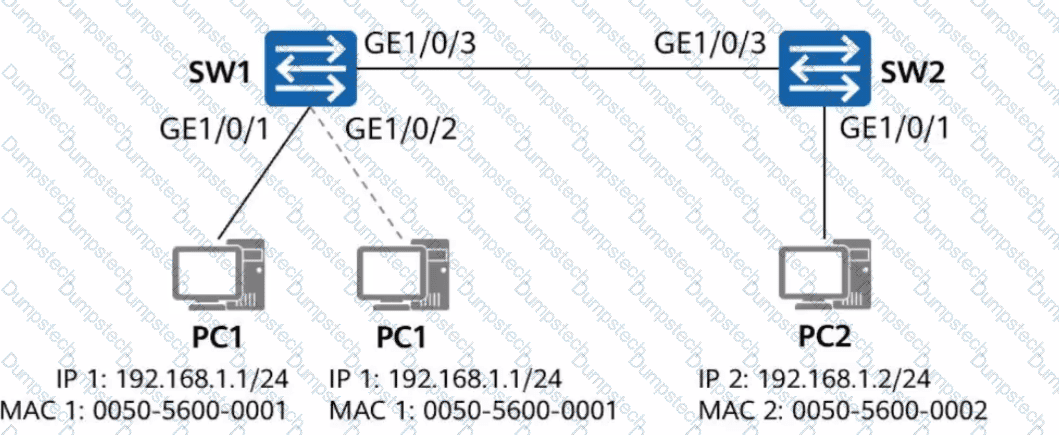

Before PC1 is moved, PC2 successfully communicates with it, so SW1 learns PC1 ' s MAC address on GE1/0/1. The dynamic MAC aging time is 300 seconds, and the cable move is performed immediately. Therefore, when PC2 sends the next frame to PC1, SW1 can still have the old destination MAC entry pointing to GE1/0/1. The question then states that GE1/0/1 is connected to another switch, so the port remains physically usable. SW1 follows the existing MAC table entry and forwards the frame out GE1/0/1 toward that new connection; it does not simply discard the frame. If PC1 subsequently transmits from GE1/0/2, SW1 can relearn the same source MAC on the new interface and update the entry, restoring correct forwarding. The core point is that dynamic MAC entries do not immediately disappear merely because the end station is physically moved when the original interface remains Up. Accordingly, the statement that SW1 discards the frame is FALSE, option B.

RADIUS and HWTACACS are AAA protocols that support accounting functions in addition to authentication and authorization. Accounting records can be used to track login sessions, service usage, command activity, or other information required by the deployment. LDAP and Microsoft Active Directory, by contrast, are directory-based identity technologies. Huawei documentation describes LDAP/AD integration primarily for authentication and authorization by querying directory information and validating user credentials. They are not used as the native AAA accounting protocol between a Huawei AAA client and an AAA server in the same way as RADIUS or HWTACACS. Therefore, when the question asks which listed protocols cannot be used for accounting between the AAA client and AAA server, AD and LDAP are the appropriate selections. RADIUS explicitly carries accounting messages, and HWTACACS also separates and supports authentication, authorization, and accounting functions. The source file leaves the answer blank, but the Datacom AAA model supports a verified answer of B and D.

The normal DHCPv4 address-allocation exchange is commonly summarized as DORA: Discover, Offer, Request, and Acknowledge. A DHCP client that needs configuration begins by sending DHCPDISCOVER to locate available DHCP servers. A server responds with DHCPOFFER, proposing an address and other parameters. The client then sends DHCPREQUEST to indicate the offered address and server it has selected. Finally, the selected DHCP server sends DHCPACK to confirm the lease and deliver the final configuration. Therefore, DHCPDISCOVER and DHCPREQUEST are client-originated messages in the standard allocation process, while DHCPOFFER and DHCPACK are server-originated messages. DHCP also defines other messages for lease renewal, decline, release, and negative acknowledgment, but those are not among the answer choices. For the options provided, A, DHCPACK, and D, DHCP OFFER, are the messages sent by a DHCPv4 server. The verified answer is A and D. This server-versus-client message direction is fundamental when interpreting DHCP packet captures and troubleshooting address-allocation failures on enterprise campus access networks.

The uploaded key includes all four options, but option B is not a valid requirement for normal source NAT and should be removed. Source NAT translates the private source address of outbound traffic into a public address before the packet enters the public network. The public-side router therefore needs reachability to the translated public address for return traffic, not a route to the original private intranet address. By contrast, A can prevent access if NAT is not applied on the proper outbound interface or direction. C can also prevent translation when the configured address pool has no usable address available, depending on the NAT mode and session requirements. D is valid because traffic whose source address does not match the NAT policy or referenced ACL will not be translated; private-source packets then normally cannot traverse the Internet as intended. Routing on the enterprise egress device must of course also be correct, but the specific absence described in B is not inherently a failure when source NAT is working. The verified selections are A, C, and D.

Wi-Fi 7 supports operation in the 2.4 GHz , 5 GHz , and 6 GHz frequency bands, so options A , C , and D are correct. These three bands together provide flexible coverage and capacity options. The 2.4 GHz band offers better propagation and wider coverage, while the 5 GHz and 6 GHz bands provide more channels, higher capacity, and better support for high-speed, low-latency services.

Option B , 9.6 GHz , is incorrect because it is not a Wi-Fi 7 operating band. HCIA-Datacom WLAN content highlights Wi-Fi 7 as a major advancement in wireless performance, bringing improvements in throughput, channel usage, spectrum efficiency, and latency characteristics. The addition and use of the 6 GHz band is especially important because it expands available spectrum resources and helps reduce contention in dense wireless environments. In practical enterprise WLAN design, understanding supported frequency bands is essential for channel planning, interference control, device compatibility assessment, and service optimization. This question checks whether the learner can correctly identify the standard operating bands used by modern Wi-Fi 7 networks.

In the Huawei command-line interface, the question mark ? provides real-time command help based on the current input. When the output shows < cr > , it means that the command can end at that point by pressing Enter . In other words, there is no additional keyword or parameter required in that position. Therefore, option B is correct.

In the example sysname SW1?, the device interprets SW1 as a complete and valid hostname parameter for the sysname command. Since nothing else is required after the hostname, the CLI displays < cr > to indicate command completion is allowed. This behavior is common in Huawei devices and is important for daily operation and troubleshooting because it helps engineers understand whether a command is complete, whether more arguments are needed, or whether optional parameters are available. Options about incorrect keywords or incomplete commands do not apply here, because the entered command syntax is already valid. Understanding < cr > is a basic but important CLI skill in HCIA-Datacom operations.

Huawei ' s Wi-Fi 7 documentation describes several technologies introduced or enhanced relative to Wi-Fi 6 to increase throughput, spectrum efficiency, and reduce latency. 4096-QAM raises modulation density from the 1024-QAM maximum associated with Wi-Fi 6, allowing more bits to be carried per modulation symbol under suitable radio conditions. Multi-RU allows one user to be assigned multiple resource units, improving spectrum scheduling flexibility compared with the Wi-Fi 6 restriction of a user operating within its assigned RU. Multi-link operation allows a station to establish and use links across multiple bands or radios as a coordinated connection. Wi-Fi 7 also enhances MU-MIMO capabilities, increasing the ability to serve multiple users and exploit additional spatial resources. Huawei product documentation commonly lists 4096-QAM, multi-RU, MLO/multi-link, and enhanced MU-MIMO among Wi-Fi 7 improvements built on Wi-Fi 6. Therefore, each technology listed in the question contributes to Wi-Fi 7 performance improvement, and the verified selection is A, B, C, and D.
