A /28 subnet mask corresponds to 255.255.255.240, which means each subnet contains 16 IP addresses . The subnet boundaries in the last octet increase in steps of 16: 0, 16, 32, 48, 64, 80, 96, 112, 128, 144, 160, and so on. The host address 192.168.1.147 falls within the subnet range 192.168.1.144 to 192.168.1.159 .

In that subnet, the network address is 192.168.1.144, the usable host range is 192.168.1.145 through 192.168.1.158, and the broadcast address is 192.168.1.159. Therefore, option C is correct. Option D is the first usable host address, not the broadcast address. Option A is just another usable host address. Option B would be the broadcast address only for a /24 network, not for a /28. HCIA-Datacom requires learners to master subnetting because it is essential for IP planning, gateway deployment, route summarization, and troubleshooting Layer 3 communication issues in campus and enterprise networks.

Huawei network devices use file extensions to distinguish software images, patches, configuration files, and other packages. A patch package uses the .pat extension, so test.pat is the only option that represents a Huawei patch file. A .cc file is normally associated with a VRP system software package rather than a patch. Configuration data is stored in supported configuration formats and is not identified by the .pat extension. An administrator can transfer the patch file to the device by FTP, SFTP, or another supported file-transfer method and then activate or load it according to the platform ' s patch procedure. The purpose of a patch is to correct defects or vulnerabilities without necessarily replacing the complete system software package. Because the question asks specifically for the file that can be uploaded as a patch to remediate a security vulnerability, the filename ending in .pat is the technically correct selection. The source answer B is therefore consistent with Huawei Datacom file-management conventions.

When two OSPF routers reach the Full state, it means that adjacency establishment has been successfully completed and the routers have synchronized the necessary link-state information for that area. For this to happen, the two routers must have different router IDs, so option A is correct. They must also belong to the same OSPF area on the interfaces used to form the adjacency, making option B correct. Once adjacency reaches Full state, the routers have synchronized their link-state databases for that area, so option D is also correct.

Option C is incorrect because the OSPF process ID is only locally significant on a device. Two neighboring routers do not need to use the same process ID to establish adjacency. HCIA-Datacom teaches that OSPF neighbor formation depends on matching parameters such as area ID, network type, hello/dead timers, authentication settings, and subnet consistency, but not on the locally configured process number. This question is important because many learners mistakenly believe the process ID must match between devices, while in fact OSPF uses protocol parameters exchanged in packets rather than local process labels to form neighbor relationships.

Duplicate Address Detection ( DAD ) is an IPv6 mechanism used to verify that a unicast address is not already in use before the address is assigned to an interface. DAD is implemented using Neighbor Solicitation (NS) and Neighbor Advertisement (NA) messages, which are part of the ICMPv6 Neighbor Discovery protocol. Therefore, options A and D are correct.

When a host wants to verify a tentative IPv6 address, it sends an NS message for that address. If another node on the link is already using that address, that node responds with an NA message, indicating the address is duplicated and cannot be assigned. If no NA is received within the required period, the host assumes the address is unique and can use it. Options B and C are incorrect because Router Solicitation (RS) and Router Advertisement (RA) are used for router discovery, prefix advertisement, and stateless address autoconfiguration, not for DAD itself. HCIA-Datacom emphasizes the distinction between Neighbor Discovery functions, including address resolution, next-hop reachability, router discovery, and duplicate address detection in IPv6 networks.

An Ethernet switch learns MAC address entries dynamically by examining the source MAC address of incoming frames. When SW1 first receives frames from PC1 on GE1/0/1, it creates a MAC address table entry mapping PC1’s MAC address to that port. If PC1 later sends frames that arrive on GE1/0/2, SW1 updates the learned entry to reflect the new incoming interface. Therefore, option B is correct: SW1 saves the mapping between PC1’s MAC address and GE1/0/2 and removes or overwrites the old mapping associated with GE1/0/1.

Option A is incorrect because a single dynamic MAC address is not normally maintained on two different ports within the same VLAN at the same time; that would cause forwarding ambiguity. Option C is incorrect because a normal move of one MAC address does not require clearing the entire MAC table. Option D is also incorrect because switches update MAC learning dynamically upon receiving new source traffic and do not have to wait for the previous entry to age out. HCIA-Datacom uses this principle to explain MAC address learning, migration, and troubleshooting of loops or host movement in switched Ethernet networks.

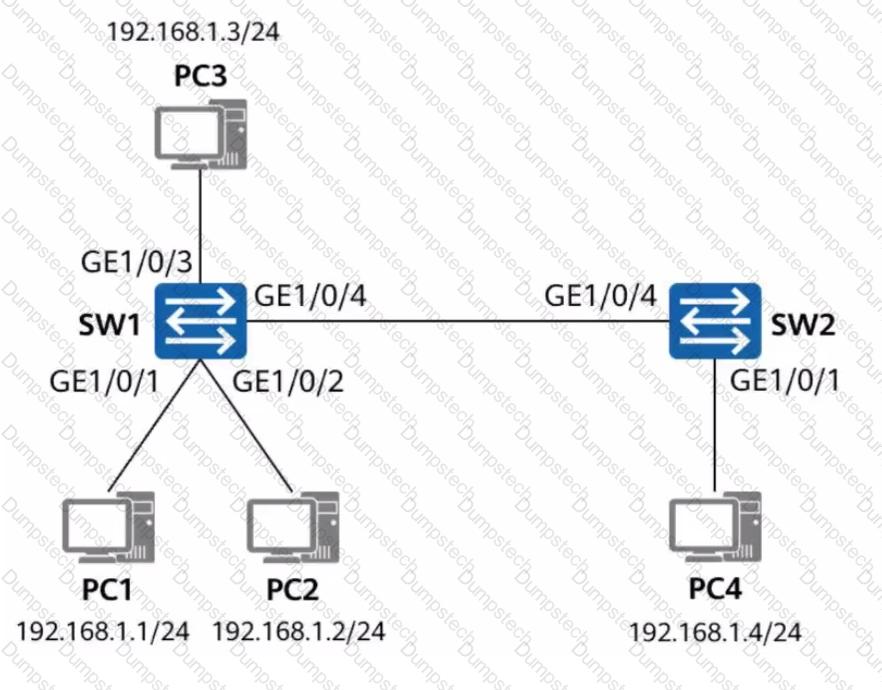

PC1 and PC3 are members of VLAN 2, while PC2 and PC4 are members of VLAN 3. SW1 receives the frame from PC1 on access interface GE1/0/1 and associates it with VLAN 2. Because all switch MAC address tables are initially empty, PC3 ' s destination MAC address is unknown to SW1. The switch therefore floods this unknown unicast frame only through other interfaces that can carry VLAN 2. GE1/0/3 connects to PC3 in VLAN 2, so it is a valid flood port. GE1/0/4 is a trunk that permits VLAN 2 and VLAN 3, so it is also eligible to carry the VLAN 2 frame. SW1 does not send the frame back through GE1/0/1, the ingress interface, and it does not send it through GE1/0/2 because that access port belongs to VLAN 3. Therefore, the interfaces through which SW1 does not send the frame are GE1/0/2 and GE1/0/1, corresponding to A and D.

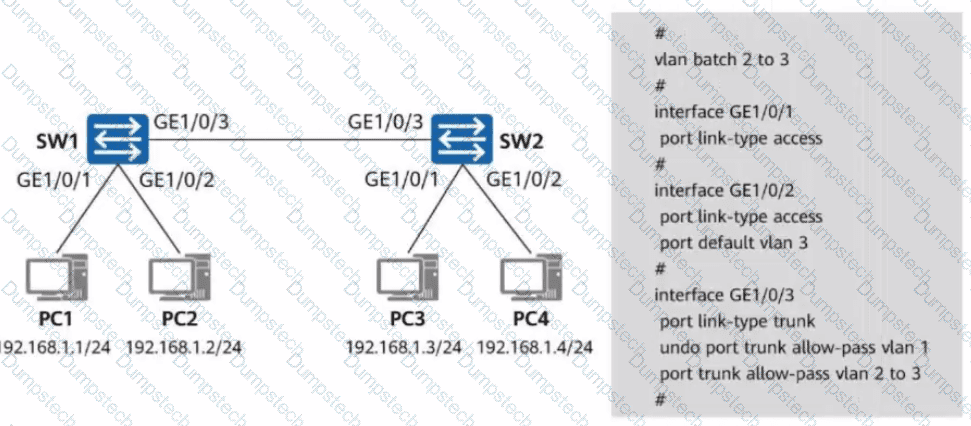

The exhibit shows GE1/0/2 as an access port in VLAN 3 on both switches, so PC2 and PC4 belong to the same Layer 2 broadcast domain. The inter-switch GE1/0/3 link is a trunk that permits VLANs 2 and 3, allowing VLAN 3 frames to pass between SW1 and SW2. Therefore, PC2 and PC4 can communicate at Layer 2, making statement B true. GE1/0/1 remains an access interface in the default VLAN 1 because no other default VLAN is configured. VLAN 1 is not permitted across the shown trunk, so PC1 cannot communicate with PC3 across the switches. PC1 and PC2 are also in different VLANs locally, and PC2 and PC3 are in different VLANs. Devices in different VLANs cannot exchange Layer 2 traffic directly; a Layer 3 gateway is required for inter-VLAN communication. Accordingly, statements A, C, and D are the false statements, which makes A, C, and D the correct selections.

The authentication-mode radius local configuration defines an authentication sequence in which RADIUS is attempted first and local authentication is used as a fallback under the conditions defined by Huawei AAA processing. A critical distinction exists between a RADIUS service being unavailable and a RADIUS server explicitly rejecting the credentials. If the RADIUS server is unreachable, times out, or otherwise cannot perform the authentication service, local authentication may be used as the backup method. However, when the device successfully contacts the RADIUS server and receives an explicit authentication failure or Access-Reject response, that is a definitive authentication result rather than a server-unavailable condition. The device does not simply bypass the rejection and retry the same user against the local database, because doing so would undermine centralized authentication policy. The question explicitly states that R1 is properly connected to the RADIUS server and that the server sends an authentication failure message. Therefore, the claimed fallback to local authentication does not occur in this situation. The statement is FALSE and option B is correct.

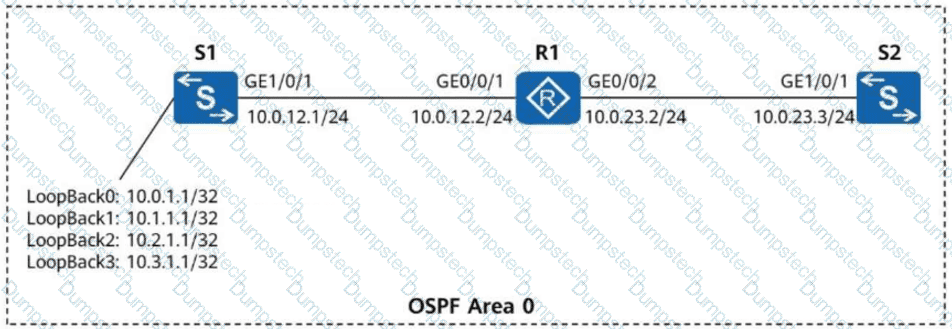

According to the topology and the original question scenario, the correct answer is 10.2.1.1, so option B is selected. In HCIA-Datacom troubleshooting questions of this type, the goal is usually to identify the correct management address, next-hop interface address, or testing destination based on the addressing design shown in the figure.

The answer depends on the role of the device and the direction of the connectivity verification. In such topologies, each interface belongs to a specific network segment, and the selected address must match the intended test target on that segment. If the test is being performed toward the neighboring device or a specific reachable interface, using the correct IP on the proper subnet is essential. An incorrect address may still look familiar from the topology but would not represent the right test endpoint. HCIA-Datacom places strong emphasis on reading topology labels carefully, matching interface addresses to subnet assignments, and choosing the correct destination when using tools such as ping, tracert, or service-specific connectivity tests. This question mainly checks address recognition accuracy in a troubleshooting context.

An IPv6 solicited-node multicast address is automatically derived from the lower 24 bits of a unicast or anycast IPv6 address. The fixed solicited-node prefix is FF02::1:FF00:0/104. The interface address in the question is 2001:db8:12::1. Its final 24 bits are 000001 in hexadecimal representation. Combining those 24 bits with the solicited-node multicast prefix produces FF02::1:FF00:1. This multicast address is used by IPv6 Neighbor Discovery for functions such as address resolution and Duplicate Address Detection, reducing the need to disturb every host on the local link in the way an IPv4 ARP broadcast does. FF02::1 is the all-nodes link-local multicast address and FF02::2 is the all-routers link-local multicast address, so neither represents the solicited-node group for this interface. Option A contains unrelated lower-order bits and does not correspond to the source address. Therefore the derived solicited-node multicast address is FF02::1:FF00:1, making option C correct.
