When dual WAN Edge routers are deployed at a branch, first-hop redundancy and SD-WAN overlay path preference must be aligned. The correct design consideration is that HSRP priorities on the service side should match the OMP routing policy that determines which WAN Edge is preferred. If the LAN gateway points hosts to one WAN Edge while OMP policy prefers the other edge for return or remote-site traffic, traffic can become asymmetric or hairpinned through the wrong device. Proper alignment gives predictable active/standby or active/active behavior and avoids blackholing during failover. Option A describes traditional BGP path manipulation with AS-path prepending and MED; those are not the primary SD-WAN branch dual-edge design controls. Option C overstates symmetry as a universal requirement for DPI; Cisco SD-WAN can handle many traffic patterns, but gateway and OMP alignment remain the core branch design issue. Option D is wrong because SD-WAN already uses BFD across data-plane tunnels, not as a special direct adjacency between the two local WAN Edges for this purpose. Reference topics: Cisco SD-WAN branch redundancy, HSRP, OMP policy, WAN Edge preference, service-side high availability.

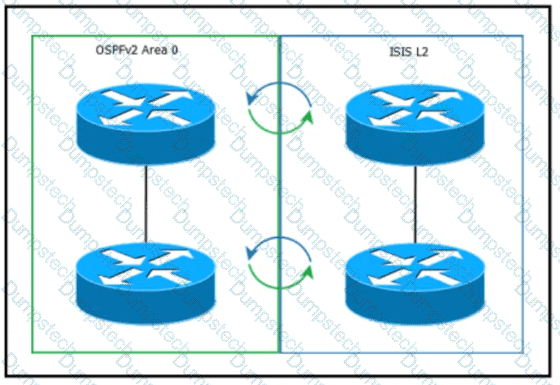

Route tagging with a route map is the correct redistribution loop-prevention method. In a design with mutual redistribution between OSPF and IS-IS, a route learned from one domain can be redistributed into the other domain and then fed back into the original domain at another redistribution point. This creates route feedback, suboptimal routing, or loops. Cisco routing design commonly prevents this by tagging routes at the point of redistribution and then filtering or denying routes with that tag when they are seen again at another redistribution boundary. A route map can set the tag during redistribution and match the tag on the reverse redistribution direction. Changing administrative distance may influence local route selection, but it does not reliably prevent feedback throughout the network. Stub areas reduce external LSA scope in OSPF, but they do not solve a multipoint redistribution loop between OSPF and IS-IS. Prefix filtering can work, but tagging scales better and preserves route identity across redistribution points. Reference topics: route redistribution, route tagging, route maps, OSPF, IS-IS, loop prevention.

Cisco Identity Services Engine is the SD-Access component that integrates with Cisco DNA Center to provide identity-based policy, Security Group Tags, and Security Group ACL policy enforcement. Cisco SD-Access uses Cisco TrustSec technology concepts for group-based policy, but ISE is the actual policy and identity services platform that integrates with Cisco DNA Center. DNA Center automates fabric deployment and policy orchestration, while ISE provides endpoint identity, group assignment, scalable group information, and policy authorization. SGACLs define permitted or denied communication between security groups, and SGTs classify users or endpoints into those groups. APIC-EM is not the SD-Access policy platform. Cisco Network Data Platform supports analytics and assurance functions, not identity policy enforcement. Cisco TrustSec is the underlying policy technology, but the question asks for the component that integrates with Cisco DNA Center. Therefore, the verified answer is Cisco Identity Services Engine. In design terms, ISE should be planned as a critical policy-plane dependency with redundancy, pxGrid integration, RADIUS services, and consistent scalable group policy design.

The correct BGP design is to attach the well-known No-Export community to the prefixes that should not be advertised beyond the service provider boundary. Cisco BGP communities are policy attributes that allow routes to carry instructions or classifications across BGP peers. The No-Export community tells a receiving BGP speaker not to advertise the route outside its confederation or autonomous system. That behavior is exactly what is needed when branch prefixes may be exchanged with the provider but must not be propagated to the public Internet. The No-Advertise community is stronger: it prevents the route from being advertised to any BGP peer, which may block reachability even where the provider still needs to know the route. NOPEER is used for route-server or peering policy control and is not the clean answer for excluding branch prefixes from Internet propagation. Setting a generic “Internet community” is not a standard solution by itself. The architect should also ensure that outbound prefix filters and provider-side community support are documented in the service agreement. Reference topics: BGP communities, No-Export, No-Advertise, provider edge filtering, Internet route policy.

Route summarization and EIGRP stub routing are the two correct design techniques for a stable and scalable EIGRP deployment. Summarization reduces the number of prefixes advertised upstream, conserves bandwidth and memory, hides route flaps behind the summary boundary, and reduces the size of the EIGRP topology table. Stub routing prevents branch or access devices from being used as transit routers and limits the scope of EIGRP queries. This is critical because uncontrolled EIGRP query propagation can increase convergence time and processing load, especially in larger hierarchical networks. Prefix lists and distribute lists can filter routes, but filtering alone does not provide the same query-boundary and topology-hiding benefits as summarization and stubs. Static redistribution increases complexity and can create loop or policy risks if not controlled with tags and metrics. The question specifically asks to conserve bandwidth, memory, and CPU, prevent suboptimal routing, and avoid unnecessary queries; summarization and stub routing are the direct Cisco design answers. The architect should summarize at hierarchy boundaries and configure access or branch routers as EIGRP stubs where they should not provide transit. Reference topics: EIGRP summarization, EIGRP stub routing, query scope, hierarchical routing.

Route reflectors in different clusters should peer with one another as nonclients. BGP route reflection is used to reduce the full-mesh requirement inside an AS. Within a cluster, route-reflector clients peer with their route reflector and do not need to peer with every other client. However, route reflectors still need a way to exchange routes learned from their respective clusters. Cisco BGP route-reflection rules allow a route learned from a client to be reflected to other clients and to nonclient peers. A route learned from a nonclient peer is reflected only to clients. Therefore, route reflectors in different clusters should maintain iBGP peerings as nonclients so that routes can propagate between clusters and then be reflected down to each cluster’s clients. Making route reflectors clients of each other can create confusing policy and cluster behavior. Having no peering would isolate the clusters. Peering only through another nonclient router adds unnecessary indirection and does not improve scale. The correct scalable design is route-reflector-to-route-reflector nonclient peering. Reference topics: BGP route reflectors, clusters, client and nonclient peers, iBGP scaling, route reflection rules.

The primary HSRP device should use the preempt delay feature. When a failed primary distribution switch returns, HSRP preemption allows it to reclaim the active gateway role because it has the higher priority. However, routing protocols, trunks, line cards, FIB programming, or upstream convergence may not be fully ready at the instant HSRP becomes active again. If the device preempts too quickly, hosts forward traffic to a gateway that is not yet ready to forward all flows, causing temporary packet loss. Cisco HSRP preempt delay prevents immediate takeover by delaying preemption after reload or interface recovery, giving the switch time to rebuild control-plane and forwarding-plane state. Increasing hello timers slows failure detection and does not solve the premature takeover problem. Applying preempt delay to the backup device is not the issue because the returning primary is the device that reclaims active state. MAC refresh timers are not the primary mechanism for this condition. Therefore, the design should configure preempt delay on the primary HSRP device. Reference topics: HSRP preemption, preempt delay, gateway recovery, campus high availability, convergence coordination.

Option B is retained because the subnetting task depends on the exhibit options and the chosen plan must divide 10.1.8.0/21 into nonoverlapping partner VPN subnets without allocating more address space than required. The design principle is variable-length subnet masking: allocate the smallest subnet that satisfies each partner requirement, then place the subnets on valid prefix boundaries inside the reserved aggregate. Cisco addressing design emphasizes conserving address space, avoiding overlap, and preserving summarization where possible. A /21 provides 2048 total addresses, so the designer can carve several smaller partner ranges while keeping the entire allocation summarizable as 10.1.8.0/21 toward the data-center core. Incorrect options would either waste addresses, overlap existing ranges, place subnets on invalid boundaries, or allocate blocks larger than necessary. Option B is the mapping that satisfies the exhibit constraints while keeping the design clean for routing, firewall policy, and VPN onboarding. Reference topics: IPv4 VLSM, subnet boundary alignment, partner VPN addressing, summarization, nonoverlapping address design.

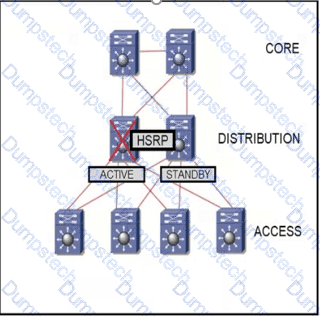

The most efficient campus design aligns the active first-hop gateway with the Layer 2 forwarding path. In a traditional access-distribution topology using STP and HSRP, traffic should not cross the distribution-to-distribution link simply because the HSRP active gateway is on the opposite distribution switch from the STP forwarding path. Cisco campus design guidance stresses aligning the STP root bridge with the active FHRP gateway so hosts forward northbound traffic directly to the distribution switch that owns the optimal Layer 2 path. Reconfiguring distribution switch A to become the HSRP active device fixes the asymmetric and inefficient traffic flow in the exhibit. Adding a link between access switches would extend the Layer 2 domain and increase loop-prevention complexity, not improve the northbound default-gateway path. Changing the distribution interconnect to a routed link may be valid in a routed-access redesign, but it is not the targeted correction for this Layer 2/FHRP misalignment. An EtherChannel between distribution switches only increases interswitch capacity; it does not remove the unnecessary hairpin path caused by the wrong active gateway.

A logical topology that virtually connects devices over an arbitrary physical network is an overlay. In Cisco SD-Access, the underlay provides basic IP reachability between fabric nodes, while the overlay creates the logical network used by endpoints, virtual networks, and policy segmentation. The overlay is not constrained to the exact physical cabling topology; instead, it uses encapsulation and control-plane mapping to carry user traffic across the routed fabric. Cisco SD-Access uses LISP in the control plane for endpoint-to-location mapping and VXLAN in the data plane for encapsulation. This allows the fabric to present consistent logical connectivity even when the physical network is built from routed links and different infrastructure layers. The data plane is the forwarding mechanism, the control plane resolves location information, and the underlay is the physical and routed transport. The logical topology built on top of those components is the overlay. Reference topics: Cisco SD-Access overlay, underlay, VXLAN, LISP, fabric logical topology.
