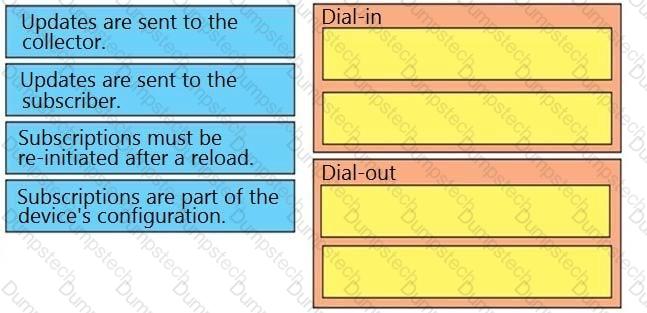

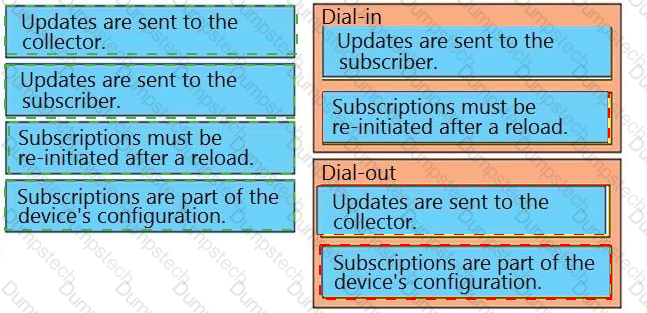

The telemetry-mode mapping distinguishes configured subscriptions from dynamic collector-initiated subscriptions. In dial-out telemetry, the network device initiates the connection to the collector according to a configured subscription. This model is useful when devices must proactively stream data to a known receiver, especially where firewall policy allows outbound sessions from the network device. In dial-in telemetry, the collector initiates the session to the device and subscribes to the desired data stream. This approach is useful for ad hoc collection, testing, or centralized collectors that can reach the devices directly. Cisco model-driven telemetry also distinguishes periodic and on-change behavior. Periodic subscriptions send data at configured intervals, while on-change subscriptions publish updates when subscribed state changes. These design choices affect firewall rules, collector reachability, device configuration, scale, and data volume. The architect should match telemetry mode to operational requirements: dial-out for stable production streams from many devices, dial-in for collector-driven access, periodic for baselines, and on-change for efficient state-change monitoring. Reference topics: model-driven telemetry, dial-in, dial-out, subscriptions, periodic and on-change streaming.

The border node provides connectivity between the SD-Access fabric and networks external to the fabric. In Cisco SD-Access, fabric edge nodes connect endpoints, intermediate nodes provide underlay transport, and control-plane nodes maintain endpoint-to-location mappings. Border nodes sit at the boundary of the fabric and connect the overlay to external Layer 3 networks such as WAN, data center, Internet edge, shared services, or other fabrics. They de-encapsulate VXLAN traffic leaving the fabric and advertise or import reachability using VRFs and routing protocols. A border can be internal, external, or anywhere border depending on whether it connects to shared services, outside networks, or both. Intermediate nodes do not provide external fabric exit; they only transport traffic within the underlay. Edge nodes connect endpoints but are not normally the external gateway for the whole fabric. Control-plane nodes provide mapping services, not external connectivity. Reference topics: SD-Access border node, fabric exit, VRF mapping, external connectivity, overlay-to-underlay boundary.

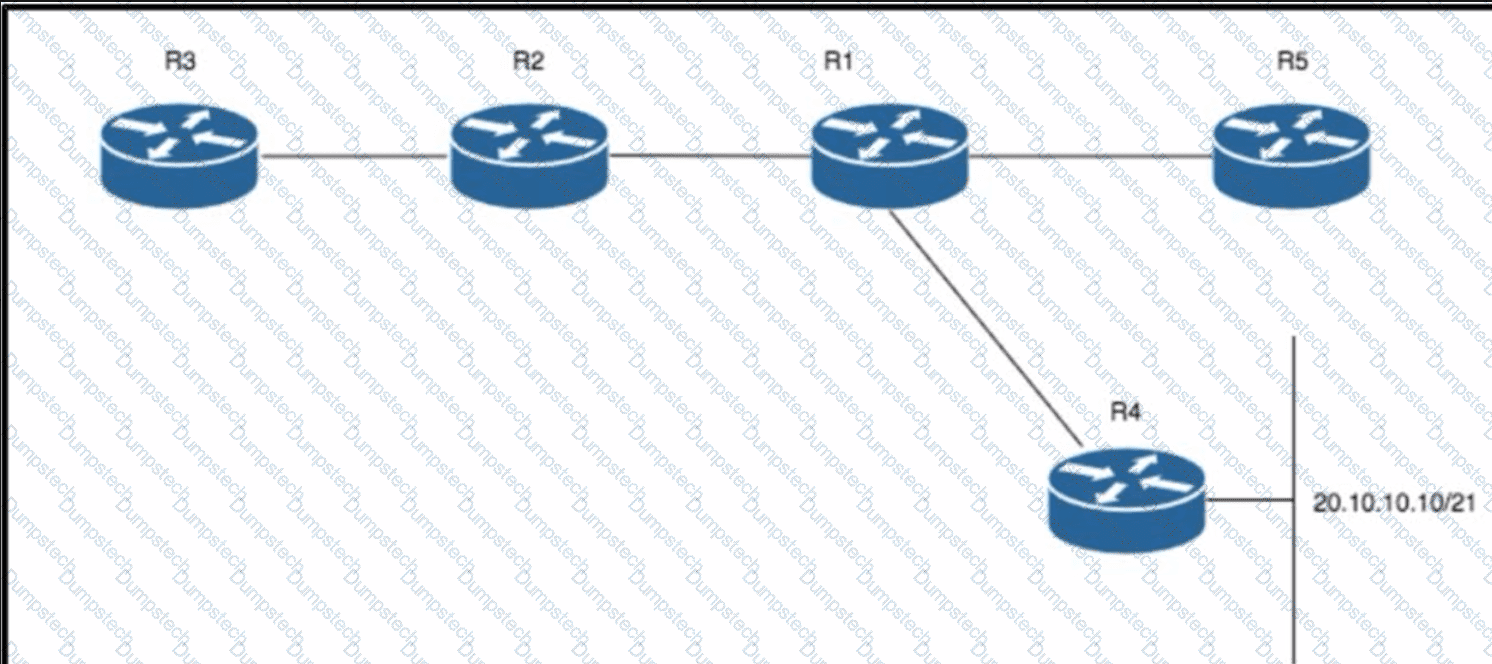

The correct action is to configure EIGRP stub behavior on R4. The DUAL-3-SIA message indicates a Stuck-in-Active condition, which occurs when EIGRP sends a query and does not receive a reply within the expected time. Cisco explains that EIGRP stub routing is used to improve stability and reduce resource usage by preventing unnecessary queries from being sent to remote or edge routers. In the described topology, R4 is connected over a limited 10 Mbps inter-router link and should not be treated as a transit router for the rest of the routing domain. Making R4 an EIGRP stub limits the query scope and reduces the chance of active routes waiting on a slow or constrained neighbor. Poison reverse and split-horizon changes address loop prevention and hub-and-spoke update behavior, but they do not directly solve the SIA instability. A summary on R2 may help scaling but does not identify the edge-router query boundary as precisely as EIGRP stub. Reference topics: EIGRP DUAL, Stuck-in-Active, EIGRP stub routing, query scoping, WAN edge stability.

gRPC provides secure communication between network devices and control systems by supporting TLS. In Cisco programmability and model-driven telemetry designs, gRPC is commonly used as a high-performance remote procedure call framework that carries structured data encoded with Protocol Buffers. Security is provided through TLS so that the client and server can authenticate and protect the session in transit. The question asks for security functionality, so TLS support is the correct selection. The other options describe incorrect or misleading cryptographic behavior. gRPC does not implement generic RSA tunnel encryption as described in option A, and it does not provide mandatory encryption of data at rest. RC6 with CRC is not the security model used for Cisco gRPC telemetry or programmability. In a secure management design, gRPC should be deployed with certificates, TLS verification, controlled access lists, and appropriate AAA integration so only authorized collectors or controllers can communicate with infrastructure devices. Reference topics: gRPC, TLS, model-driven telemetry, Protocol Buffers, secure automation transport.

Cisco IS-IS supports Level 1, Level 2, and Level 1/Level 2 operation, and the design should restrict each link to the level it actually needs. Cisco documentation for the isis circuit-type command states that it “configures the type of adjacency that is required for neighbors on the specified interface.” In this case, the router is configured as L1/L2 and has both L1 and L2 neighbors, which causes unnecessary LSP flooding, SPF processing, and database maintenance on links that may not need both levels. Making the entire router only L1 or only L2 would be too blunt, because the router may legitimately need to participate in both domains on different interfaces. Making the router a DIS also does not solve the underlying issue; it only controls designated intermediate system behavior on broadcast networks. The best optimization is to configure each interface with the correct circuit type, such as level-1 for intra-area links and level-2-only for backbone links. This reduces control-plane load while preserving the intended two-level hierarchy.

Cisco SD-Access uses virtual networks as macro-segmentation boundaries, and those VNs are represented as VRF instances in the fabric. By design, separate VNs do not communicate directly inside the overlay unless the design introduces controlled inter-VN routing. Cisco SD-Access designs commonly use an external fusion router, firewall, or shared-services device to map fabric VNs to external VRFs and selectively exchange routes between them. That is the correct design because it preserves segmentation while allowing policy-controlled access to shared resources or selected networks. GRE tunnels between fabric edges are not the normal SD-Access inter-VN communication method and would bypass the intended fabric policy model. Security Group Tags provide microsegmentation within or across policy domains, but SGTs do not by themselves leak routes between separate virtual networks. Route leaking on fabric border nodes is not the recommended standalone answer here because inter-VN communication is normally provided through a fusion device or firewall outside the fabric. Therefore, the correct solution is external fusion routing with controlled VRF route exchange.

An out-of-band management network best satisfies the requirement to grant and revoke administrative access, restrict management protocols, and limit exposure of management interfaces. Out-of-band management separates administrative traffic from the production data plane by using dedicated management interfaces, management switches, terminal infrastructure, or separate routing. This isolation improves security because a compromise or congestion event in the production network does not automatically provide access to device management planes. It also allows stronger access controls, protocol restrictions, logging, and administrative segmentation for SSH, NTP, FTP, and SNMP. In-band management uses the production network and is more exposed to outages or data-plane attacks. An enterprise internal private network is too vague and does not guarantee management-plane isolation. mGRE is a tunneling technique, not a complete management access architecture. A professional design should also include AAA, role-based authorization, ACLs, management VRFs where appropriate, logging, and monitoring. Reference topics: out-of-band management, management-plane security, AAA, access control, protocol restriction, network operations design.

For a standards-driven YANG model in a multivendor environment, the engineer should choose IETF models. IETF YANG models are produced through the Internet Engineering Task Force standards process and define vendor-neutral data structures for common network functions. This makes them the best answer when the requirement emphasizes standards-based operation across multiple vendors. OpenConfig models are also vendor-neutral and widely used for operational consistency, but OpenConfig is an operator-driven model set rather than an IETF standards body output. Cisco native models expose platform-specific Cisco IOS XE, NX-OS, or IOS XR features and often provide the most complete coverage for Cisco-specific capabilities, but they are not intended as the primary multivendor standard model. IEEE NETCONF is not the correct model category; NETCONF is a protocol, and IEEE is not the YANG model set normally selected for general device configuration in this context. In Cisco automation design, the model choice should match the use case: IETF for standards-driven multivendor workflows, OpenConfig for operator-neutral abstractions, and native models for vendor-specific feature completeness.

IPv6 overlay tunnels should be treated as a transition mechanism, not as the final desired enterprise architecture. Cisco IPv6 migration guidance describes tunneling as a way to connect IPv6 islands across an IPv4 infrastructure or to carry one protocol over another while the network is being migrated. This is useful when parts of the infrastructure cannot yet run IPv6 natively, but it also adds encapsulation overhead, additional MTU considerations, troubleshooting complexity, and operational dependency on the underlay transport. A permanent IPv6 architecture should eventually support IPv6 natively, or support both IPv4 and IPv6 through dual stack where required. The statement that overlay tunnels are a final IPv6 architecture is therefore incorrect. Overlay tunnels are not limited only to border devices in every design, and they do not require only the IPv6 stack; they commonly encapsulate IPv6 traffic over IPv4 infrastructure. The option stating that IPv4 packets are encapsulated in IPv6 packets also reverses the common IPv6-over-IPv4 migration use case. Therefore, overlay tunneling should be designed as a temporary transition technique.

Cisco SD-WAN detects subsecond transport failure by running BFD across the IPsec tunnels between WAN Edge routers. The WAN Edge devices form encrypted data-plane tunnels over each transport, and BFD probes those tunnels to measure liveliness, loss, latency, jitter, and path availability. When BFD detects a failed or degraded tunnel, the SD-WAN fabric can withdraw or avoid that path quickly, enabling application-aware routing and fast failover. Hellos between WAN Edge routers and vSmart controllers are control-plane mechanisms and do not directly detect data-plane transport failure between edge routers. BGP is not the SD-WAN overlay control protocol for this function; OMP is used with vSmart for overlay route and policy exchange. Link-state messages between vSmart controllers do not measure transport-path liveliness. Therefore, BFD on IPsec tunnels is the correct failure-detection mechanism. The design should ensure that BFD timers, tunnel scale, controller policy, and SLA classes are chosen to balance fast failover with platform resources and transport stability. Reference topics: Cisco SD-WAN BFD, IPsec tunnels, transport failure detection, application-aware routing, data-plane liveliness.
