The RPL script in the image is used to filter BGP routes based on the AS path. The script includes a condition that checks if the AS path contains ‘7077’ using a regular expression (ios-regex ‘777$’). If this condition is met, the route is passed; otherwise, it would be denied by default. Therefore, this script allows routes from AS 7077 and denies others.

References := For specific references, please consult the Implementing and Operating Cisco Service Provider Network Core Technologies source book or study guide, as I am unable to provide direct links or access content from external websites.

This configuration sets up policing rules for different protocols including CDP (Cisco Discovery Protocol) and ARP (Address Resolution Protocol), with specific rate limits for invalid packets as well as CDP and ARP protocols. References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide

The core component of MDT that describes the data streamed to a collector is the encoder. In the context of Microsoft Deployment Toolkit (MDT), the encoder is not explicitly mentioned; however, the concept aligns with the process of creating and capturing images of operating systems, which involves encoding or compiling the necessary data into a deployable image.

The Adjacency-SID sub-TLV extension is advertised within TLV-22 (Extended IS Reachability) to label a specific link in a segment routing domain. This allows for the identification and utilization of specific paths or links within the network, facilitating more efficient routing and traffic management. References := Implementing and Operating Cisco Service Provider Network Core Technologies

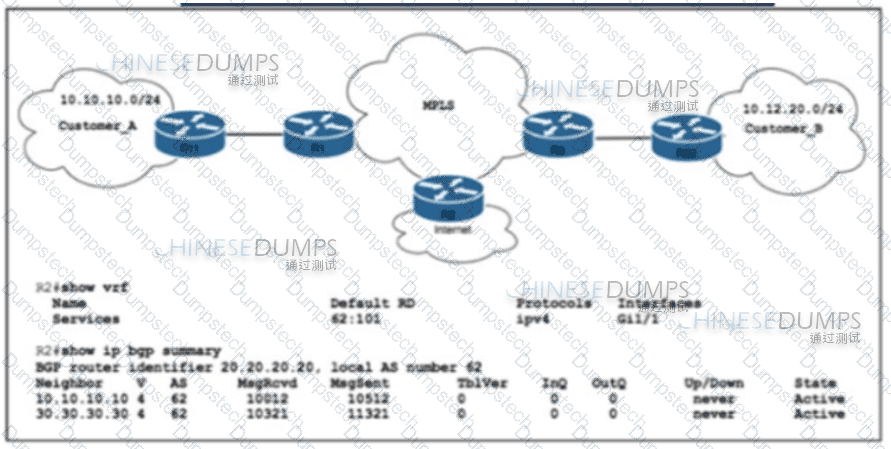

To complete the launch of the new internet service, ISP_A needs to ensure that routes are shared between different VRFs for Customer_A and Customer_B. Importing route-target 62:101 into the customer VRFs on R1 and R3 allows for the exchange of routes between these VRFs, facilitating the necessary connectivity for the new service. References := Cisco SPCOR

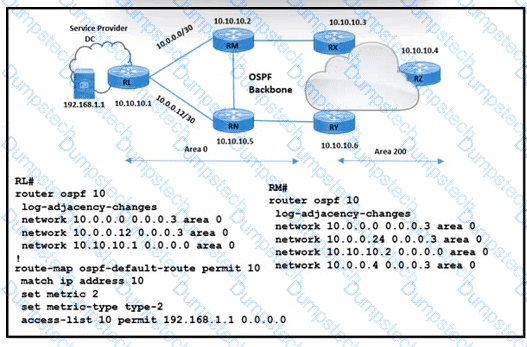

To achieve the origination of a default route based on the condition of the application server being up, a route map policy needs to be applied. This policy should match the condition of the server’s status and then use the default-information originate command to originate the default route with the specified metric type and value on router RL.

The full separation model for Internet access and MPLS L3VPN services is chosen to enable EGP (Exterior Gateway Protocol) and IGP (Interior Gateway Protocol) to operate independently. In this model, the internet access and MPLS L3VPN services are fully separated, ensuring that the two networks do not interfere with each other’s operation. This separation enhances network security, performance, and manageability. References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide

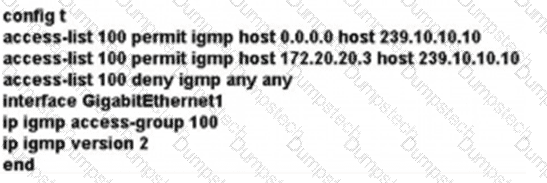

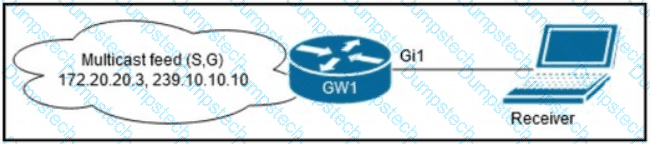

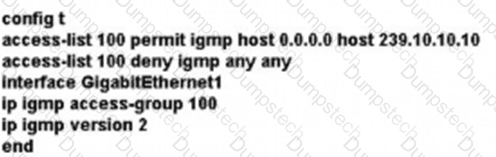

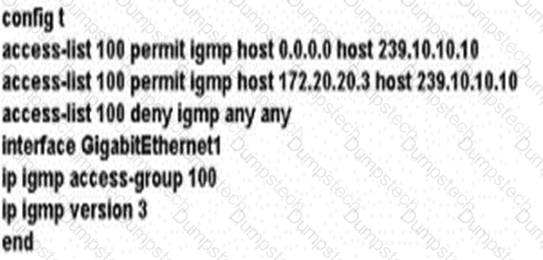

Option A corresponds to the desired configuration. It uses an access-list to permit IGMP joins for the specific multicast group 239.10.10.10 from the source 172.20.20.3.

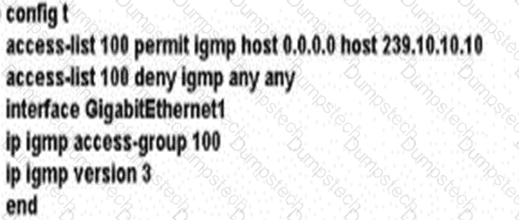

Options B, C, and D do not match the desired configuration. They either allow all IGMP traffic or do not specify the correct source and group addresses.

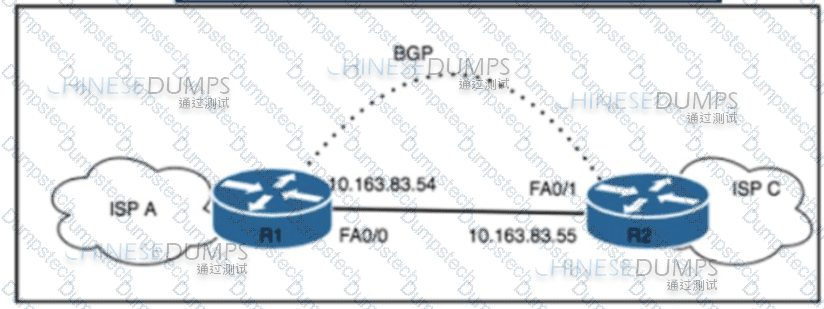

 The Time to Live (TTL) security mechanism is a lightweight security feature that can protect against CPU and memory resource exhaustion due to a denial-of-service (DoS) attack. It works by setting a limit on the number of hops (TTL value) that BGP packets can traverse. By configuring neighbor 10.163.83.55 ttl-security hops 2, ISP A ensures that BGP packets received from ISP C must have a TTL value of at least 254 when they reach R1, as BGP packets decrement the TTL by 1 with each hop. This effectively prevents spoofing attacks from outside the directly connected network because any packets spoofed from further away would have a TTL that drops below the threshold before reaching R1.

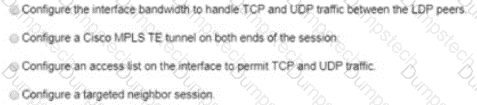

 To configure extended discovery to support the MPLS LDP session between the headend and tailend routers, the engineer must configure a targeted neighbor session. This action allows for the establishment of LDP sessions between routers that are not directly connected, which is necessary for setting up MPLS tunnels that span multiple hops in the network.

References := The concept of targeted LDP sessions is covered in the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) curriculum, which explains how these sessions are used to establish LDP relationships over a non-directly connected interface, facilitating MPLS tunneling for applications like video streaming.

NetFlow provides traceback information by analyzing network traffic. To configure NetFlow for traceback, you need to set up a classification ACL (Access Control List) to identify which type of traffic will be analyzed. This allows NetFlow to focus on specific traffic flows and report relevant information. The classification ACL can be based on various criteria such as source/destination IP addresses, port numbers, or protocols. By defining the classification ACL, you ensure that only the relevant traffic is considered for NetFlow analysis.

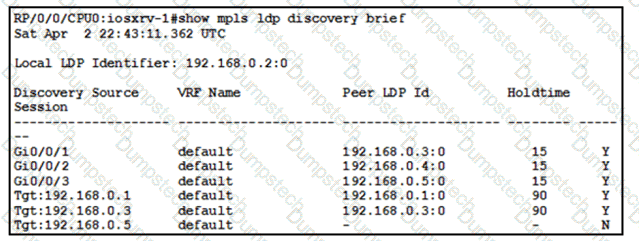

LDP session protection capability is a feature that maintains LDP bindings when a link fails, using LDP Targeted Hellos to protect LDP sessions. Without the specific exhibit, it’s not possible to determine which router has LDP session protection enabled but session hold up is not active.

Cisco Network Services Orchestrator (NSO) acts as a bridge between application or service owners and infrastructure owners, allowing each team to operate in their native environment while still collaborating effectively together. It simplifies service delivery and management by bridging the gap between applications and network devices
