" MSTP is based on RSTP " , so the same port role election and the same root bridge selection. Reference: FortiSwitch 7.6 Study Guide, page 187

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the auto-network setting (configured via config switch auto-network) is a global feature introduced to simplify the initial deployment of switches. Starting inFortiSwitchOS 7.6.0and continuing through7.6, this feature isenabled by defaulton all new and factory-reset units.1

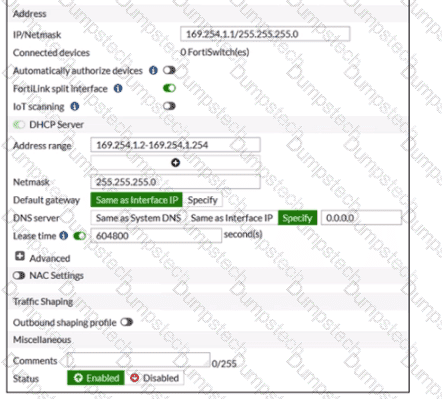

The primary function of theauto-networksetting is to facilitate theautomatic discovery of the FortiGate and the establishment of the FortiLink interface (Option B). When enabled, the switch automatically scans its physical ports to detect a management entity, such as a FortiGate controller. This " zero-touch " discovery mechanism allows the switch to identify the correct uplink ports and automatically configure them as members of theFortiLinkfabric without manual CLI or GUI intervention.

Furthermore, the documentation notes that auto-network also managesauto-topology, which allows two switches to automatically form anInter-Switch Link (ISL)trunk between them.2This includes setting the management VLAN (typically VLAN 4094) and ensuring that DHCP snooping is trusted on these discovered links.3If an administrator intends to use the switch in a strictly standalone mode without any auto-discovery or FortiLink features, the documentation specifies that they must manually disable the auto-network status and the auto-fortilink-discovery global settings to prevent the switch from attempting to join a managed fabric.4

Regarding other options:Option Arefers to Dynamic Port Policy or NAC features.Option Cis a standard STP configuration unrelated to the auto-network discovery suite.Option Dis a broader management capability that depends on successful network discovery but is not the specific control point for the auto-network setting.

The correct statement about using the Switch Port Analyzer (SPAN) packet capture method on FortiSwitch is that " Mirrored traffic can be sent across multiple switches (A). " This feature allows for extensive traffic analysis as it enables network administrators to configure SPAN sessions that span across different switches, thereby providing the capability to monitor traffic across a broad segment of the network infrastructure.

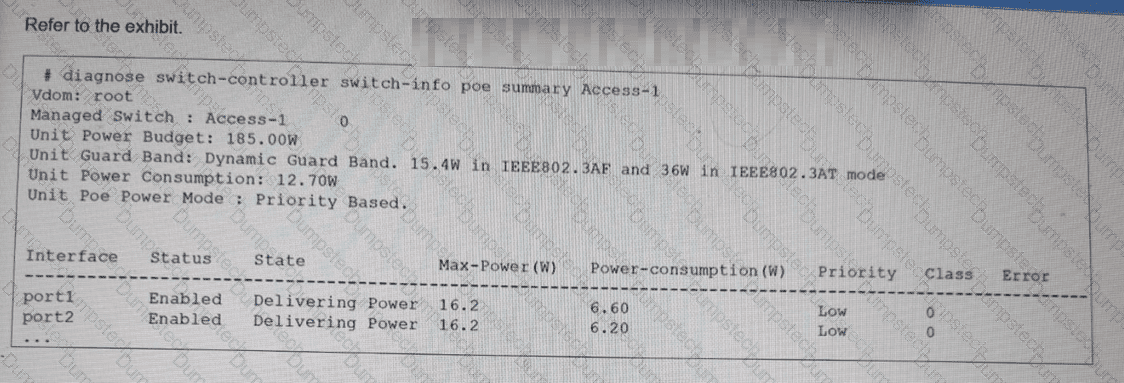

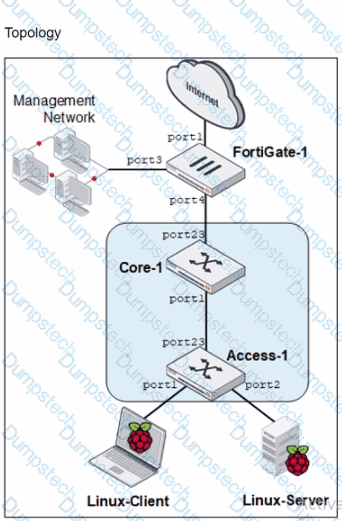

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the primary physical constraint when deploying PoE devices is the total power capacity of the switch ' s internal power supply unit (PSU). The provided exhibit shows the PoE status forAccess-1, highlighting three critical metrics: theUnit Power Budget (185.00W), the currentUnit Power Consumption (12.70W), and theUnit Guard Band.

TheUnit Power Budgetrepresents the maximum amount of power the switch can provide to all connected Powered Devices (PDs) simultaneously. As more devices (such as access points, VoIP phones, or cameras) are connected, the cumulative power draw increases. The most important consideration is ensuring that thetotal PoE consumption does not exceed this budget. If the budget is exceeded, the switch will stop providing power to new devices or, depending on the configuration, may shut down lower-priority ports to protect the system hardware.

In this specific exhibit, theUnit Poe Power Modeis set toPriority Based. This means that if the power consumption approaches the budget limit, the switch will use the configured port priorities (seen as " Low " for port1 and port2) to decide which devices to keep powered. TheGuard Band(set to a dynamic value) also plays a role by reserving a small amount of power to handle spikes when devices initialize, further emphasizing that the power budget is a hard limit that must be actively managed by the administrator.

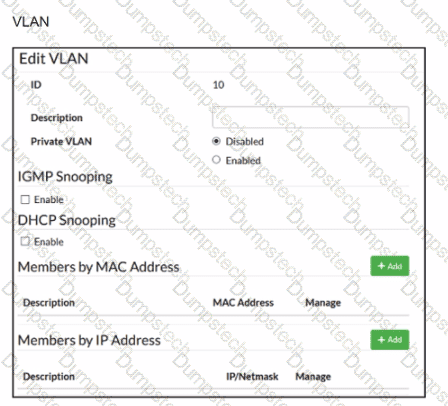

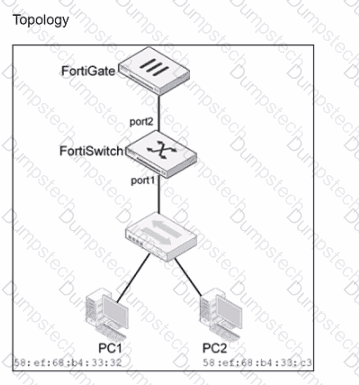

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the way a FortiSwitch handles VLAN tags on egress (outgoing) traffic is governed by the port ' sNative VLANand itsUntagged VLAN list. When traffic for VLAN 10 arrives at port2 (the uplink) and is forwarded to port1, the switch must determine whether to strip the 802.1Q tag before transmission.

Untagged VLAN List (Option B):The documentation explicitly states that the " untagged VLAN list " specifies VLANs for which the port will transmit frameswithout the VLAN tag. By adding VLAN ID 10 to the untagged VLANs on port1, any traffic belonging to VLAN 10 will have its tag stripped at the egress point, ensuring PC1 receives a standard untagged frame.

Configuration Logic (Option C):In FortiSwitch management, moving a VLAN from the " Allowed " list (which typically implies tagged delivery) to the " Untagged " list on a specific interface forces the switch to perform the tag-stripping action. This effectively converts the port from a trunked behavior for that VLAN to an " access " or untagged behavior.

Regarding the incorrect options:Option A (MAC-based assignment)is used primarily foringress classification. While it can assign a device to a VLAN when it sends trafficintothe switch, the documentation notes that by default, egress packets for MAC-based VLANs still include the tag unless the untagged list is configured.Option D(Private VLANs) is a security feature for isolating traffic between ports within the same VLAN and does not address the physical tagging requirements of the endpoint.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6.1 Administration Guide—Standalone Mode, FortiSwitch units support two primary methods for processing Layer 3 traffic: software-based routing and hardware-based routing. To maximize performance, the documentation specifies thatHardware-based routing (Option A)is the superior choice for high-speed environments.

The primary technical reason for this performance advantage is the use ofApplication-Specific Integrated Circuits (ASICs). In hardware-based routing, the routing table and forwarding information are programmed directly into the switch ' s specialized hardware silicon. This allows the FortiSwitch to perform packet lookups and forwarding decisions at " wire speed, " which refers to the full throughput capacity of the physical ports. By offloading these tasks to the ASIC, the switch minimizes latency and prevents the performance bottlenecks associated with general-purpose CPU processing.

In contrast,software-based routing(Options B and D) requires the main system CPU and kernel to process every packet, which is significantly slower and can lead to high CPU utilization during heavy traffic loads. Option C is factually incorrect because hardware-based routing specifically avoids the kernel ' s software path to increase speed. Therefore, for a deployment focused on maximizing routing performance, especially in a backbone or high-density branch environment, utilizing the ASIC-driven hardware forwarding path is the recommended approach in FortiSwitchOS 7.6.

Enable IGMP snooping proxy (C): To reduce the number of unwanted IGMP reports processed by the IGMP querier, enabling IGMP snooping proxy is effective. This feature acts as an intermediary between multicast routers and hosts, optimizing the management of IGMP messages by handling report messages locally and reducing unnecessary IGMP traffic across the network. This minimizes the processing load on the IGMP querier and improves overall network efficiency.
