The correct answers are A and B .

The Network Security Support Engineer 7.6 Study Guide states under OSPF Troubleshooting :

“Follow these steps to troubleshoot an OSPF problem between two peers:

Check that the local router can reach the remote peer. IP addresses must be in the same subnet and have the same subnet mask.

Ensure that IP protocol 89 is not blocked.

Hello and dead intervals must match.

The OSPF router ID for each peer must be unique. Duplicate router IDs are not allowed.

Do the MTUs match?

If authentication is enabled, the type and password must match on both sides.”**

The same page also summarizes the troubleshooting tips as:

“Do peers have an IP address within the same subnet?”

“Is IP protocol 89 blocked?”

This directly confirms:

A is correct

B is correct

Why the other options are wrong:

C is wrong because TCP port 179 is used by BGP , not OSPF. OSPF uses IP protocol 89 , as the study guide explicitly notes

D is wrong because the study guide’s OSPF adjacency troubleshooting checklist does not require an active static route to the peer. OSPF neighbors form adjacency on directly reachable networks, and the guide instead focuses on same subnet, protocol 89, intervals, router ID, MTU, and authentication matching

So the verified answers are: A, B .

To capture encrypted IPsec phase 2 (ESP) traffic between two FortiGate devices, the correct protocol filter to use is ip proto 50. According to the Fortinet official sniffing and debugging documentation, ESP (Encapsulating Security Payload) is used for encrypted phase 2 payload transfer and always uses IP protocol number 50. Running the command diagnose sniffer packet any ' ip proto 50 '  captures only ESP packets, which represent the encrypted traffic—whether originating or transiting the device.

If there is no NAT device between FortiGates, ESP is not encapsulated in UDP (thus not on UDP port 4500; if NAT-T were required, packets would be UDP-encapsulated, but the scenario explicitly says NAT is not in use). UDP port 500 is for IKE control (negotiation) traffic, and AH (Authentication Header, ip proto 51) is not used for encryption in standard IPsec phase 2 with ESP.

This matches the official CLI reference from Fortinet for VPN and traffic analysis.

**

The correct answers are C and D .

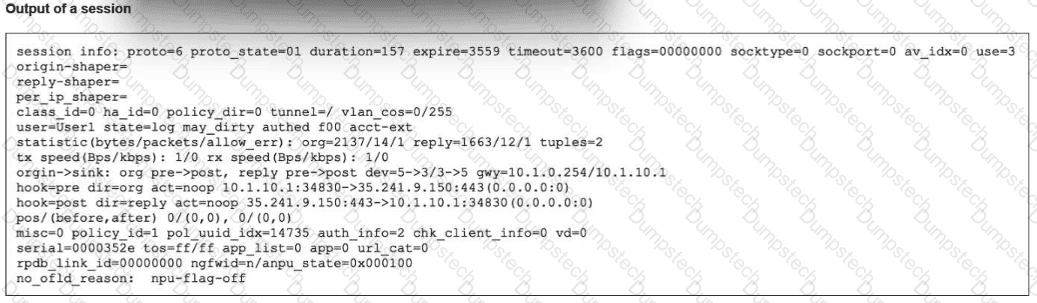

For D , the session output shows proto=6, which means TCP, and proto_state=01. The study guide explains that for TCP sessions, “the first number (from left to right) is related to the server-side state and is 0 when the session is not subject to any inspection (flow or proxy). … The second digit is the client-side state.” It also shows that value 1 = ESTABLISHED

So proto_state=01 means:

first digit 0 = no inspection

second digit 1 = ESTABLISHED

That confirms the TCP session has been successfully established.

For C , the study guide section “Session for an Authenticated User” states: “Any session for traffic coming from an authenticated user contains the authed flag. Additionally, the username is added to the session information.”

In the exhibit, the session contains user=User1 and an authentication state flag (authd), which indicates the session is associated with an authenticated user.

Why the other options are wrong:

A is wrong because the session did match a firewall policy . The study guide says the session output includes “The ID of the matching policy” In the exhibit, the session shows policy_id=1 , so a firewall policy was matched.

B is wrong because the study guide explains the gwy field as:

first value = gateway to destination

second value = gateway to source The exhibit shows gwy=10.1.0.254/10.1.10.1, so:

gateway to destination = 10.1.0.254

gateway to source = 10.1.10.1

So the verified answers are: C, D .

The correct answers are A and B .

The study guide says:

“If NAT-T is enabled, and there is a FortiGate located in the middle that is running NAT, the sniffer command must use a different filter. In this case, IKE traffic uses UDP port 500, but switches to UDP port 4500 during the tunnel negotiation. Additionally, ESP traffic is encapsulated inside the UDP 4500 channel.”

It also says:

“In some networks, UDP is blocked by firewalls or ISPs. In those cases, you can configure your VPN tunnel to use IKE over TCP in the phase 1 configuration. The default IKE TCP port is 443…”

And the study guide gives the correct capture examples:

No NAT: host < remote-gw > and udp port 500

With NAT and NAT-T: host < remote-gw > and (udp port 500 or udp port 4500)

So:

B is correct because with NAT Traversal enabled , the tunnel may no longer be using only UDP 500 . It can move to UDP 4500 , so the current filter may miss the traffic.

A is correct because the filter may need to be expanded to include UDP 4500 for NAT-T, or TCP 443 when IKE over TCP is used.

Why the other options are wrong:

C is wrong because restricting the filter to the remote peer IP can make the capture more precise, but it is not required for the sniffer to display output. The problem here is the port/protocol choice , not the lack of a host filter. The study guide examples use host filtering as an aid, not as a requirement.

D is wrong because diagnose debug enable is used to enable real-time debug output for applications, but it does not suppress or invalidate sniffer output . Sniffer capture is a separate command path. Fortinet documentation separately documents diagnose sniffer packet ... for packet capture and diagnose debug enable for debug features.

So the verified answers are: A, B .

The correct answers are C and D .

The study guide states: “SSL certificate inspection relies on extracting the FQDN of the URL from either: TLS extension server name indication (SNI), SSL certificate common name (CN).” It also says: “When using SSL certificate inspection, FortiGate is not decrypting the traffic. It is only inspecting the server digital certificates and the SNI field, which are interchanged before the encryption.”

This proves the second part of the answer:

under SSL certificate inspection , FortiGate does not decrypt the traffic

therefore, if the traffic is allowed , it still passes without decryption

That makes D correct.

For the SNI mismatch behavior, the FortiOS administration guide describes the default Server certificate SNI check behavior as:

“Enable: If it is mismatched use the CN in the server certificate for URL”

So if the SNI does not match the CN or any SAN, FortiGate falls back to using the CN from the Subject field for URL handling under the default setting. That makes C correct.

Why the other options are wrong:

A is wrong because with the default SNI-check behavior, when the SNI mismatches the certificate identity, FortiGate does not continue using the mismatched SNI . Instead, it uses the CN in the server certificate for the URL .

B is not the best answer in this single pair selection . While certificate inspection does not decrypt traffic, the key default behavior the documents explicitly highlight for this mismatch case is:

use the CN when SNI mismatches , and

certificate inspection does not decrypt allowed HTTPS traffic .

So the verified answers are: C, D .

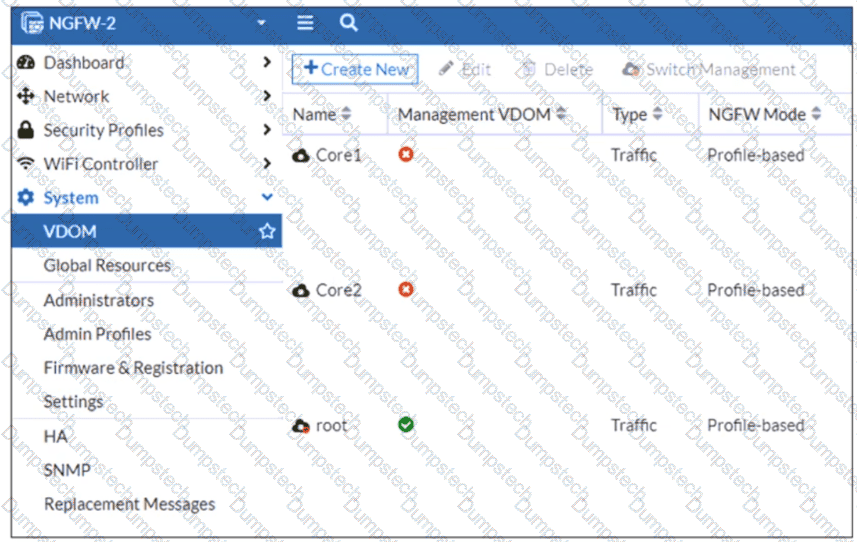

The exhibit identifies the root VDOM as the management VDOM, indicated by the green check mark. The Enterprise Firewall 7.6 Administrator Study Guide explains that the management VDOM handles FortiGuard database downloads, license validation, and FortiGuard rating connectivity on behalf of the entire FortiGate system. It states that FortiGuard updates obtained through the management VDOM “will affect all VDOMs.”

Consequently, the root VDOM must reach either a public Fortinet Distribution Network server or a FortiManager configured as a FortiGuard Distribution Server in an isolated environment. The guide specifically identifies connectivity to “a FortiManager serving as a FortiGuard Distribution Server (FDS) in a closed network” as the alternative to public FortiGuard access. Loss of both paths prevents Core1 and Core2 from using current FortiGuard web-filtering information. Therefore, options A and B are correct.

Core1 and Core2 do not need to become management VDOMs; FortiGate uses one designated management VDOM for these system-level services. A VDOM link is used to route user traffic between VDOMs and is not required for distributing FortiGuard services, eliminating option D.

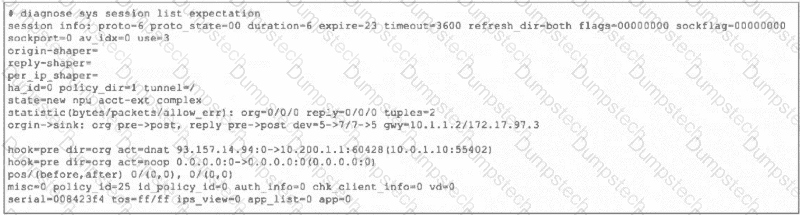

The study guide identifies this exact output as an expectation session created by the FTP session helper :

“run helper-ftp” indicates the FTP helper is in use.

“FortiGate created an expectation session and opened the pinhole port for the expected return traffic”

It also explains why this exists:

“Another important function of the session helper is to temporarily create an expected session (or pinhole) for the data channel connection that comes from the server.”

“The session helper automatically creates the session and opens the door for the incoming connection.”

“These incoming TCP sessions use random TCP port numbers.”

That directly proves C is correct.

For A , the exhibit shows expire=23. The study guide explains the expire field as the length of time until the session expires if no matching traffic arrives, and the FortiOS guide states for expectation sessions:

“Expectation sessions usually have a timeout value of 30 seconds. If the communication from the server is not initiated within 30 seconds the expectation session times out and traffic will be denied.”

So with expire=23, FortiGate will allow that expected traffic only for the remaining 23 seconds; after that, it times out and the traffic is denied. That makes A correct.

Why the other options are wrong:

B is not supported . The study guide describes expectation sessions as being created by the session helper from the control-session negotiation, not as independent objects unaffected by the master session.

D is wrong as stated. Even though the output contains policy_id=25, the study guide explicitly says the incoming expected connection is allowed by the expected session itself, “even when no firewall policy allows it.”

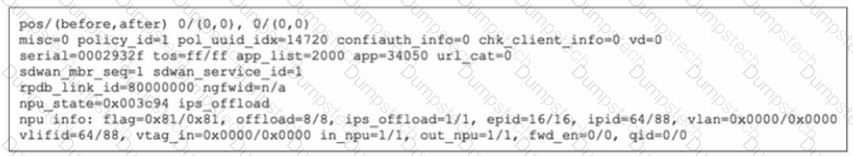

The correct answers are B and C . The session table output clearly shows policy_id=1 , which means the traffic matched firewall Policy ID 1 . That directly validates option B . The output also shows NPU-related offload indicators, including npu_state=... ips_offload and npu info: ... offload=8/8, ips_offload=1/1 . These fields indicate that the session has been offloaded to hardware, so option C is correct. The study guide explains that FortiGate can offload sessions to network processors after session establishment, allowing subsequent packets to bypass normal CPU/kernel processing for improved performance. It also states that offloaded sessions are handled by the network processor rather than the CPU path.

Option A is too specific and is not proven by the exhibit. The output shows NPU offload, but it does not explicitly identify the hardware as NP7. Do not assume NP7 unless the platform or output confirms it. Option D is wrong because the VLAN-related fields show vlan=0x0000/0x0000 and vtag_in=0x0000/0x0000, which means the traffic is not VLAN-tagged.
